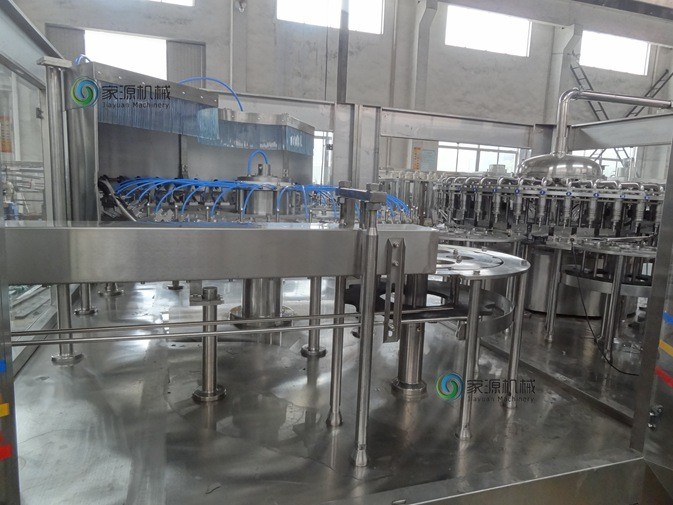

RCGF40-40-12 Coffee Filling Machine 20000BPH For 0.5L PET Bottle

RCGF40-40-12 Coffee Filling Machine 20000BPH For 0.5L PET Bottle

RCGF40-40-12 Coffee Filling Machine 20000BPH For 0.5L PET Bottle

Product Details:

Place of Origin: China Mainland
Brand Name: Jiayuan
Certification: CE,SGS
Model Number: RCGF40-40-12

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 85000USD
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 15 sets/month
Contact Now
Detailed Product Description
Application: Juice|Mineral Water Automatic Grade: Automatic
Bottle Type: PET Driven Type: Electric
Feature: Aseptic Product Name: Hot Filling Machine
High Light:

Liquid Filling Machine


automatic filling machine

RCGF40-40-12 Coffee Filling Machine 20000BPH For 0.5L PET Bottle



Quick Detail:


  1. Model: RCGF40-40-12
  2. Capacity: 18000-20000BPH@0.5L bottle
  3. Seller: Jiayuan
  4. Full automatic, No bottle no filling, No cap machine stop.
  5. Customizable
  6. Designed applicable bottle: 0.2L-2L round PET bottle
  7. Designed applicable cap: plastic screw cap.
  8. Easy operate for changing different bottle volume.
  9. Application: Juice, energy drink, tea beverage etc. hot filling.
  10. 1 Year warranty
  11. CE & SGS Certificate
  12. Juice Bottling Filling Machine

Automatic SS304/316 20000BPH RCGF40-40-12 Juice Bottling Filling Machine RFC 3-in-1 Monoblock







Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.


Rinsing machine adopts original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.


Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.




The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm.

The filling valve material is SUS304

The filling system has liquid level automatic control.

Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck ,it start to fill.

Bottle is conveying by the wheel in the filling part.

The juice or other hot beverage can be backflow by return tank to control filling temperature.



Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.

Equipment structure

  • Base
  • Rotary rinsing unit
  • Rotary filling unit
  • Rotary capping unit
  • Bottle feeder and outlet system
  • Control system


Main configuration


  • Touch screen: WEINVIEW
  • PLC program controller: Mitsubishi
  • Inverter: Mitsubishi
  • Photoelectrical controller: Omron
  • Proximity switch: Omron
  • Other electrical components: Schneider
  • Pneumatic component: Airtac
  • Water pump: Nanfang
  • Main motor: Siemens
  • Bearing: Harbin





1. Juice filling with normal(20-30℃), middle(50-60℃) or high temperature(85-95℃)

2. Pure water/mineral water/portable water

3. Tea beverage

4. Energy drink









Suitable Bottle:

Height: 150-310(mm)

Diameter: φ50-φ92(mm)

Suitable Cap:

Plastic Screw Cap

Filling Pressure:










Competitive Advantage:


  1. Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
  2. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
  3. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
  4. Sanitary filling head system is of umbrella structure, high filling speed.
  5. Recirculation tank system has the function of supplying the material automatically.
  6. Perfect filling temperature control system.
  7. Perfect CIP system.
