Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jiayuan |
Certification: | CE SGS |
Model Number: | RCGF |
Minimum Order Quantity: | 1 set |
---|---|
Packaging Details: | Wooden case is our usual practice, we can also pack as our customer's requirement |
Delivery Time: | 25 work days |
Supply Ability: | 5 Set/Sets per Month |
Dimension: | 2200X2100X2200MM | Weight: | 2500kg |
---|---|---|---|
Compress Air: | 0.6m³/min | Weight Accuracy: | With An Error≤±1% |
Voltage: | 220V | Function: | Bottle Washing Filling Capping |
High Light: | Capsule Packing Hot Filling Machine,500ml Capsule Hot Filling Machine,PE Screw Cap Hot Filling Machine |

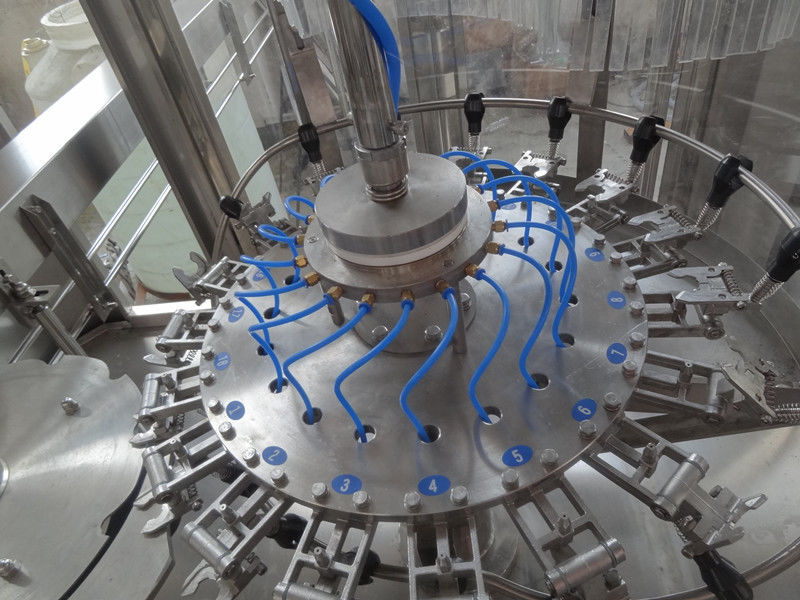

Silver stainless steel 3 in 1 Hot Filling Machines For Flavored Water 2200 X 2100 X 2200MM
Our Services
Pre-Sales Service
1) Providing custom-designed packaging solutions for customers to meet their unique product packaging requirements.
2) Answering questions for customers and give professional advice and suggestions.
3) Provide video, drawings or schematics to facilitate customers to understand the working process of the machine or the whole system.
4) Sample testing for customers. If it is inconvenient for customers to send samples, we will buy the same or similar products from the Chinese market for testing, and videos will be taken.
5) Customers visiting our factory.
6)After the order is successfully placed, we will track the logistics transaction information for you every 6 hours in real time
After-Sales Service
1) Cooperating customers' third-party company to do the inspection before shipment.
2) Help customers and cooperate with customers' forwarding agency to arrange the shipping and do documents preparation for the export procedures and destination customs clearance.
3) Training how to install the machine, training how to use the machine.
4) Engineers available to service machinery overseas.
5) When problems occur in the process of machine using.we timely provide customers with solutions explaining in words, by pictures or videos.
6)Provide one year free warranty on important parts
Parameter:
model: | RCGF12-12-4 | RCGF 16-16-6 | RCGF 18-18-6 | RCGF 24-24-8 | RCGF 32-32-10 | |
Capacity: BPH 500ml |
2000-3000 | 3000-5000 | 5000-8000 | 8000-12000 | 12000-15000 | |
Bottle shape: | roud or square | |||||
PET bottle: (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
Cap: | PE srew cap | |||||
Filling precision: | ≤±5mm | |||||
Filling pressure:(Mpa) | 0.15-0.35 | |||||
Rinsing pressure:(Mpa) | 0.2-0.2 | |||||
Motor power: (kw) | 3 | 3 | 4.5 | 5.5 | 6.5 | |
Overall size:(mm) | 1850*1600 *2350 |
2100*1800 *2350 |
2400*2150 *2350 |
3800*2950 *2400 |
3800*2800*2650 | |
Weight: (kg) | 2500 | 2800 | 3500 | 4500 | 5500 |
First of all, before we operate Automatic Particles beverage/ fruit juice/water filling machine, to clearly understand the instructions clearly Automatic Particles beverage/ fruit juice/water filling machine, first read through the instructions again, adjust and use the familiar Automatic Particles beverage/ fruit juice/water filling machine , the operating time must be in strict accordance with the instructions to Automatic Particles beverage/ fruit juice/water filling machine instructions , pay attention to details of the problem , certainly the details determine success or failure
Secondly, in accordance with the instructions on the machine for regular repair and maintenance of the Automatic Particles beverage/ fruit juice/water filling machine fuselage Oil it , so Automatic Particles beverage/ fruit juice/water filling machine body as far as possible to protect the reservoir , so that the air can be isolated to avoid Automatic Particles beverage/ fruit juice/water filling machine rusty , well protected Automatic Particles beverage/ fruit juice/water filling machine body, and this is a way to extend the life of the 3 in1 filling machine .
Once again, we have to pay attention to hot stand -sealing cloth for cleaning, not retained foreign body in the above , to ensure clean Automatic Particles beverage/ fruit juice/water filling machine try to avoid the amount of material for a long time into the mouth of the left cause corrosion .
Fourth, we should always check the machine to see contacts at various parts of the machine is good, important to ensure safe use of electricity, no electricity properly to prevent harm.
Fifth, if found faulty , we have to turn off the power , when necessary, by pressing the emergency stop button , and then deflated lift cover, and then close the voltage , check the reason , and troubleshooting.
Our machine has been sold to more than 40 countries,almost of the customers are satisfiedwith the machines and our service.
Company Information
Jiayuan company was established in1997,and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry.we have such as CE,ISO etc certification.we are a company integrating scientific research,production and service,and have the best manufacturing facilities and production process,professional staffs,imported facilities of concentration distill series,automatic CIP series,PLC control etc.Now we have been a market leader in the Chinese food machinery industry.The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies.It has comprehensive development capacity and sound quality assurance system,and has made R&D achievement and obtained invention patents.Our machinery are widely sold in China,and exported over 20 countries,adn gained favorable feedback from users.Our major engineering projects include complete dairy products production line,beverage production line,biochemical engineering production line.
Pls contact me and let's talk more details, thanks in advance!
