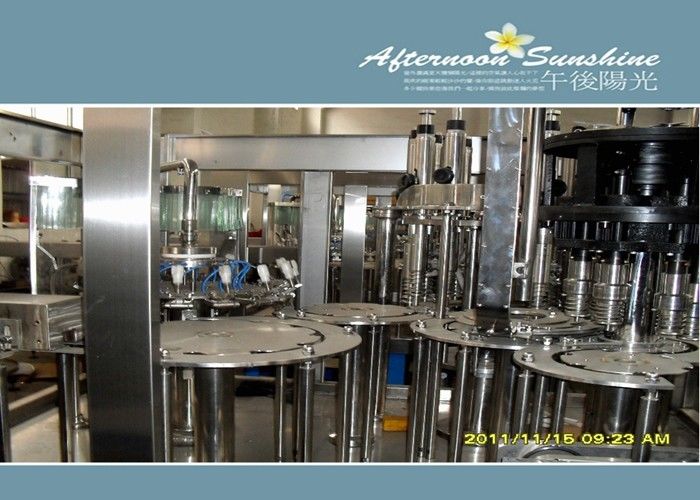

Beverage Hot Filling Machine 3 In 1 Monoblock Rotary Filling Machines

Beverage Hot Filling Machine 3 In 1 Monoblock Rotary Filling Machines

Beverage Hot Filling Machine 3 In 1 Monoblock Rotary Filling Machines

Product Details:

Place of Origin: China Mainland
Brand Name: Jiayuan
Certification: CE,SGS
Model Number: RCGF16-12-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Application: Juice|Mineral Water|Beverage Automatic Grade: Automatic
Bottle Type: PET|Round Bottle Capacity: 4000bph
Feature: Aseptic Product Name: Bottle Filling Machine
High Light:

Beverage Monoblock Rotary Filling Machines

,

3 In 1 Monoblock Rotary Filling Machines

,

4000bph Rotary Filling Machines



Beverage Hot Filling Machine 3 in 1 Monoblock Rotary Filling Machines



This is a intelligent filling machine ,suitable for filling different materials,no matter high viscosity liquid or non-viscosity liquid. The whole machine is a straight-line mechanism, which uses servo motor to drive filling and volumetric metering to realize high precision of filling dose. Can change bottle types quickly. The biggest feature of this machine is that can be automatically removed cylinder to clean it quickly!


Automatic SS304/316 RCGF16-12-6 Juice Filling Machine RFC 3-in-1 Monoblock Hot Filling Machine



Description:

1. High efficient hot filling machine/filler range from 1000bph to 20000bph, can apply to juice, tea, sport drinks, function drinks, etc.

2. Rinsing / Filling / Capping 3-in-1 Monoblock

  • Size of bottle: 200ml-2000ml round PET bottle.
  • Cap type: 28~38mm standard plastic screw caps
  • Method of bottle transferring: By holding neck
  • Products: Tea/juice/energy drink/milk beverage.



Structure:

- Base

- Rinser

- Filler

- Capper


(1). Rinser

Beverage Hot Filling Machine 3 In 1 Monoblock Rotary Filling Machines 0
Rotative rinsing turret one treatment, fixed nozzles, with grippers.
The grippers take the bottles from the inlet starwheel while they are still driven by the starwheel, thus guaranteeing a safe grip.
After the gripping, the bottle is turned upside down and centred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.


 (2). Filler

Beverage Hot Filling Machine 3 In 1 Monoblock Rotary Filling Machines 1
The starwheel drive the bottles always "by holding bottle neck" through the rinsing, filling and capping steps. For different types of bottle, it is easy to adjust the structure by our specialized design.
Product bowl can reduce the loss of heat. If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recirculation tank and be pumped return to UHT again to be sterilized and heated.




(3). Capper

Beverage Hot Filling Machine 3 In 1 Monoblock Rotary Filling Machines 2

Rotative capping turret, suitable to the application of plastic screw caps on PET bottles

The fixed part consists of the cap-sorting bowl, the cap feeding elevator with relevant motor and the cam actuating the capping heads.

The heads are raised and lowered by the action of a follower that is riding on a shaped cam.





Applications:

Beverage Hot Filling Machine 3 In 1 Monoblock Rotary Filling Machines 3

1. Juice filling with normal(20-30℃), middle(50-60℃) or high temperature(85-95℃)

2. Energy drink

3. Tea beverage

4. Pure water/mineral water/portable water



Specifications:

Model

RCGF16-12-6

Capacity:500ml

2000-4000b/h

Suitable Bottle:

Height: 150-310(mm)

Diameter: φ50-φ92(mm)

Suitable Cap:

Plastic Screw Cap

Filling Pressure:

0.6Mpa

Power

5.88kw

Size

2400×1670×2350mm

Weight

2500kg





Competitive Advantage:

  1. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
  2. Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent.
  3. Sanitary filling head system is of umbrella structure, high filling speed.
  4. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
  5. Recirculation tank system has the function of supplying the material automatically.
  6. Perfect filling temperature control system.
  7. Perfect CIP system.
