SGS Touch Screen Carbonated Beverages Filler Machines For Sparkling Water

SGS Touch Screen Carbonated Beverages Filler Machines For Sparkling Water

    • SGS Touch Screen Carbonated Beverages Filler Machines For Sparkling Water
    • SGS Touch Screen Carbonated Beverages Filler Machines For Sparkling Water
    • SGS Touch Screen Carbonated Beverages Filler Machines For Sparkling Water
    • SGS Touch Screen Carbonated Beverages Filler Machines For Sparkling Water
  • SGS Touch Screen Carbonated Beverages Filler Machines For Sparkling Water

    Product Details:

    Place of Origin: CHINA, MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: DGCF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 22000 SET
    Packaging Details: WOODEN
    Delivery Time: 15WORK DAYS
    Payment Terms: T/T
    Supply Ability: 15 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Product Name: Washing, Filling Capping Machine DCGF Color: Silvery White
    Volatge: 220v/380v Warranty: 1year Free
    Driven Type: Electric Automatic: Fully Automatic

    touch screen carbonated beverages filler/carbonator for sparkling water





    Description:

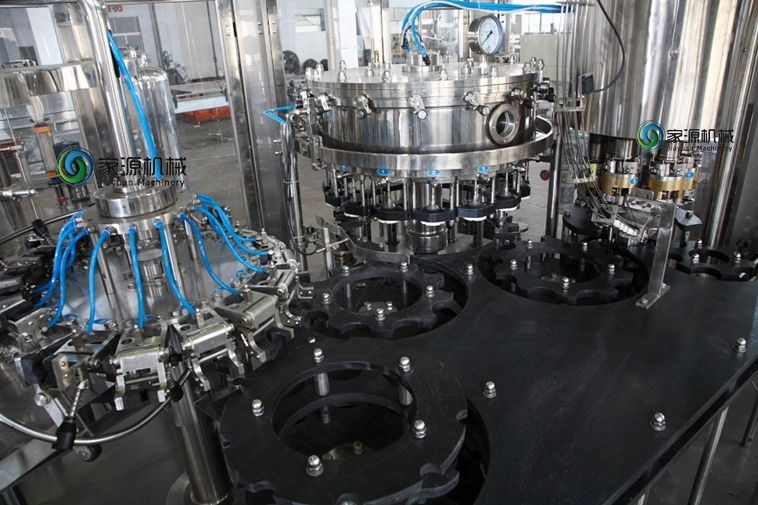

    This machine is comprised of rinsing, filling and capping system.

    Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely.

    Filling: counter pressure filling with holding bottle neck.

    Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.



    This machine owns the reasonable, stable and safe design.Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.





    Parameter



    Model DGCF18-18-6 DGCF24-24-8 DGCF32-32-10
    Production Capacity(B/H) 4000-6000 6000-8000 8000-12000
    Filling Precision ≤5mm(Liquid Level)
    Filling Pressure(MPa) <0.4
    Polyester Bottle Satandard(mm) Bottle Diameter: φ50-φ100 Height:150-320
    Suitable Cap Shape Plastic Screw Cap
    Water Pressure of Washing Bottle(MPa) 0.18-0.25
    Water Consumption for Washing Bottle(kg/h) 2000 2500 3000
    Spraying Position 5 6 12
    Dripping Bottle Position 3.0 3.5 7
    Gas Source Pressure(MPa) 0.4
    Gas Consumption(m³/min) 0.4 0.4 0.5
    Total Power(kw) 5.03 6.57 8.07
    Total Weight(kg) 3000 4000 5000
    Dimension(L*W*H)(mm) 2450*1800*2200 2750*2180*2200 3600*2200*2600




    Bottle washing machine



    Bottles are bellowed into bottle shifting wheel by air conveyor, and when the flushing clamp reaches the position of bottle neck, the jaw will hold the bottleneck. Under the guide of leading rail, the bottle will be overturned to 180°into an up-right position, and then transmitted into filling position by secondary bottle shifting wheel.





    The Filling Part is mainly composed of the filling valve, the switch valve and filling transmission components. The finish-washed bottle is conveyed to filling position by the bottle shifting wheel. At the same time, the valve-opening mechanism will open the filling valves, which with bottle on it, to fill gas in it and then the machine begin to fill liquid.



    The capping part is composed of 3 sets of screw head, capping transmission part, cap unscrambler, under cover tube and sleeving cover part. Filled-finish bottle will be conveyed to the capping position by the bottle shifting wheel. When the bottle passes the sleeving cover device, the bottle mouth can hung on the cap on the cap output part. And the cap from the sleeving cover will be sleeved on the bottle mouth, and then be planished by the tongue depressor.





    Certifications



    Company Information


    Zhangjiagang Jiayuan Machinery Co., Ltd. is located in Zhangjiagang city, which is near to Shanghai. We professionally research, develop and manufacture beverage packaging machines. We are a high technology enterprise of Jiangsu Province, and the best supplier of China beverage packaging machinery area. We are dedicated to the most advancement technology of beverage packaging machinery, and have always been conducting good up-to-date technical communication and exchange with leading Italy, Germany, France packaging companies. We have a strong technology team for beverage packaging machines’ manufacture. We provide marketing analysis, project budget, equipment technical configuration, and training for operator etc.





    Service



    Quality Guarantee

    We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

    Aftersales

    1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures.



    2,After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.



    Packaging & Shipping





    Advantages


    We offer professional turnkey project from design till done of the whole project.

    1.Project consultation

    2.Design

    3.Factory building

    4.Installation

    5.Commissioning

    6.Training

    We can provide beverage filling line as below:

    1. Complete pure/mineral water production line

    2. Complete pure/mineral water treatment machine

    3. Complete juice production line

    4. Complete carbonated beverage production line

    5. 5 Gallons drinking water production line.
