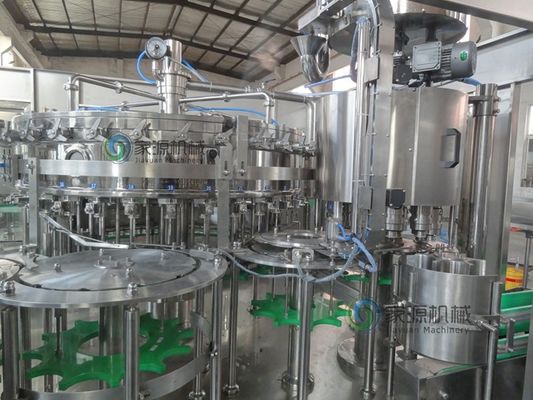

Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap

Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap

    • Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap
    • Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap
    • Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap
    • Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap
    • Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap
    • Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap
  • Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap

    Product Details:

    Place of Origin: China
    Brand Name: Jiayuan
    Certification: CE, SGS
    Model Number: BDCGFC32-32-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 45000-59000/SET
    Packaging Details: Wooden case, inside wrapped by film
    Delivery Time: 45 working days
    Payment Terms: L/C, T/T
    Supply Ability: 5 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Application: Carbonated Drinks In Glass Bottle With Crown Cap Capacity: 8000BPH/500ml
    Customizability: Customizable Suitable Cap: Crown Cap
    Driven Type: Electric And Pneumatic Filling Type: Isobaric
    Automatic Grade: Full Automatic Overall Dimensions: 3900*2200*2250mm
    Weight: 5500KGS HS Code: 8422301090
    High Light:

    glass bottling machine

    ,

    small bottle filling machine

    Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap



    Quick Detail:



    1. Capacity: 8000 bottles per hour based on 500ml bottles
    2. Pure water rinser, filler, capper 3-in-1 monoblock
    3. Fully automatic, no bottle no filling, no cap machine will stop.
    4. CE, SGS certificate
    5. Designed power supply: AC/380V/50HZ/3PHASE
    6. Customizable

    Description:



    (1). The 8000BPH Automatic Carbonated Drink Glass Bottle Filling Machine with Crown Cap is mainly used in the carbonated drinks and beer filling operations. The three functions of bottle washing, filling and capping are composed in one monoblock. The whole process is full automatic.  The first rinsing machine is pure water rinsing machine, the bottle will be cleared after the rinsing machine.

    (2). The Glass Bottle Carbonated Beer Drink Filling Machine is used for filling carbonated drinks in glass bottles. The machine can also be used for glass bottle beer filling. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

    (3). The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

    (4). The advanced MITSUBISHI/SIEMENS programmed controller (PLC) is adopted to control the machine to run automatically while a inverter is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

    (5). It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity.

    (6). The Pneumatic membrane valve is adopted in this machine, it can make sure the carbonated soft drink inlet steady, avoiding the foaming problem.



    Application



    This 8000BPH Automatic Carbonated Drink Glass Bottle Filling Machine with Crown Cap can be used for filling carbonated liquid beverage into glass bottles and crown caps.

    1. Glass bottle carbonated drinks with crown caps
    2. Beer in glass bottles with crown caps
    3. Carbonated wine in glass bottles with crown caps





    Specifications:



    Model:

    BDCGFC32-32-10

    Capacity:500ml(b/h)

    8000BPH

    Suitable Bottle Height(mm)

    130-280

    Suitable Bottle Body Diameter(mm)

    Φ40-φ105

    Suitable Cap Shape

    Crown cap

    Power: (KW)

    8KW

    Filling Temperature:

    0-5 Degree

    Water Consumption for Washing Bottle(kg/hr)

    1500

    Gas Consumption(m3/min)

    0.3

    Size L×W×H (mm)

    3900*2200*2250mm

    Total Weight:(kg)

    5500

    Power Supply

    380V/50HZ





    Competitive Advantage:

    1. The three functions of bottle washing, filing and capping are composed in one body of the machine.
    2. The whole process is automatic, no bottle no filling, no cap, machine will stop.
    3. So this machine has three steps, first is washing, second is filling, third is sealing the bottle with crown cap.
    4. Low power consumption, better material SUS 304/SUS 316.
    5. Small size, simple structure, run stable, low investment.
    6. Auto complete line, save labour cost.

    Photots



    Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap 0

    Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap 1Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap 2Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap 3Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap 4

    Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap 5

    Carbonated Drink Automatic Glass Bottle Filling Machine 8000BPH with Crown Cap 6
