Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant

Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant

    • Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant
    • Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant
    • Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant
    • Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant
    • Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant
  • Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE SGS ISO
    Model Number: CGF16-16-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $15,000 - 800,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 work days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Driven Type: Electric Voltage: 380V 50Hz,three Phase
    Control System: PLC Control+Touch Screen Bottle Type: PET Plastic Bottle
    Capacity: 3000BPH Bottle Volume: 5L
    Weight: 3500kg Filling Material: Flowing Liquid



    Monoblock 5L Plastic Bottle Distilled Drinking Water Bottling Plant Germany Sale


    Usage: washing, filling and capping 3 in 1 monoblock is used for filling liquid into PET bottle. Full automatically; it can finish washing (bottle), filling and capping three jobs in the one machine.

    Features
    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
    2. Bottles transmission adopt clip bottleneck technology, anna com bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

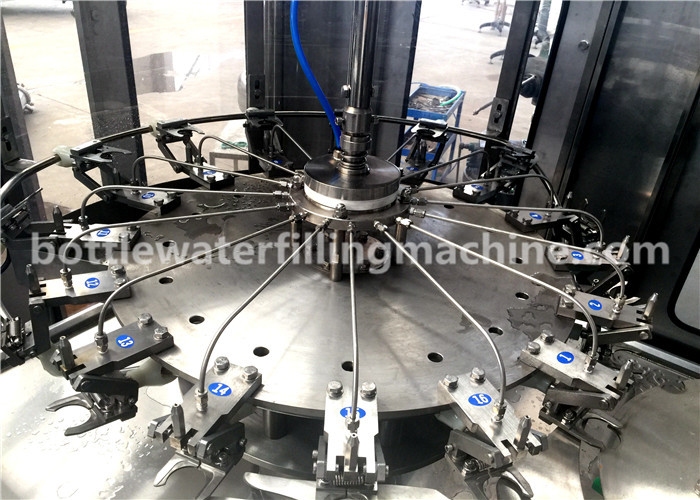

    3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
    4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
    5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
    6. Super-low star wheel structure can highly improve the strength of the whole machine.
    7. Central greasing oil system can grease all bearings easily.
    8. Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for longlife. You can also adjust the capping rounds according to different caps by adjusting gears below.
    9. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.

    Main configuration
    Main motor ---- Zhejiang
    Speed reducer ---- Hangzhou company
    Liquid feedback pump and spraying pump ---- domestic brand
    Touch screen ----Taiwan Weinview company
    PLC control ---- Mitsubishi, Japan
    Inverter Mitsubishi ---- Japan
    Contact switch, photoelectric switch ----DELIXI
    Optoelectronic switch ---- DELIXI
    Cylinder, the electromagnetic valve ect ----Taiwan Weinview Company
    Mineshaft bearing ---- Harbin bearing company
    Capper bearings ---- Harbin bearing company
    The part that contact with liquid material will all 304SS.

    Video show https://www.youtube.com/watch?v=Lr1YHsi1D5A&feature=share

    Technical parameter

    Model CGF16-16-5
    Production capacity(5L)(b/h) 3000
    Washing heads 16
    Filling heads 16
    Capping heads 5
    Filling precision ≤±5MM(Liquid Level)
    Suitable cap shape Plastic Screw Cap
    Gas source pressure(Mpa) normal pressure
    Compressed air(Mpa) 0.5-0.6Mpa
    Main motor power(kw) 2.2

    Spraying pump power(kw)

    0.55

    Liquid feedback pump(kw)

    0.55

    Water consumption

    1.5T/h

    Weight(kg)

    3600
    Dimension(L*W*H)

    3500*2200*2250mm


    Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant
    Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant
    Monoblock 5L Plastic Bottle Filling Machine Distilled Drinking Water Bottling Plant
