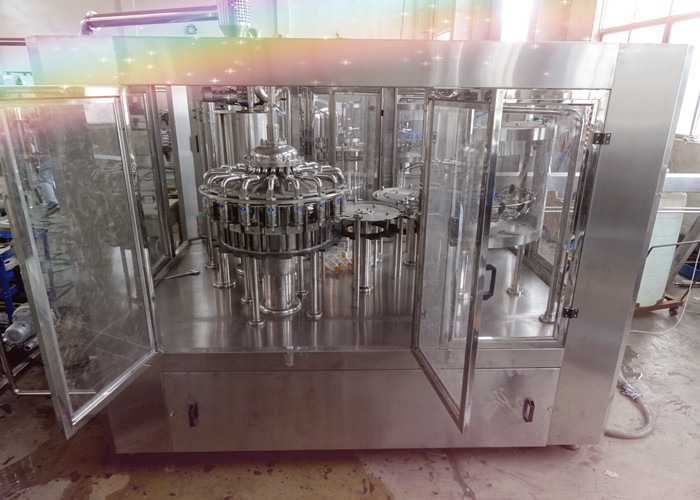

Creative Fruit Juice Filling Machine / Juicer Machine Fully Automatic Grade

Creative Fruit Juice Filling Machine / Juicer Machine Fully Automatic Grade

    • Creative Fruit Juice Filling Machine / Juicer Machine Fully Automatic Grade
    • Creative Fruit Juice Filling Machine / Juicer Machine Fully Automatic Grade
    • Creative Fruit Juice Filling Machine / Juicer Machine Fully Automatic Grade
    • Creative Fruit Juice Filling Machine / Juicer Machine Fully Automatic Grade
    • Creative Fruit Juice Filling Machine / Juicer Machine Fully Automatic Grade
  • Creative Fruit Juice Filling Machine / Juicer Machine Fully Automatic Grade

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: jiayuan
    Certification: CE,ISO,SGS
    Model Number: RCGF24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $15,000 - 800,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 work days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Type: Filling Machine Application: Beverage, Food
    Automatic Grade: Automatic Driven Type: Electric
    Power: 7.68kw Dimension(L*W*H): 2750*2180*2200mm
    After-sales Service Provided: Engineers Available To Service Overseas Control System: PLC Control
    Warranty: One Year For Free Material: Food Grade Stainless Steel 304
    Filling Capacity: 10000BPH(500ml)

    Creative fruit juice filling machine/juicer machine automatic grade

    Specifications:
    Zhangjiagang fruit juice making machine juice filling machine with CAD drawing
    This hot filling equipment adopts bottle neck holding transmission technology to realize fully automaic rinsing,filling and capping.It is equipped with perfect temperature control system,reverse-flow system,automatic cleaning system and control program.Each machine element that contacts with the liquid is made of high quality stainlesssteel and food-grade rubber.
    1) Feature
    Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
    • Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
    • Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.
    • Sanitary filling head system is of umbrella structure, high filling speed.
    • Perfect filling temperature control system.
    • Reflux tank system has the function of supplying the material automatically.
    • Perfect CIP system.
    • To realize stable running, convenient for maintenance and long life, all the electric and pneumatic components are from world famous manufacturer. Example, PLC from OMRON, transducer from MITSUBISHI, pneumatic components from FESTO, switch from TURCK, motors from SEW or ABB, touch screen from DIGITAL, etc
    ModelRCGF24-24-8
    Productivity10000BPH
    Rinsing Head24
    Filling Head24
    Capping Head8
    Bottle Volume350ml~2000ml±10ml
    Bottle Diameterφ50-92mm
    Bottle Height150-310 mm
    Filling Tolerance±2%
    Cap Size28mm and 30mm PE Standard Caps
    Air Pressure0.6MPa
    Air Consumption500 L/min
    Gas Consumption0.4 m3/min
    Motor Power7.68kW
    Voltage380V
    Dimension(L×W×H) 2750*2180*2200mm
    Weight5300kg
    Filling PrincipleGravity Filling

    Creative Fruit Juice Filling Machine / Juicer Machine Fully Automatic GradeCreative Fruit Juice Filling Machine / Juicer Machine Fully Automatic GradeCreative Fruit Juice Filling Machine / Juicer Machine Fully Automatic Grade

    Our Services

    1.One year warranty for the whole system.
    2.Free equipment installation and debugging.
    3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
    4.We can provide internship service and help you train the operator and mechanic.
    5.Free beverage production technology and process configuration.
    6.We can help you to design the product line, workshop and provide turn-key project.
