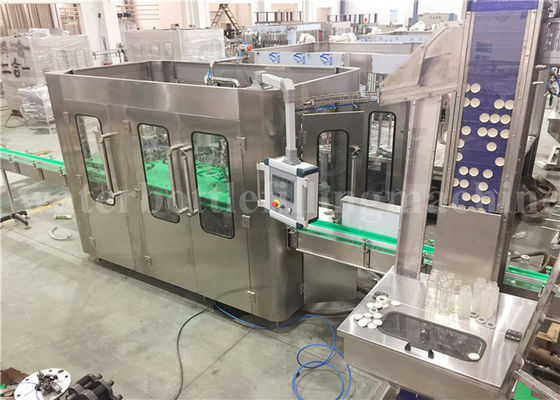

Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH

Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH

    • Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH
    • Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH
    • Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH
    • Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH
    • Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH
    • Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH
  • Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jiayuan
    Certification: CE ISO SGS
    Model Number: CGF8-8-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: $6,000-20,000 / Set
    Packaging Details: Plastic film wrapping,wooden boxes packaging
    Delivery Time: 30 working days
    Payment Terms: L/C, T/T
    Supply Ability: 15 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Driven Type: Electric Warranty: One Year For Free
    Bottle Volume: 200ml-1000ML Filling Temperature: Room Temperature
    Weight: 2000kg Material: Stainless Steel 304
    Voltage: 380V/50Hz Power: 4.23kw



    Small Juice Filling Machine Production Line / Automatic Juice Bottling Machine 2000BPH



    Description

    The machine used for glass bottle washing filling capping ,suit for fruit juice, fruit wine and so on. The liquid filling technology of gravity which learned from latest technology from Japan and Germany is used in the design.the whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. The machine will be stopped automatically. When bottles are cramped wrongly or when caps are not available



    You can click the below picture to see the video.

    Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH

    https://www.youtube.com/watch?v=6hucff2X4Nc&feature=share





    Features:

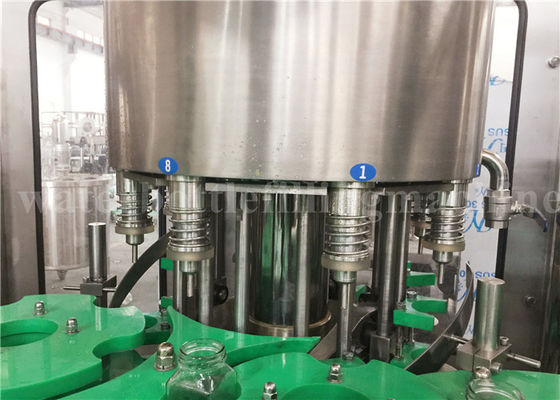

    1. High speed filling valve, guarantees liquid has precise level and no waste is incurred

    2. The advanced programmed controller (PLC) is adopted to control the machine to run automatically.

    3. It integrates bottle washing, filling and capping into one body of this machine.

    4. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.



    Technique parameter

    Model CGF8-8-3 CGF16-12-6 CGF18-18-6 CGF24-24-8
    Productivity 2000BPH 4000BPH 6000BPH 10000BPH
    Rinsing Head 8 16 18 24
    Filling Head 8 12 18 24
    Capping Head 3 6 6 8
    Bottle Volume 350ml~2000ml±10ml
    Bottle Diameter φ50-92mm
    Bottle Height 150-310 mm
    Filling Tolerance ±2%
    Cap Size 28mm and 30mm PE Standard Caps
    Air Pressure 0.6MPa
    Air Consumption 500 L/min
    Filling Water Consumption 1.5 m3/h 1.5 m3/h 3 m3/h 6 m3/h
    Rinsing Water Consumption 0.5 m3/h 0.5 m3/h 1 m3/h 2 m3/h
    Motor Power 4.88kw 5.88kW 6.68kW 7.68kW
    Voltage 380V
    Dimension

    (L*W*H)

    2100*1500*2200mm

    (L*W*H)

    2100*1500*2200mm

    (L×W×H) 2450*1800*2200mm (L×W×H) 2750*2180*2200mm
    Weight 2000kg 2500kg 3000kg 5300kg
    Filling Principle Gravity Filling



    Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH



    Electric Small Juice Filling Machine , Automatic Juice Bottling Machine 2000BPH



    ZHANGJIAGANG JIAYUAN MACHINERY CO.,LTD

    JIAYUAN supply and manufacture the followings machines for you

    1) Water treatment equipment---RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner,raw water pump,storage tank

    2) Filling Machine----3 in 1 Washing filling capping---for your water,cabonated drink, juice,wine,vinegar, milk,tea,oil and so on.

    ----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)

    ----PET bottle, Glass bottle, PP bottle and Can

    ----Screw cap, Aluminum cap, Crown cap and three (four) twist caps etc.

    3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label

    4) Printer , Inkjet printer , Laser printer

    5) Packing Machine----Shrink film, Cartons packing machine

    6) Bottle Blowing Machine--- for making plastic bottle

    7) Injection Molding Machine---for your cap and proform.

    8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.



    JIAYUAN will supply you bottle design, label design, workshop design free and make turnkey project equipments for you.
