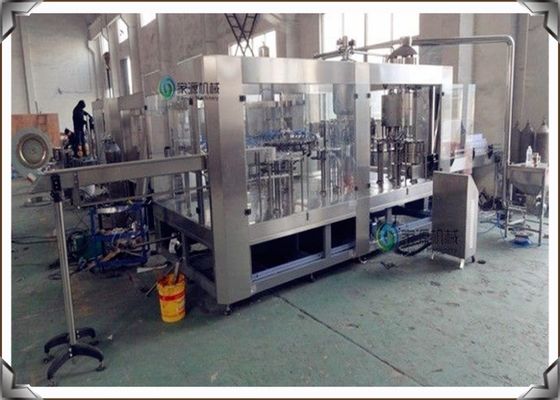

CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control

CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control

    • CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control
    • CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control
    • CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control
    • CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control
  • CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control

    Product Details:

    Place of Origin: CHINA,MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: RCGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 14500 -55000 set
    Packaging Details: wooden case
    Delivery Time: 15 work days
    Payment Terms: T/T
    Supply Ability: 15 sets per month
    Contact Now
    Detailed Product Description
    Application: Beverage Food Product Capacity: 3000bph
    Dimesion: 2100*1500*2200 Service: Oversea Service
    Certification: CE,SGS Warranty: 1year
    Voltage: Customized Control: Touch Screen



    PCL Control CE certificated fruit juice processing machines for glass bottles





    Introduction:





    Washing part

     Rotary pan is made of stainless steel 304.The rubber clamp splice seizes the mouth of bottles, which is fixedness and reliable.



    Rinsing part





    1) The rotary wheel is a fully AISI304 stainless steel welded structure.

    2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

    3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water

    4) Covering of bottle clamps and elevator are product of IGUS

    5) The rinse is driven by driving system positioned inside machine frame via gear transmission



    Filling part

    CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control

    1) The filler is designed and manufactured with application of Italy technology, providing

    hardware guarantee for securing product quality and reducing loss.

    2) Rotary wheel are fully made of stainless steel AISI304.

    3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.

    4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.

    5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free

    bearing.

    6) Hydraulic pump is float-ball controlled.

    7) The filler is driven by driving system positioned inside machine frame via gear transmission.

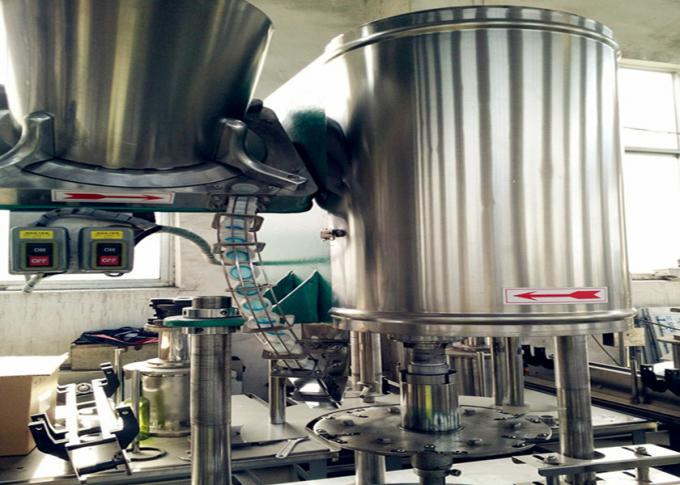

    Capping part

    CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control



    1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.

    2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.

    3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.

    4) Highly effective acentric way for cap sorting to reduce the abrasion.

    5) It has the check-up device to control the cover lift.







    Parameter

    Model CGFB50-50-50-12
    Capacity(500ml) 24000b/h
    Bottle Shape roud or square
    PET Bottle(mm) (Bottle Diameter):φ50-.φ110mm (Height):150-340mm
    Cap: PE srew cap
    Filling Precision: ≤±5mm
    Filling Pressure:(Mpa) 0.15-0.35
    Rinsing Pressure:(Mpa) 0.2-0.25
    Total power(kw)

    10.8









    Service



    1.Installation

    After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.

    2.Training

    Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

    3.Quality Guarantee

    We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

    4.Aftersales

    1,After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.



    2,After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.



    Packaging

    CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control
    CE Certificated Fruit Juice Processing Machines With Glass Bottles PCL Control
