Fully Automatic White RO Water Purifying Machine 10 Ton for Water Process

Fully Automatic White RO Water Purifying Machine 10 Ton for Water Process

    • Fully Automatic White RO Water Purifying Machine 10 Ton for Water Process
    • Fully Automatic White RO Water Purifying Machine 10 Ton for Water Process
    • Fully Automatic White RO Water Purifying Machine 10 Ton for Water Process
  • Fully Automatic White RO Water Purifying Machine 10 Ton for Water Process

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JiaYuan
    Certification: CE SGS
    Model Number: RO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $2,000 - 28,000 / Set
    Packaging Details: wooden packing for RO Water Purification System
    Delivery Time: 30 work days
    Contact Now
    Detailed Product Description
    Solid Size: <5um Working Temperature: 2~45℃
    Voltage: 110v/220v/380v Type: Reverse Osmosis

    Full automatic White 304 316ss RO water Purifying Machine 10 ton Water Process

    Introduction of RO system

    RO (Reverse Osmosis, RO), the basic working principle is: using of a special high pressure pump, increasing 6-20 kg pressure to raw water, then force raw water penetrating through 0.0001 micro reverse osmosis membrane under the pressure. Only water molecules and solvent less than 0.0001 microns can pass through the RO membrane. Chemical ionization, and bacterial, fungal, virus will flow with wastewater.
    Fully Automatic White RO Water Purifying Machine 10 Ton for Water Process
    Features:
    1. Automatic backwash and manual backwash
    2. Automatic switch on when low water level, and switch off when high water level
    3. Water shortage protection for multi-stage pump
    4. Protection when no voltage, under-voltage, over-current, short circuit and creepage
    5. Full stainless steel structure, durable and easy to clean.
    6. Integrating water flow indicator, TDS indicator, pressure indicator, control panel
    7. China Top Brand or world famous brand electrical, switch and valve systems
    8. Built-in soft-start system to avoid damage to the expensive membrane when starting
    9. Built-in RO membrane chemical washing device
    10. PLC with touch-screen control available


    RO specification
    Parameters
    ProductTwo-stage RO(Reverse Osmosis) water treatment machine
    ModelRO-1000I(3000L/H)
    Pure Water Production Capacity3000 litre per hour(25°C)
    Input water qualityTDS≤2000PPM(SDI≤5, 2≤PH≥11, NTU≤1)
    Minimum flux requirement for raw water(to reach the max output)6000L/H
    Systematic Salt Rejection Rate≥98%
    Recovery Rate(pure water : inlet water)50~75%
    Recommended Working Temp.5~35°C
    Input Power(standard)AC380V / 50Hz / 8.10KW
    Pre-treatment
    Quartz Sand Filter(Flux: 6M3/H)Φ750×1500mm(t=2.0mm) SUS304 stainless tank with 800KG quartz sand Or optional fiber glass tank
    Active Carbon Filter(Flux: 6M3/H)Φ750×1500mm(t=2.0mm) SUS304 stainless tank with 300KG activated carbon optional fiber glass tank
    Micron (PP Sediment) FilterΦ330×500mm SUS304 stainless steel tank with 5u 20inch PP filter×8PCS
    Booster Pump

    China Nanfang CHL8-30 pump×1PC / 1.1KW
    optional Denmark GRUNDFOS CR8-30 pump×1PC / 1.1KW

    Multi-stage Pump for 1st stage RO

    China Nanfang CDL4-220 pump×1PC / 4.0KW
    optional Denmark GRUNDFOS CR15-12 pump×1PC / 11.0KW

    Multi-stage Pump for 2nd stage RO

    China Nanfang CDL4-220 pump×1PC / 3.0KW
    optional Denmark GRUNDFOS CR15-12 pump×1PC / 11.0KW

    Reverse Osmosis System
    MembraneU.S. HYDRANAUTIC ultra-low pressure ESPA-4040 membrane × 18PCS Optinal DOW FILMTEC membrane
    HousingSUS304 stainless steel 40120 housing×6PCS
    Accessories
    PipingU-PVC quick connection
    StructureFull SUS304 stainless steel 40160 housing×2PCS
    Electrical Parts

    China Tengen
    Or optional SIEMENS / MISTSUBISHI / ABB

    OthersFlow metre, TDS metre, pressure metre, electromagnetic valve, etc.
    OPTIONAL
    Chemical dosing System for PH adjustment, anti-scaling, etc.U.S. Pulsafeeder Xo60 Automatic Dosing valve with 50L tank

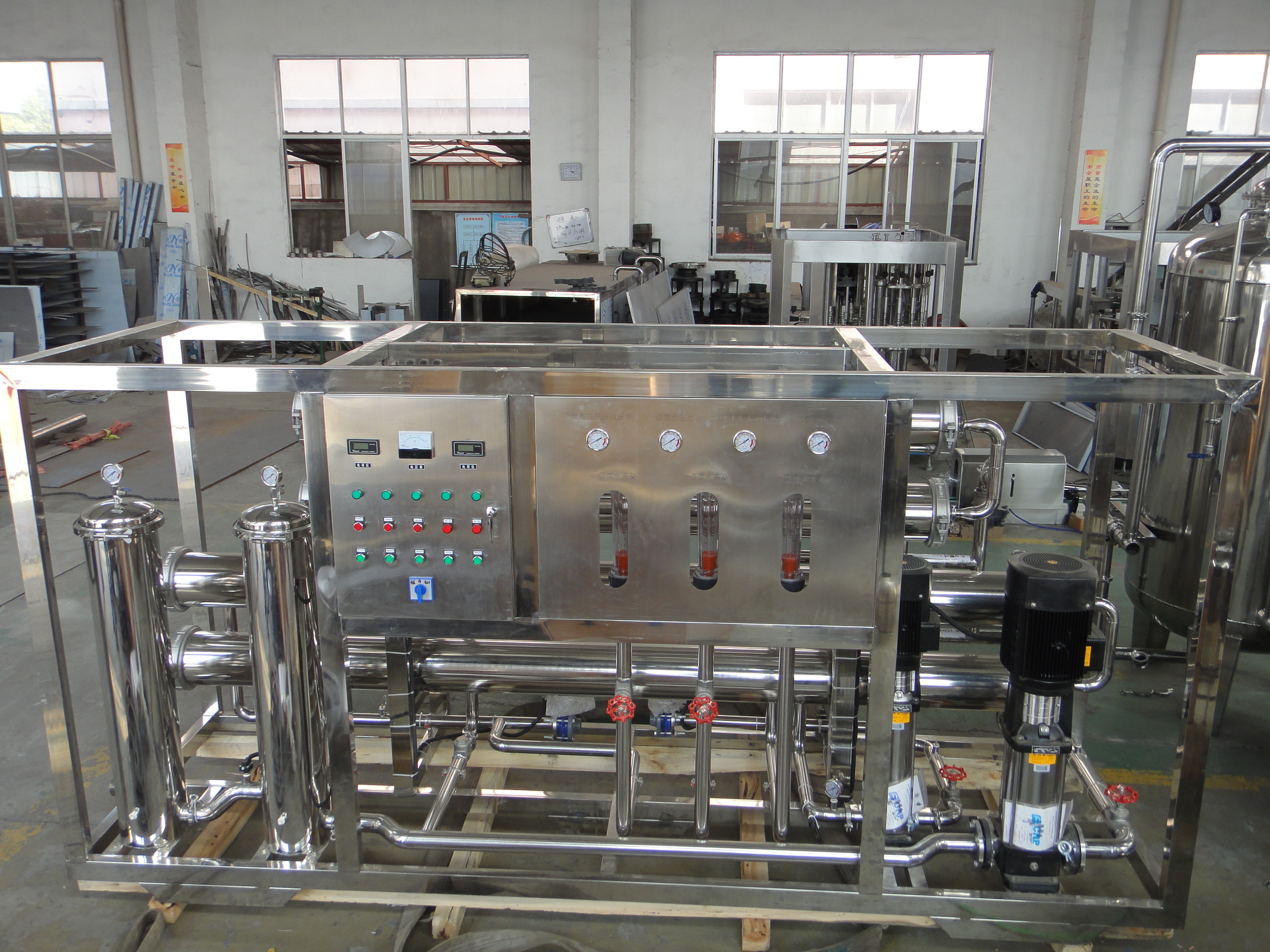

    Our Machine Picture

    Fully Automatic White RO Water Purifying Machine 10 Ton for Water Process
