    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JiaYuan
    Certification: CE SGS
    Model Number: RO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $2,000 - 28,000 / Set
    Packaging Details: wooden packing for RO Water Purification System
    Delivery Time: 30 work days
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    PH: 4-14 Working Temperature: 2~45℃
    Influent Water Turbidity: <1.0NTU TOC: <3mg/l
    Color: Silver Voltage: 110v/220v/380v

    Stainless Steel one stage Water Purifying Machine 2 - 35 ºC 10000 Liter  370kg







    Introduction of RO system



    Any process of commercial ro water purifier can be customized or will be designed as per the feed water analysis report and client's requirements.

    1st Model:Sand filter, carbon filter, softener adopts glass fiber is standards model.

    2ndModel Sand filter, carbon filter, softener adopt stainless is superior model.

    3rdModel: Above model have Semi control and auto control

    All the plant capacity and other requirements can customized as per your requirements

    Difference commercial ro water purifier model and capacity has difference price. Please let us know which model do you requirement.



    mineral water plant machine water purifier for drinking watermineral water plant machine water purifier for drinking water



    Parameter



    Parameters
    Product Two-stage RO(Reverse Osmosis) water treatment machine
    Model RO-1000I(3000L/H)
    Pure Water Production Capacity 3000 litre per hour(25°C)
    Input water quality TDS≤2000PPM(SDI≤5, 2≤PH≥11, NTU≤1)
    Minimum flux requirement for raw water(to reach the max output) 6000L/H
    Systematic Salt Rejection Rate ≥98%
    Recovery Rate(pure water : inlet water) 50~75%
    Recommended Working Temp. 5~35°C
    Input Power(standard) AC380V / 50Hz / 8.10KW
    Pre-treatment
    Quartz Sand Filter(Flux: 6M3/H) Φ750×1500mm(t=2.0mm) SUS304 stainless tank with 800KG quartz sand Or optional fiber glass tank
    Active Carbon Filter(Flux: 6M3/H) Φ750×1500mm(t=2.0mm) SUS304 stainless tank with 300KG activated carbon optional fiber glass tank
    Micron (PP Sediment) Filter Φ330×500mm SUS304 stainless steel tank with 5u 20inch PP filter×8PCS
    Booster Pump

    China Nanfang CHL8-30 pump×1PC / 1.1KW

    optional Denmark GRUNDFOS CR8-30 pump×1PC / 1.1KW

    Multi-stage Pump for 1st stage RO

    China Nanfang CDL4-220 pump×1PC / 4.0KW

    optional Denmark GRUNDFOS CR15-12 pump×1PC / 11.0KW

    Multi-stage Pump for 2nd stage RO

    China Nanfang CDL4-220 pump×1PC / 3.0KW

    optional Denmark GRUNDFOS CR15-12 pump×1PC / 11.0KW

    Reverse Osmosis System
    Membrane U.S. HYDRANAUTIC ultra-low pressure ESPA-4040 membrane × 18PCS Optinal DOW FILMTEC membrane
    Housing SUS304 stainless steel 40120 housing×6PCS
    Accessories
    Piping U-PVC quick connection
    Structure Full SUS304 stainless steel 40160 housing×2PCS
    Electrical Parts

    China Tengen

    Or optional SIEMENS / MISTSUBISHI / ABB

    Others Flow metre, TDS metre, pressure metre, electromagnetic valve, etc.
    OPTIONAL
    Chemical dosing System for PH adjustment, anti-scaling, etc. U.S. Pulsafeeder Xo60 Automatic Dosing valve with 50L tank
    UV sterilizer

    IP67 waterproof grade UV-40W UV sterilizing(up to 5000hour lamp lifespan)

    Or U.S. Hanovia lamp(up to 9000hours lamp lifespan)

    Ozone sterilizer SOZ-YB-10G ozone generating and mixing machine with oil free air compressor and 10gram ozone output directly from air
    Built-in chemical membrane washing device for RO system For regular membrane cleanning so as to renew and improve the membrane performance
    Water softener Φ530×1500mm fiber glass tank with 200L food-grade resin and 180 automatic control valve(Total hardness≤300PPM)
    Touch-screen PLC control panel Japan Panasonic PLC with colorful touch-screen operation





    Application



    Industry Application
    Electronic industrial Cleaning water of electronic components (Integrated circuits, silicon chips, display tube, electrode foil
    pharmaceutical industry Transfusion, injections, tablets, biochemical products, equipment cleaning, etc.
    Chemical industry chemical recycling water,chemical products manufacturing,chemical fertilizer
    Electric power industry,Boiler Feed water Thermal power boiler, low pressure boiler power system in factories and mines
    Food industry Pure drinking water, beverages, beer, wine, health products
    Seawater, brackish water desalination Island, ships, offshore drilling platforms, brackish water
    Drinking water Estate, communities, enterprises
    Others Grey water reuse, coated glass, fine chemicals, printing and dyeing

    Stainless Steel One Stage Water Purifying Machine 2 - 35 ºC 10000 Liter 370 kg

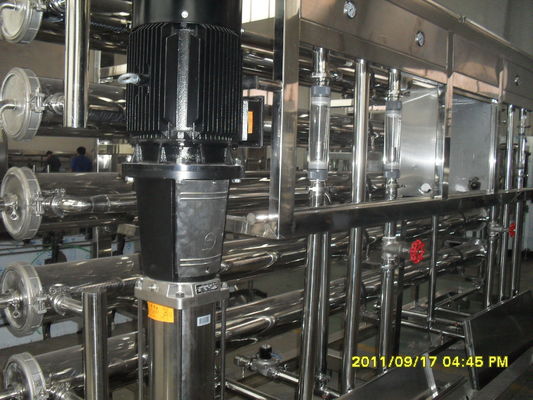

    Our Machine Picture

    Stainless Steel One Stage Water Purifying Machine 2 - 35 ºC 10000 Liter 370 kg
