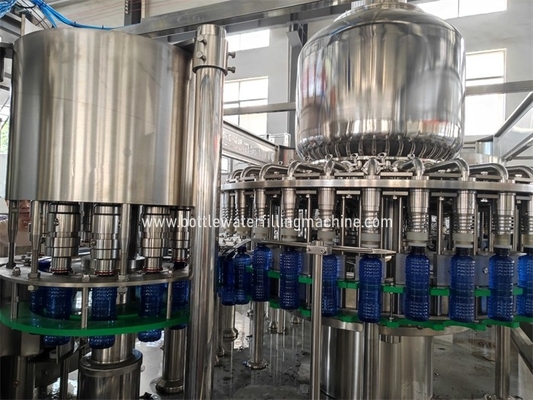

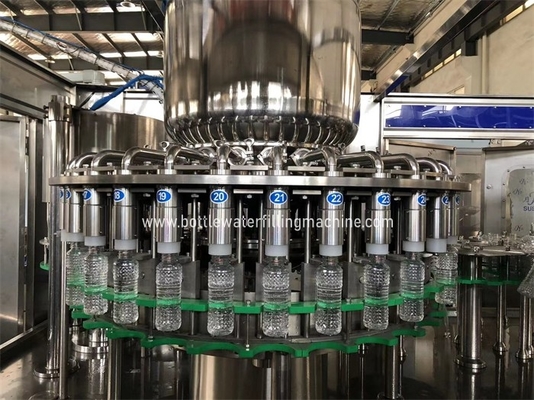

Automatic Bottling Tea Drink/ Juice Filling Machine Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE
Model Number:	RCGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard export packing
Delivery Time:	50 days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Machine Name:	Juice Filling Machine	Suitable Bottle:	PET Bottle
Washing Nozzle:	32 Pcs	Filling Nozzle:	32 Pcs
Capping Nozzle:	10	Filling Material:	Juice, Water, Flavor Drink

Automatic Bottling Tea Drink/ Juice Filling Machine Production Line

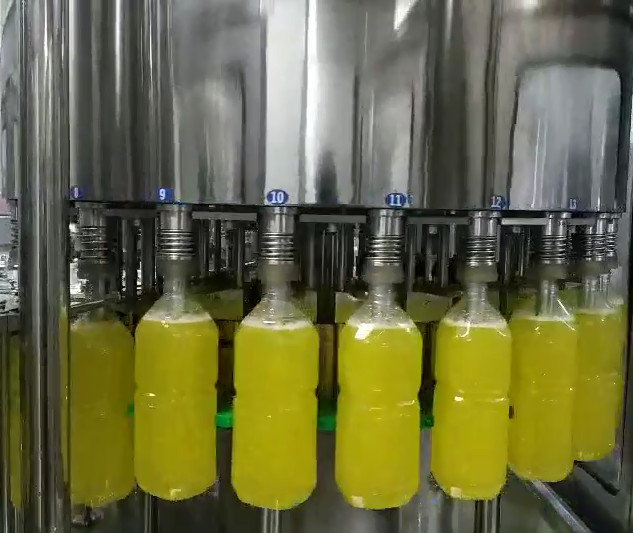

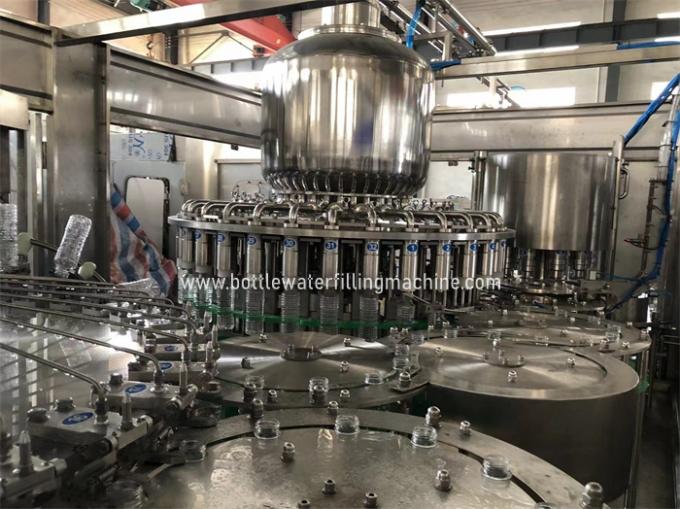

Juice Filling Machine is mainly designed for filling hot temperature liquid.

For example juice, tea drinks etc which are made of concentrate juice.

The final filling temperature will be around 85-90 degree centigrade.

Once the thermal meter in juice filling machine is lower than the temperature, juice will be return to sterilizing machine again through return system.

Automatic Bottling Tea Drink/ Juice Filling Machine Production Line 0

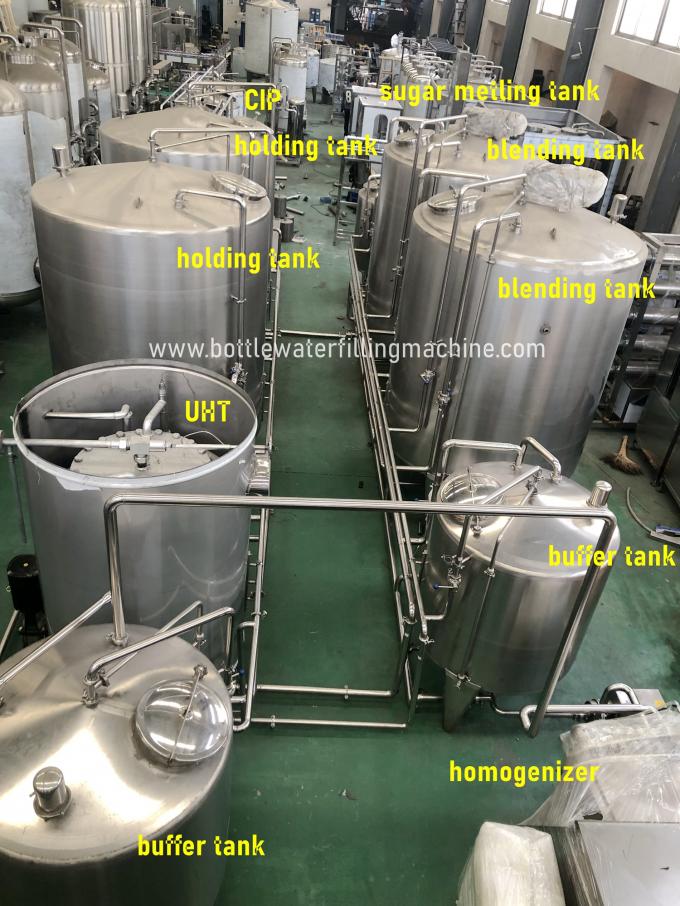

Juice blending system

Sugar melting tank → syrup filter → blending tank → double filter → storage tank → homogenizer → storage tank → vacuum degasser → storage tank → plate type sterilization

Automatic Bottling Tea Drink/ Juice Filling Machine Production Line 1

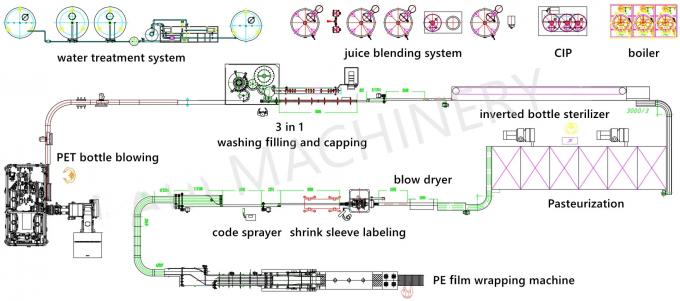

We can provide complete line plants

Automatic Bottling Tea Drink/ Juice Filling Machine Production Line 2

Pasteurization

This machine is usually used after fruit juice beverage finished hot filling and sealing, when enter the spray tunnel, the water with the function of high-pressure pump, uniformly spray on the bottle body. The bottles move slowly in the chain, when they are out the tunnel, they can reach the normal temperature, then achieve the purpose of cooling. This machine can also be used for secondary sterilization for fruit juice.

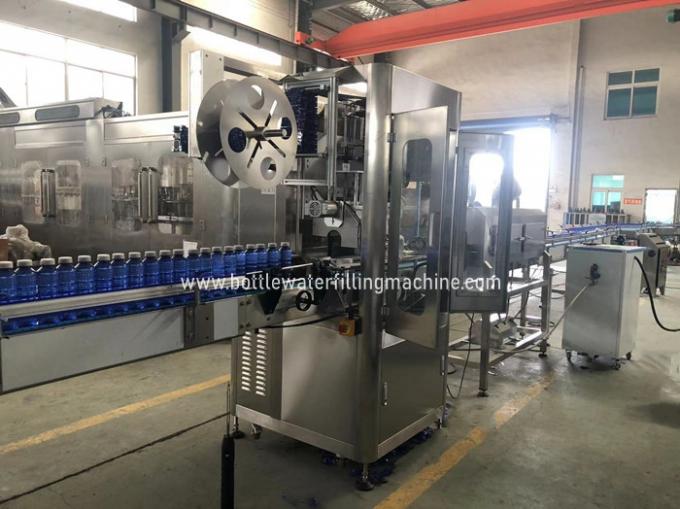

Automatic shrink sleeve labeling machine

This machine adopts international advanced technology, cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated.

Automatic Bottling Tea Drink/ Juice Filling Machine Production Line 3

Automatic PE film wrapping machine

To pack several bottles into one package, make it easier for delivery.

You can have different group style, 24 bottles one package, 12 bottles one package, etc. It is changeable.

Technical parameter
Model	RCGF8-8-3	RCGF14-12-5	RCGF18-18-6	RCGF24-24-8	RCGF32-32-8
Capacity(for 500ml)	2000	3000-4000	4000-6000	8000-10000	10000-12000
Suitable bottle shapes	PET circular or square
Bottle diameter(mm)	Dia50-Dia115mm
Bottle height (mm)	160-320mm
Compressor air	0.3-0.7Mpa
Filling type	hot filling
Rinsing pressure	>0.06Mpa <0.2Mpa
Application	fruit juice
