Fruit Glass Bottle Juice Filling Machine 200ml Automatic Flavor Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	JIYUAN
Certification:	CE ISO
Model Number:	RCGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	45 working days
Supply Ability:	50 sets per year

Contact Now

Detailed Product Description

Product Name:	Juice Filling Machine	Filling Product:	Fruit Juice, Flavor Juice,water
Bottle Size:	50-2000ml	Capacity:	1000-30000 Bottles/hr
Control:	PLC HMI Frequency Converter
High Light:	Fruit Juice Bottle Filling Production Machine , 200ml Bottle Filling Machine , Glass Bottle Juice Filling Production Line

Automatic Fruit / Flavor Glass Bottle Juice Filling Machine, Production Line

This glass bottle filling machine is used to produce juice, tea drink, flavor drink and

other still beverage.

It combines rinsing filling capping three functions in one unit, runs smoothly.

It can work on bottle 200ml to 2000ml, only changing some spare parts.

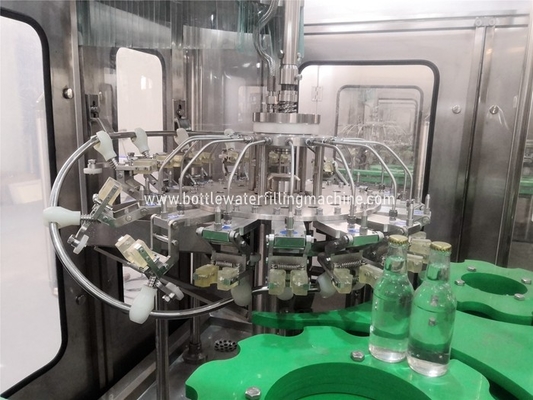

Fruit Glass Bottle Juice Filling Machine 200ml Automatic Flavor Production Line 0

Fruit Glass Bottle Juice Filling Machine 200ml Automatic Flavor Production Line 1

Project	Jucie bottling machine
Model	RCGF 8-8-3	RCGF 14-12-5	RCGF 18-18-6	RCGF 24-24-8	RCGF 32-32-10	RCGF 40-40-12	RCGF 50-50-15
Capacity	3000	5000	8000	12000	15000	18000	20000
Bottle shapes	PET circular or square bottles
Bottle height (mm)	160-320
Bottle diameter(mm)	Dia50-115mm
Compressor air pressure(Mpa)	0.3-0.7Mpa
Washing meidum	Aseptic water
Rinsing pressure(Mpa)	>0.06Mpa <0.2Mpa
Application	Fruit juice / Tea Beverage / Flavoured water bottling production line
Total power (KW)	4.4	4.4	4.4	5.2	6.2	7.8	8.6

Final products:

Fruit Glass Bottle Juice Filling Machine 200ml Automatic Flavor Production Line 2

Advantages

v In the case of replacing bottle fittings, the flushing, filling and sealing can be applied to bottles of various sizes.

v All stainless steel 304 materials are used.

v For glass bottles, screw feeding is used to convey the bottles, and the bottles are not extruded or exploded.

v The screwdriver cap adopts the screwdriver cap technology imported from France, and the cap cutter is installed at low position and sent horizontally.

v Host PLC and frequency converter are famous brands, such as Mitsubishi, Germany Siemens, etc.

Our service

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
