30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw

30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw

    • 30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw
    • 30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw
    • 30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw
    • 30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw
  • 30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: 2cavity

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 40 days
    Payment Terms: T/T; L/C
    Supply Ability: 3 sets/month
    Contact Now
    Detailed Product Description
    Application: Liquid, Beverage, Juice Automatic Grade: Automatic
    Bottle Type: PET, Plastic Bottle Capacity: 2000bph
    Power: 30Kw Product Name: Liquid Filling Machine





    30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water





    Quick Detail:



    1. Product: Automatic water bottle blowing machine prices

    3. Main Material: SS304

    4. Production capacity: 2000bph(500ml)

    5. Usage: Fill pure/mineral/distilled water and so on

    6. Dimension: 235x160x190cm

    7. Warranty: 1year free

    Automatic water bottle blowing machine prices





    Description:



    Automatic water bottle blowing machine prices

    Features
    A. Stable performance with advanced PLC.
    B. Conveying preforms automatically with conveyor.
    C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
    D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
    E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
    F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
    G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
    H. Strong clamping force with high pressure and double crank links to lock the mold.
    I. Two ways of operating: automatic and manual.
    J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
    K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
    L. Contamination is avoided for the bottle body.
    M. Ideal effect of the chilling with the chilling system.
    N. Easy installation and starting
    O. Low rejection rate: less than 0.2 percent.



    Type

    Item

    Unit

    Data

    Output

    Depend on bottle design

    Pcs/h

    1800-2000

    Container

    Resin available

    /

    PET

    Body diameter

    mm

    50-120

    Neck diameter

    mm

    20-38

    Mold

    Cavity

    cavity

    2

    Mold thick

    mm

    240

    Size

    mm

    240x320x370

    Power

    Power

    V

    380V/220V 50/60Hz

    Electrical source power

    KW

    30

    Really use power

    KW

    15

    Air compressor

    HP air compressor

    Mpa

    1.5m³/min 30kg

    Air dryer

    Mpa

    1.0m³/min 30kg

    Air filter

    Mpa

    1.0m³/min 30kg

    Size

    (normal)

    Main machine weight

    (L x W x H)

    mm

    1800x1400x1800

    pre-form unscramble

    (L x W x H)

    mm

    2000x950x2480

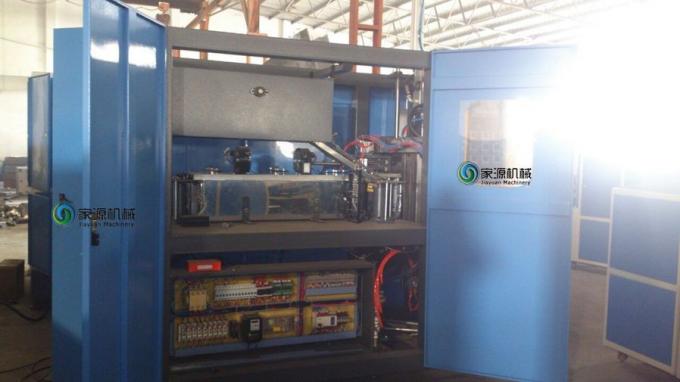

    3) Pictures:



    30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw30Kw Automatic Plastic Bottle Blowing Machine For Mineral Water Liquid 30Kw
