Water PET Bottle Blowing Machinery , 49 kw Power Beverage Processing Equipment

Water PET Bottle Blowing Machinery , 49 kw Power Beverage Processing Equipment

    • Water PET Bottle Blowing Machinery , 49 kw Power Beverage Processing Equipment
    • Water PET Bottle Blowing Machinery , 49 kw Power Beverage Processing Equipment
    • Water PET Bottle Blowing Machinery , 49 kw Power Beverage Processing Equipment
    • Water PET Bottle Blowing Machinery , 49 kw Power Beverage Processing Equipment
  • Water PET Bottle Blowing Machinery , 49 kw Power Beverage Processing Equipment

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: 6cavity

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 40 days
    Payment Terms: T/T; L/C
    Supply Ability: 1 sets/month
    Contact Now
    Detailed Product Description
    Application: Beverage Automatic Grade: Automatic
    Bottle Type: PET Capacity: 6000BPH
    Power: 49 Kw Product Name: Liquid Filling Machine

    Water PET Bottle Blowing Machinery , 49 kw Power Beverage Processing Equipment





    Quick Detail:



    1. Product: Drinking water bottle blowing machinery

    2. Main Material: SS304

    3. Production capacity: 6000bph(500ml)

    4. Delivery Detail:20-40days after getting deposit

    5. Warranty: 1year free

    Drinking water bottle blowing machinery





    Description:



    Drinking water bottle blowing machinery

    1. Stable performance with advanced PLC.
    2. Conveying preforms automatically with conveyor.
    3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
    4. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
    5. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
    6. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
    7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
    8. Strong clamping force with high pressure and double crank links to lock the mold.
    9. Two ways of operating: Automatic and manual.
    10. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
    11. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
    12. Contamination is avoided for the bottle body.
    13. Ideal effect of the chilling with the chilling system.
    14. Easy installation and starting
    15. Low rejection rate: Less than 0.2 percent

    Main technological data

    model

    Cm-a4



    productivity

    depend on bottle design

    3200-3600 pcs/h

    product type

    body diameter

    20mm-100mm



    height

    50mm-350mm



    neck diameter

    15mm-38mm

    mold

    cavity

    4 cavities



    mold thick

    240 mm



    mold

    500mm*500mm

    main machine power

    electrical source

    380v 3phase/220 phase 50/60 hz



    power

    49 kw



    really use power

    14 kw

    air source

    lp air compressor

    1.6m3min 1.0mpa 1 set (15kw)



    hp air compressor

    1.0 m3min 3.0mpa 2 sets (each set 11kw)



    air dryer

    2.0m3/min 3.0 mpa 1 set

    cooling water

    cooler water

    15 l/min

    size

    l*w*h

    1908*1858*1920mm

    weight



    3600 kg

    Auxiliary equipment(pre-formunscrambler)

    l*w*h

    276*106*186 mm



    weight

    250 kg

     rosin available



    Pet

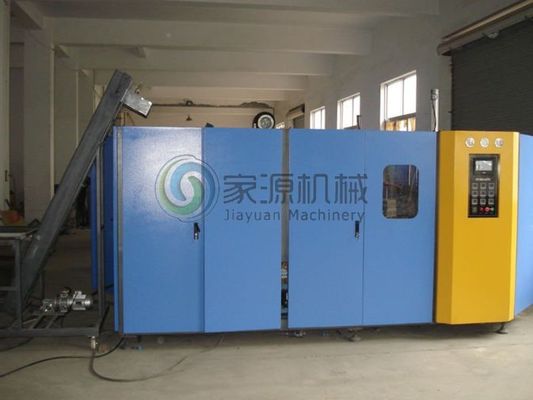

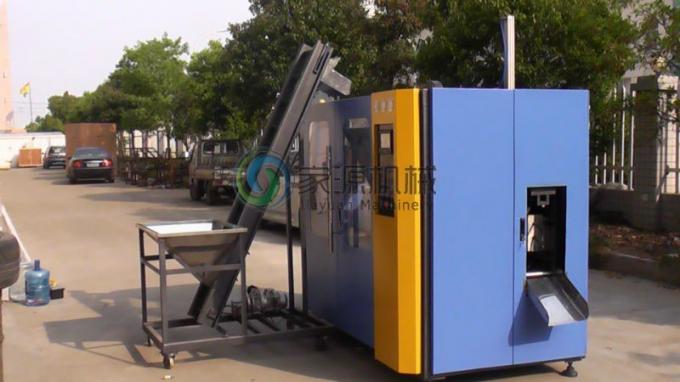

    Pictures:



    Water PET Bottle Blowing Machinery , 49 kw Power Beverage Processing EquipmentWater PET Bottle Blowing Machinery , 49 kw Power Beverage Processing EquipmentWater PET Bottle Blowing Machinery , 49 kw Power Beverage Processing EquipmentWater PET Bottle Blowing Machinery , 49 kw Power Beverage Processing Equipment
