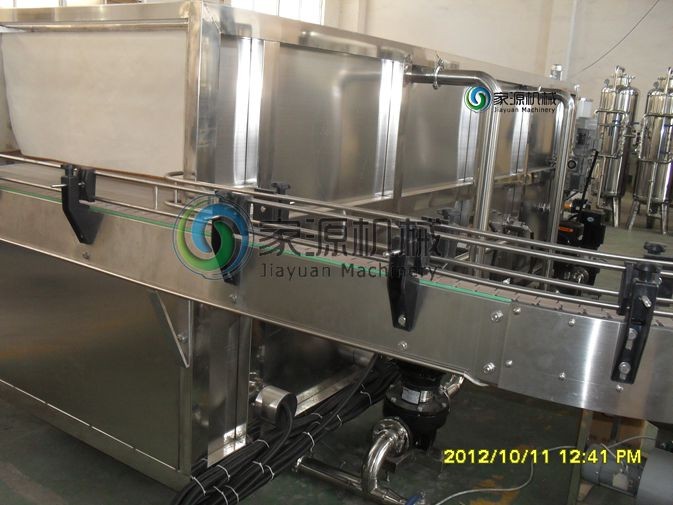

Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment

Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment

    • Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment
    • Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment
    • Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment
    • Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment
  • Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment

    Product Details:

    Place of Origin: China
    Brand Name: Jiayuan
    Certification: CE&SGS
    Model Number: QHS-3000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden box
    Delivery Time: 20 days
    Payment Terms: T/T L/C
    Supply Ability: 3 sets
    Contact Now
    Detailed Product Description
    Application: Juice|Beverage Bottle: Glass Bottle
    Capacity: 3000-10000BPH Material: Stainless Steel
    Power: 0.4Mpa Product Name: Bottle Cooling Machine

    Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment


    Quick Detail:

    1. Capacity: 3000-10000BPH
    2. Pasteurizer
    3. Glass Bottle Beer
    4. Total 5 temperature sections



    Description:

    Principal features
    Based on advanced same technologies from Germany and Italy, it is suitable for cooling or heating all kinds of aerated beverage.
    Based on advanced same technologies from Germany, Italy and Taiwan, we developed this new type of bottle cooling/heating machine Its working process can be divided into 3 stages: circulating hot water spraying.warm water pre-cooling and cold water-cooling. The cooling/heating temperature and time can be regulated in according to the requirements of user,It is suitable for cooling or heating all kinds of bottled or canned hot beverage and aerated beverage.
    It equips with "REXNORD"(American famous brand )chain plate, which made of high temperature resistance polypropylene(CPP). Its structure is made of fine stainless steel. So the machine is more reliable in running, also it has a beautiful appearance.


    Specifications:

    Principal parameter

    Main Technical parameters

    Model

    CY-5000

    CY-9000

    CY-15000

    CY-36000

    Output capacity (Battle/H)

    3000-5000

    6000-9000

    10000-15000

    24000-36000

    Heating temperature (°C)

    37-45

    Cooling time(min)

    12-15

    Conveying speed (mm/min)

    100-550

    Width of chain (m)

    1.22

    1.22

    1.22

    1.22

    Steam pressure (MPa)

    <0.4

    Water consumption (m3/h)

    6

    9

    15

    28

    Steam consumption (Kg/h)

    80

    120

    250

    280

    Motor power (kw)

    6

    7.55

    8.6

    18

    Overall dimension (mm)

    6200×1500×1700

    15800×1500×1700

    15800×1800×1700

    22000×800×1700

    Weight (Kg)

    2500

    3200

    4300

    5600



    Juice Glass Bottle Cooling Machine , Stainless Steel Beverage Production EquipmentJuice Glass Bottle Cooling Machine , Stainless Steel Beverage Production EquipmentJuice Glass Bottle Cooling Machine , Stainless Steel Beverage Production Equipment
