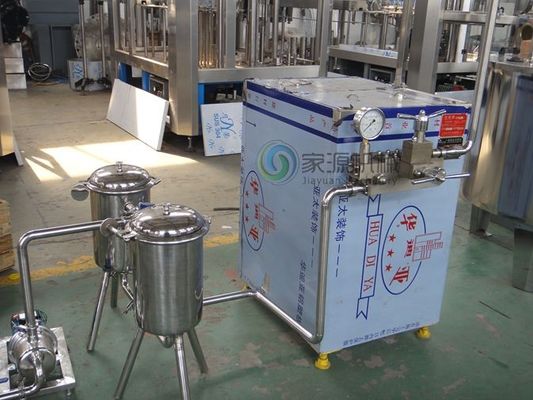

60 Mpa Beverage Processing Equipment 500 L/H Juice High Pressure Homogenizer

60 Mpa Beverage Processing Equipment 500 L/H Juice High Pressure Homogenizer

    • 60 Mpa Beverage Processing Equipment 500 L/H Juice High Pressure Homogenizer
    • 60 Mpa Beverage Processing Equipment 500 L/H Juice High Pressure Homogenizer
  • 60 Mpa Beverage Processing Equipment 500 L/H Juice High Pressure Homogenizer

    Product Details:

    Place of Origin: China
    Brand Name: Jiayuan
    Certification: CE&SGS
    Model Number: High pressure homogenizer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Wooden box
    Delivery Time: 20 days
    Payment Terms: T/T L/C
    Supply Ability: 2 sets
    Contact Now
    Detailed Product Description
    Application: Juice|Beverage Automatic Grade: Automatic
    Feature: High Pressure Material: Stainless Steel
    Pressure: 60Mpa Product Name: Homogenizer

    60 Mpa Beverage Processing Equipment 500 L/H Juice High Pressure Homogenizer



    Quick Detail:



    1. Homogenizer for milk, ice cream
    2.Capacity: 500L per hour
    3.Rated pressure: 25 to 60Mpa
    4.Stainless steel 304





    Description:



    Principal features

    pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process.

    Widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological level





    Specifications:



    Technique parameter of homogenizer

    Name

    type

    Rated flowL/H



    Rated pressure

    Mpa

    Working pressure Mpa



    Weight

    Size (cm)

    Power Kw



    Small scale homogenizer

    GJB500-25

    500

    25

    0~20

    670

    100×75×110

    5.5

    GJB1000-25

    1000

    25

    0~20

    700

    100×75×110

    7.5

    GJB1500-25

    1500

    25

    0~20

    720

    100×75×110

    11

    GJB1000-30

    1000

    30

    0~24

    720

    100×75×110

    11

    GJB300-40

    300

    40

    0~32

    670

    100×75×110

    5.5

    GJB500-40

    500

    40

    0~32

    670

    100×75×110

    7.5

    GJB500-60

    500

    60

    0~48

    720

    100×75×110

    11

    GJB300-60

    300

    60

    0~48

    700

    100×75×110

    7.5

    GJB500-70

    500

    70

    0~56

    720

    100×75×110

    11

    Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.

    Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤1 micron.

    Sealing material can work under less than 150oC, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.

    Lubrication of homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later.

    The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification. Pressure of 30MPA above, on the liquid - solid dispersion of liquid into play when the pressure most of the material up to 60MPA reach 2μm particle size less than when the material reaches 80MPA more obvious when the role is mainly used for ultrafine particles broken Materials to achieve the following general 1μm. As to 100MPA above, can be produced more subtle particles, some of the material particles after repeated high pressure homogenization, 0.1-0.5μm can be prepared the following no-grain materials
