Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | CHINA |
Brand Name: | JIAYUAN |
Certification: | CE ISO |
Model Number: | RCGF |
Minimum Order Quantity: | 1 set |
---|---|
Price: | please inquire |
Packaging Details: | standard wooden case |
Delivery Time: | 40 working days |
Supply Ability: | 300 sets per year |
Name: | Juice Filling Machine | Fillling Material: | Juice, Vinegar, Sauce |
---|---|---|---|
Filling Nozzles: | 32 | Capacity: | 13000-14000BPH |
Control: | PLC+touch Screen | Warranty: | One Year |
High Light: | 13000BPH automatic juice filling machine,UHT sterilizer automatic juice filling machine,13000BPH aseptic juice filling machine |

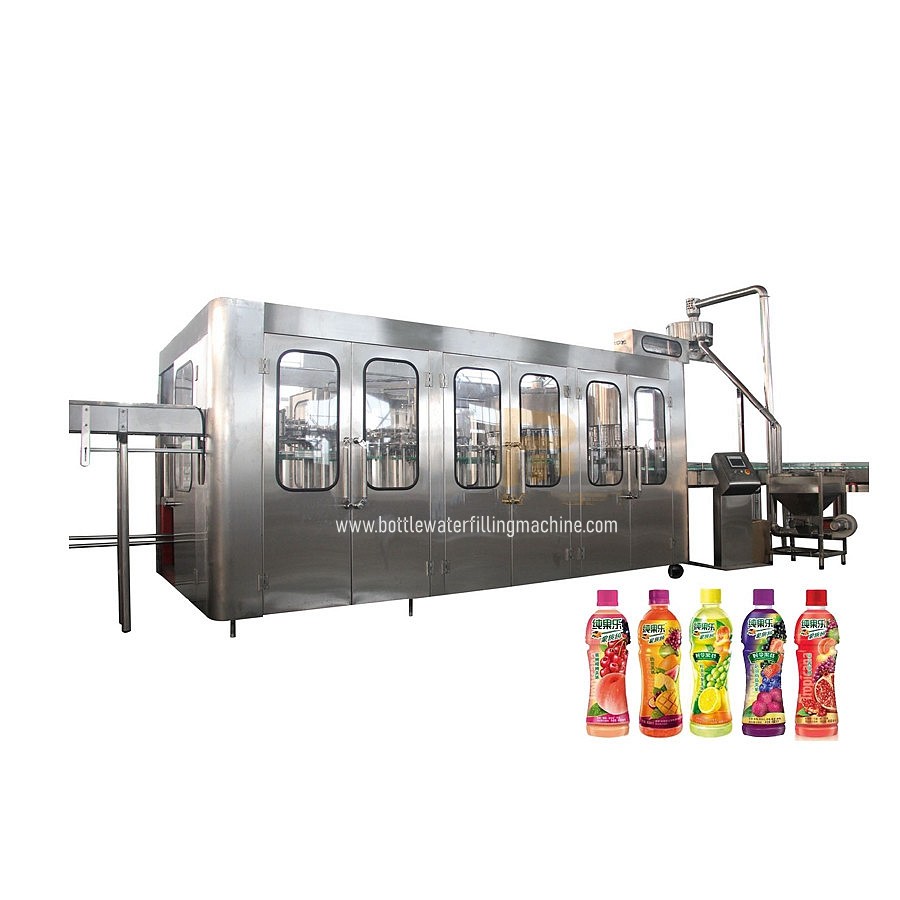

Complete Automatic Fruit Juice Production Line/Fresh Juice Filling Machinery

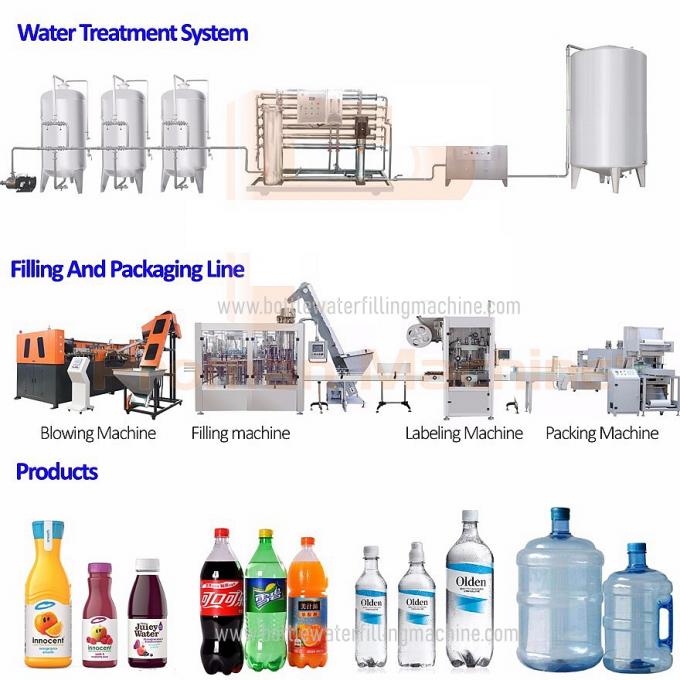

Flow Chart
1)water purification system
Source water tank →Source water pump→ Quartz sand filter→ Active carbon filter→ Ion soften machine→ Fine filter →Reverse Osmosis → Ozone sterilizer → pure water tank
2)Juice CSD drink processing system
1 High-shear emulsifying tank + Plate heat exchanger
2 Mixing tank
3 UHT sterilizer + homogenizer machine + Buffer tank
4 Hot water system + Hot water tank
5 CIP cleaning system
3) Bottle filling & packing system
Pure water tank→Bottle blower→Air conveyor →Washing, filling & capping 3-in-1→ Light check → Full-automatic labeling machine → Ink jet machine →Full automatic PE film packing machine→ warehouse
4).Bottle making system
pet preform→Autoloader→reheater →molding→ bottles

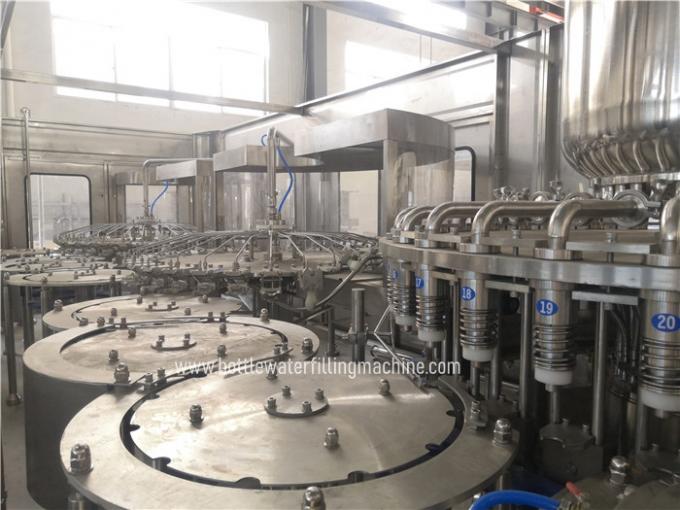

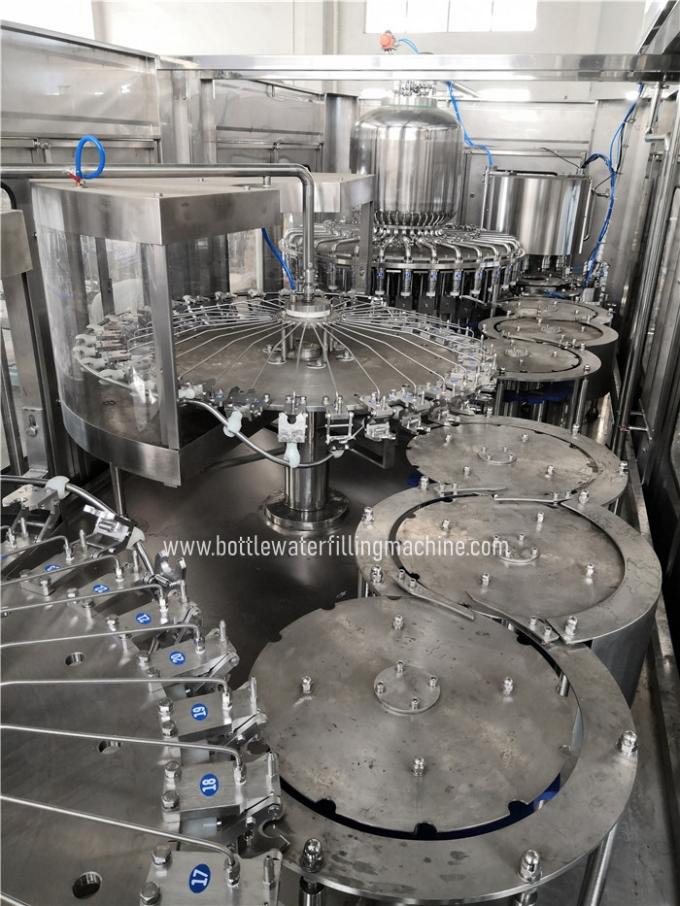

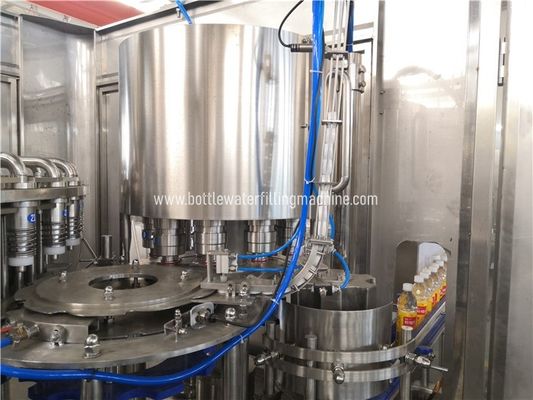

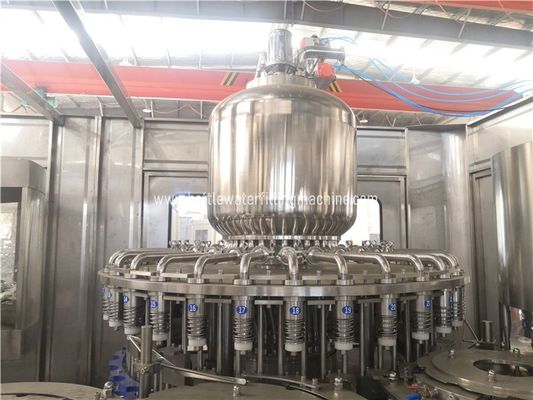

This is disinfection rinser, pure rinser, filler, capper 4-in-1 machine
can produce juice, flavor beverage, water, also can produce vinegar and sauce.
Technical characteristics:
Full filling avoids the bottle distorted after cooling and reduces dissolved oxygen at the maximum degree.product storage hopper and feed system adopts reasonable product feed design(constant flow,constant pressure,no foaming).product hopper with reasonable structure(exhaust,fully close,temperature can be detected).medium and high speed line adopts product distributor instead of large liquid carousel,which can be cleaned completely by pressure cleaning with CIP.sanitary filling valve system umbrella-flow type structure,high speed.perfect hot filling temperature control system.product recycle tank system with automatic product feed startup.perfect CIP system.
Technial parameter
