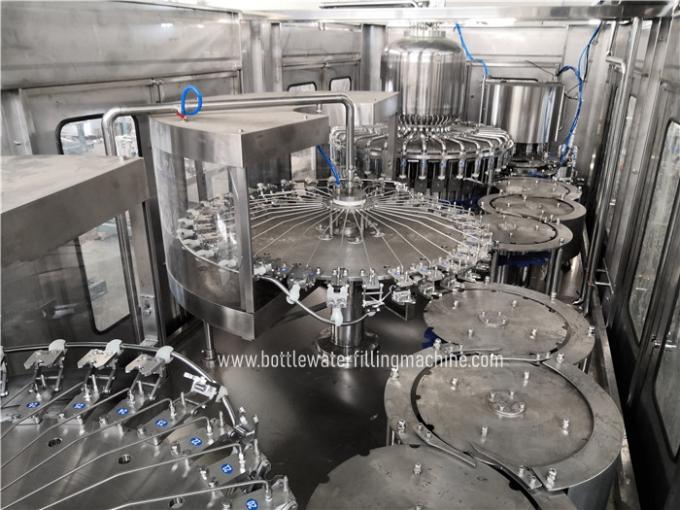

Rotative rinsing turret one treatment, fixed nozzles, with grippers.
The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip.
After the gripping, the bottle is turned upside down and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

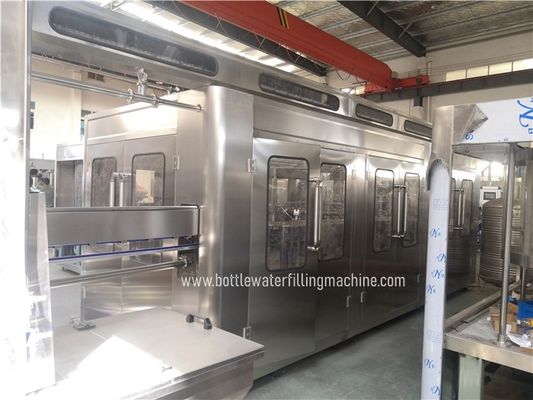

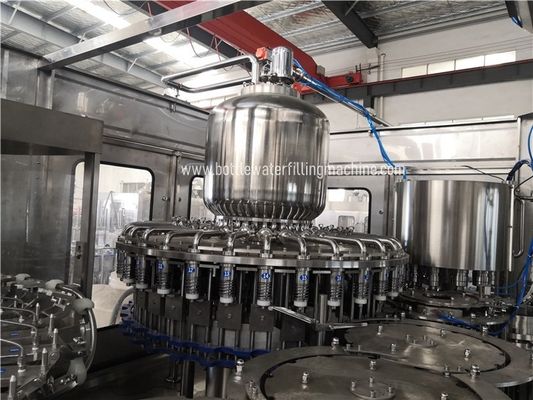

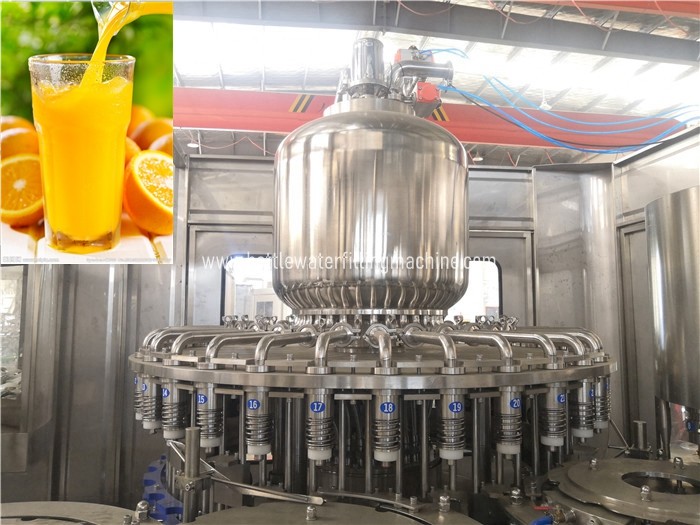

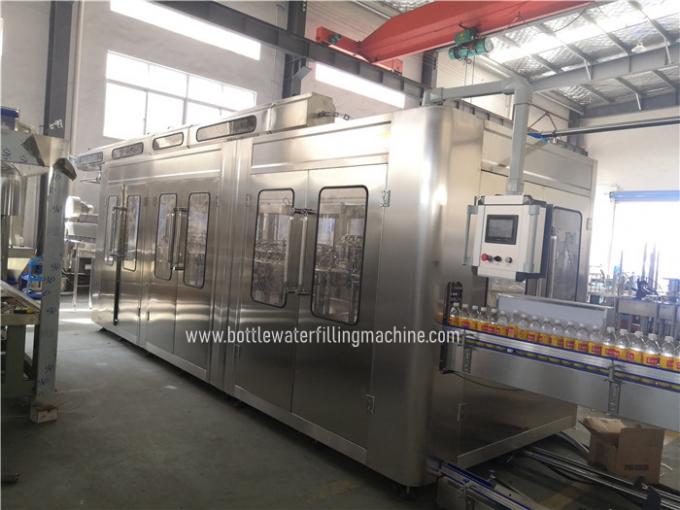

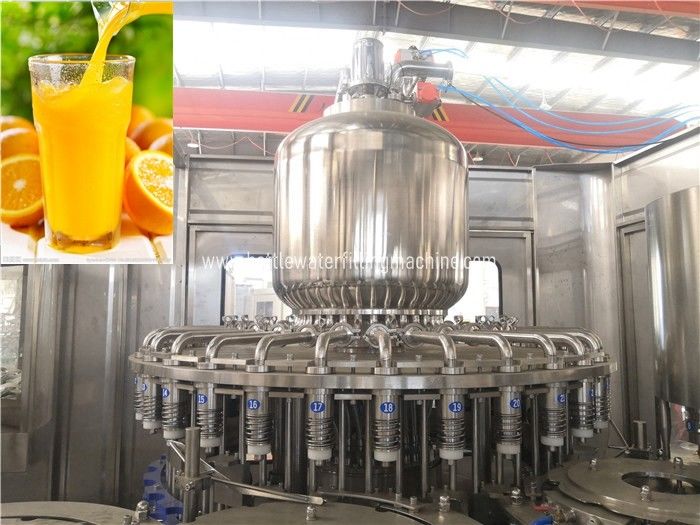

Juice Filling machine:
The star-wheels drive the bottles always "by the neck" through the rinsing, filling and capping steps. For the various types of bottle, it is easy to adjust the structure for the operator by our specialized design.
Product bowl is to reduce the loss of heat.
If the temperature is low than the setting value, the filling valves will stop and return the last beverage in filling valve to recycle tank and return to UHT again to sterilize with
Juice Capping machine:
Rotative capping turret, suitable to the application of screw plastic caps on PET bottles
The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads.
The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
