Machine To Make Fruit Juice Juice Filling Machinery Tea Bottling Equipment

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE ISO
Model Number:	RCGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	40 working days
Supply Ability:	300 sets per year

Contact Now

Detailed Product Description

Name:	Filling Machine	Function:	Rinsing Filling Capping
Capaicty:	2000-30000BPH(500ml)	Filling Material:	Water, Juice, Flavor Beverage
Control:	PLC+HIM+Frequency Inverter	Filling Temperature:	Hot Filling
High Light:	30000BPH tea bottling equipment , PLC Juice Filling Machine , 500ml Juice Filling Machinery

Machine To Make Fruit Juice, Juice Filling Machinery, Tea Bottling Equipment

This is rinsing filling capping tribloc machine, can produce still water, juice, flavor drink, sauce, vinegar and other still beverage.
It adopt back-flow system, can hot filling, filling temperature can be 85 centigrade.

Main Features

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

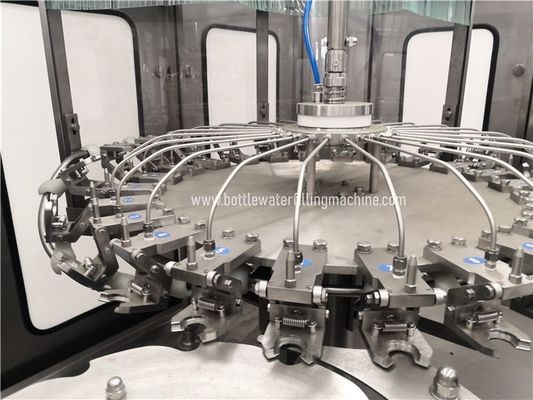

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

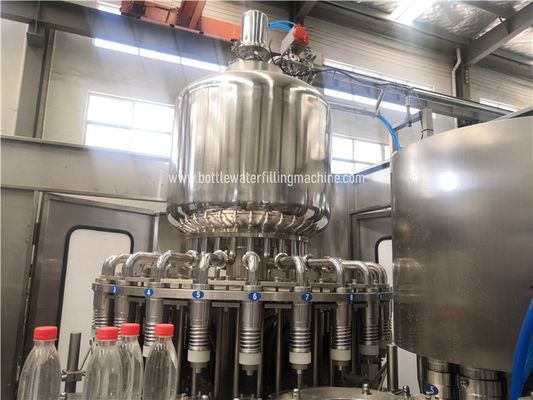

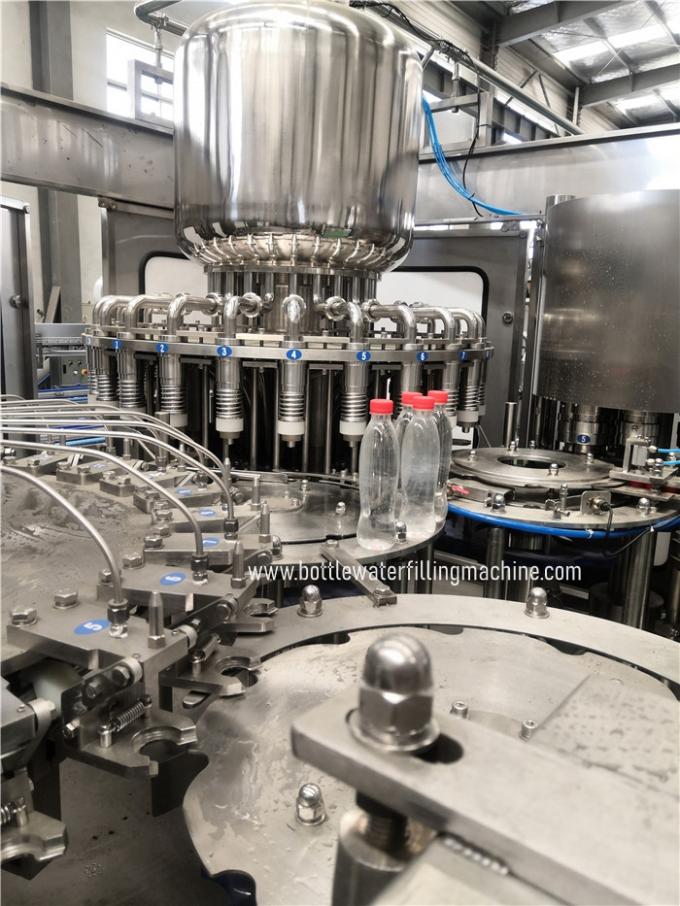

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.

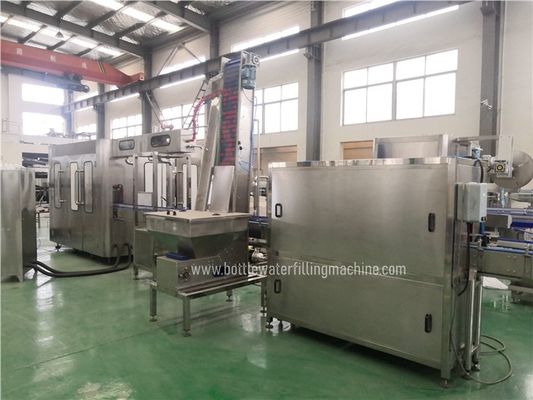

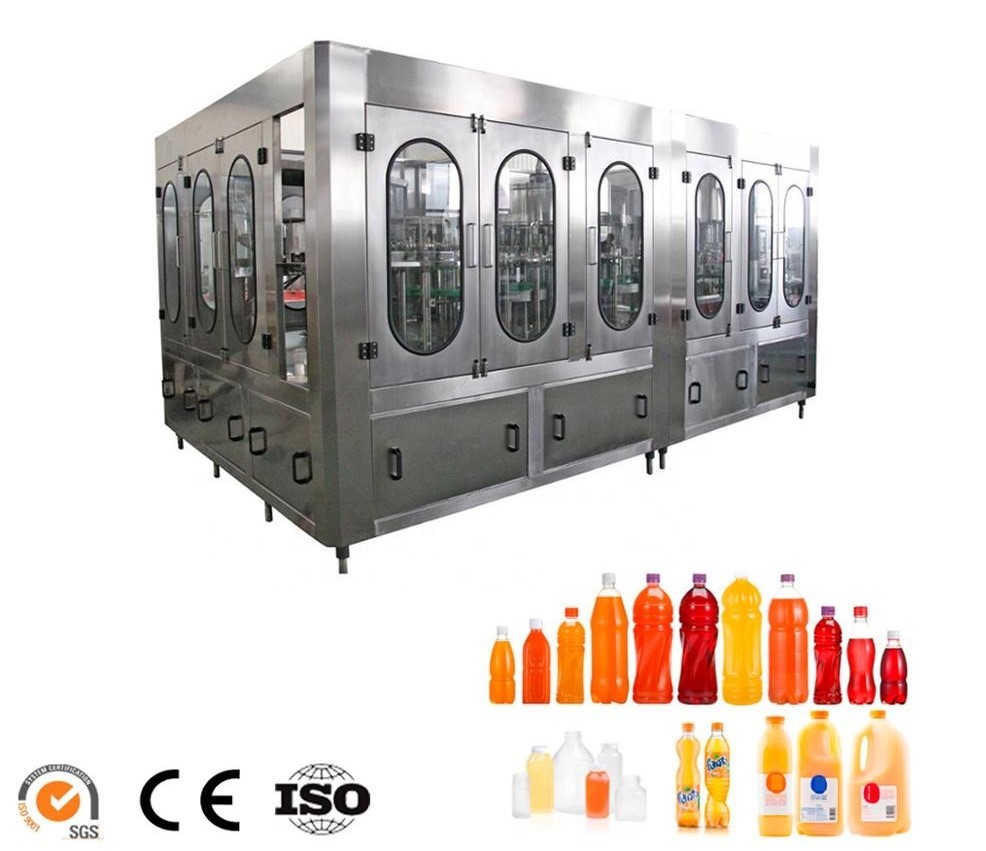

This is rinsing-filling-capping machine RCGF24-24-8

Machine To Make Fruit Juice Juice Filling Machinery Tea Bottling Equipment 0

Machine To Make Fruit Juice Juice Filling Machinery Tea Bottling Equipment 1

Technical parameter

Project Name: Full Automatic Complete Juice 2000-20000bph Production Line				Hot Filling Fruit Juice
Material	Shape	Filling volume	Filling level(mm)	Neck type
PET Bottle	Square or Round Bottle	100-2000ml	Distance from bottle neck According request	As request
Adjustable specifications of the bottle type	[Middle Mould Base]Bottle diameter ≤105mm Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.

Juice Preparation	Fruit , Concentrate, Powder mixing .....
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic		Packing system	Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
		Manual Film shrinker Wrap Around packer Robert Packing Machine	12 23 34 46 3*5





User Ambient Conditions		Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

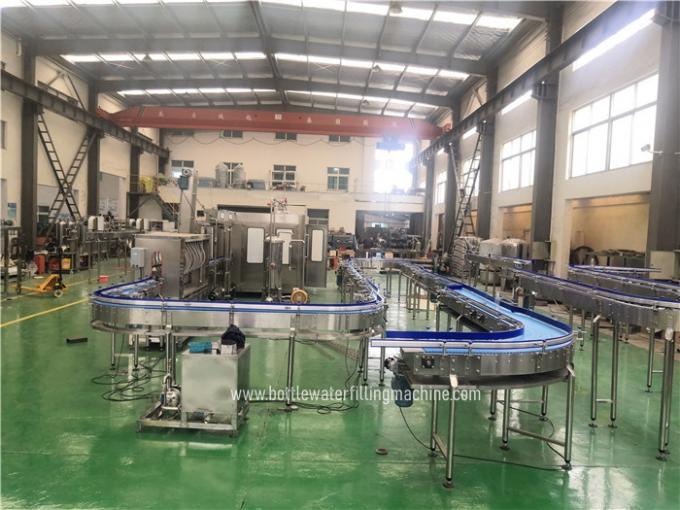

Other plants for juice line
Machine To Make Fruit Juice Juice Filling Machinery Tea Bottling Equipment 2

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China
