0.5L Mango Lemon Juice Filling Machine, Juice Making Machinery, Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE ISO
Model Number:	RCGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	40 working days
Supply Ability:	300 sets per year

Contact Now

Detailed Product Description

Name:	Filling Machine	Function:	Rinsing Hot Filling Capping
Capaicty:	2000-30000BPH(500ml)	Filling Material:	Water, Juice, Flavor Beverage
Control:	PLC+HIM+Frequency Inverter	Filling Temperature:	Hot Filling
High Light:	0.5L Lemon Juice Filling Machine , 0.5L Mango Juice Filling Machine , CE Mango Juice Production Line

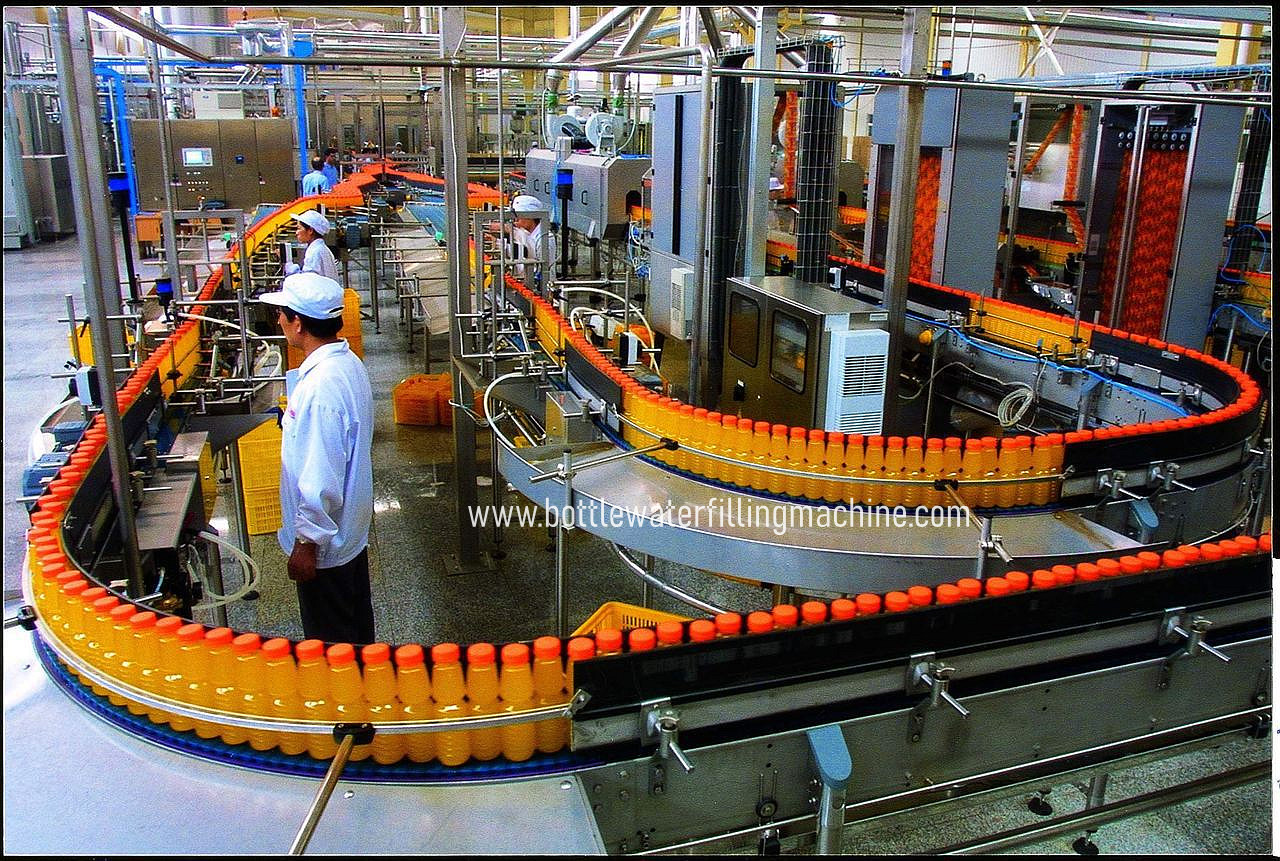

Mango / Lemon Juice Filling Machine, Juice Making Machinery, Production Line

This is rinsing filling capping tribloc machine, can produce still water, juice, flavor drink, sauce, vinegar and other still beverage.
It adopt back-flow system, can hot filling, filling temperature can be 85 centigrade.

Main Features

The machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectric inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.

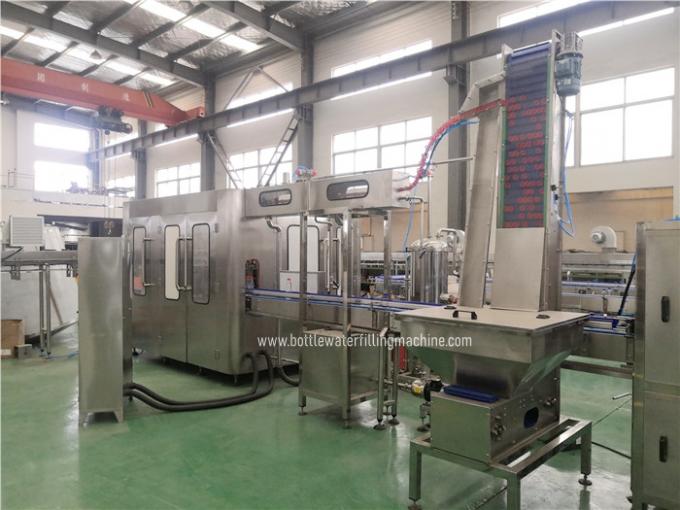

This is rinsing-filling-capping machine RCGF24-24-8

0.5L Mango Lemon Juice Filling Machine, Juice Making Machinery, Production Line 0

0.5L Mango Lemon Juice Filling Machine, Juice Making Machinery, Production Line 1

Technical parameter

Project Name: Full Automatic Complete Juice 2000-20000bph Production Line				Hot Filling Fruit Juice
Material	Shape	Filling volume	Filling level(mm)	Neck type
PET Bottle	Square or Round Bottle	100-2000ml	Distance from bottle neck According request	As request
Adjustable specifications of the bottle type	[Middle Mould Base]Bottle diameter ≤105mm Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.

Juice Preparation	Fruit , Concentrate, Powder mixing .....
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic		Packing system	Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
		Manual Film shrinker Wrap Around packer Robert Packing Machine	12 23 34 46 3*5





User Ambient Conditions		Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

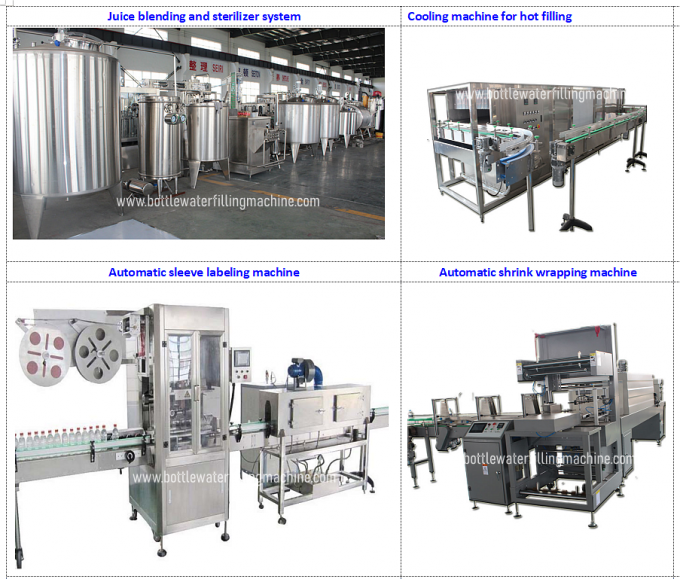

Other plants for juice line
0.5L Mango Lemon Juice Filling Machine, Juice Making Machinery, Production Line 2

FAQ

Q1:Do you have any reference project?

>> A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.

Q2:What's your guarantee or the warranty of the quality if we buy your machines?

>>A2:We offer you high quality machines with 1year guarantee . we will give u spare part free in 2 years.

Q3: Do you provide customized service?

>> A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.

Q4:When can I get my machine after I paid?

>> A4:We will deliver the machines on time as the date we agreed both side.

Q5:How can I install my machine when it arrives?

>> A5:We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.
