Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jiayuan |
| Certification: | CE SGS ISO |
| Model Number: | RCGF12-12-12-4 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $15,000 - 800,000 / Set |
| Packaging Details: | wooden box |
| Delivery Time: | 30 work days |
| Supply Ability: | 10 Set/Sets per Month |
| Driven Type: | Electric | Voltage: | 380V 50Hz |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Overseas | Control System: | PLC Control |
| Material: | Food Grade Stainless Steel 304 | Capacity: | 3000BPH(500ml) |
| High Light: | Pulp pet bottle filling and capping machine,volumetric pet bottle filling and capping machine,2000ml Automatic Liquid Filling Machines |
||
Quick information:

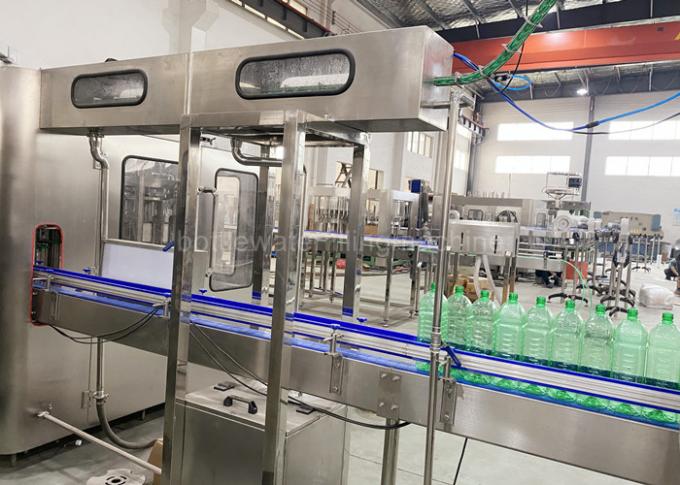

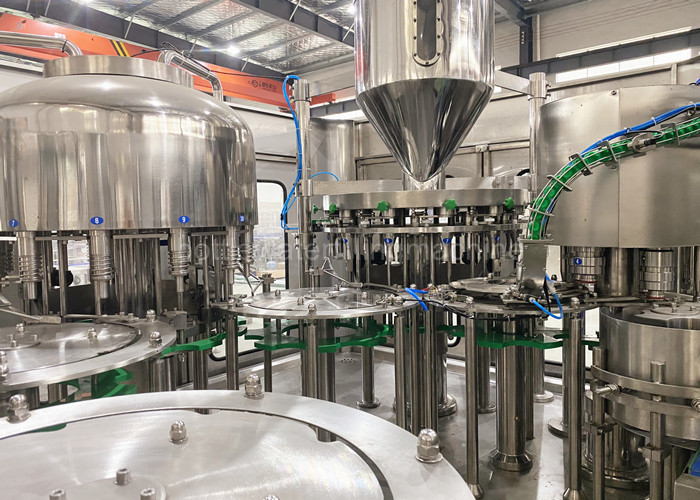

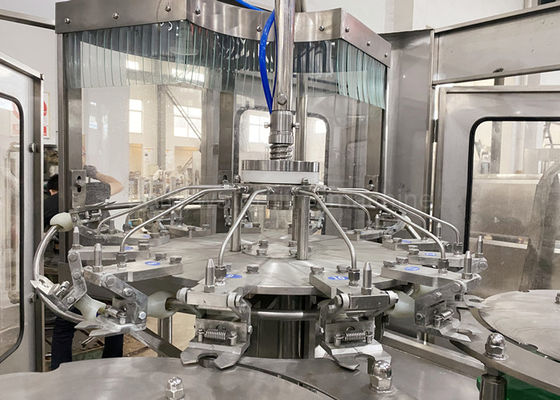

This machine is customized by customer's special requirements.It can fill juice,tea drink,flavored water,milk drink etc into plastic/PET bottle.It integrates washing,juice filling,pulp filling, capping four functions into one machine.It is suitable for 200-2000ml bottle.It is widely used for beverage factory.
Main features
The machine adopts advanced SIEMENS programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectric inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.
Technique parameter
| Model | RCGF12-12-12-4 |
| Productivity | 3000BPH |
| Rinsing Head | 12 |
| Filling Head | 12 |
| Filling head(Pulp) | 12 |
| Capping Head | 4 |
| Bottle Volume | 200ml~2000ml±10ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Gas Consumption | 0.3 m3/min |
| Motor Power | 4.03kW |
| Voltage | 380V/50HZ,3 phase |
| Dimension(L×W×H) | 2450*1800*2200mm |
| Weight | 3000kg |
| Filling Principle | Gravity Filling |
