Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jiayuan |
| Certification: | CE ISO SGS |
| Model Number: | GF12-4 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $8,700-500,000 / Set |
| Packaging Details: | Plastic film wrapping,wooden boxes packaging |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 Set/Sets per Month |
| Filling Material: | Non-gas Beverage | Weight: | 3450KG |
|---|---|---|---|
| Function: | Filling Sealing | Can Volume: | 200-2000ml |
| High Light: | Soymilk Tin Juice Filling Machine,6000CPH Tin Juice Filling Machine,6000CPH tin can filling machine |
||

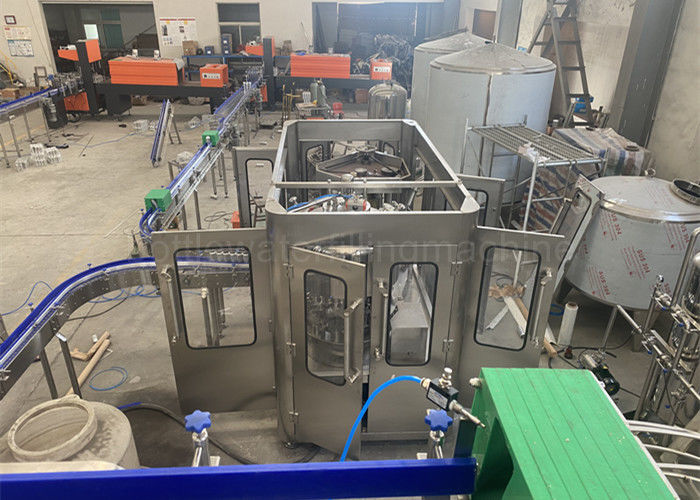

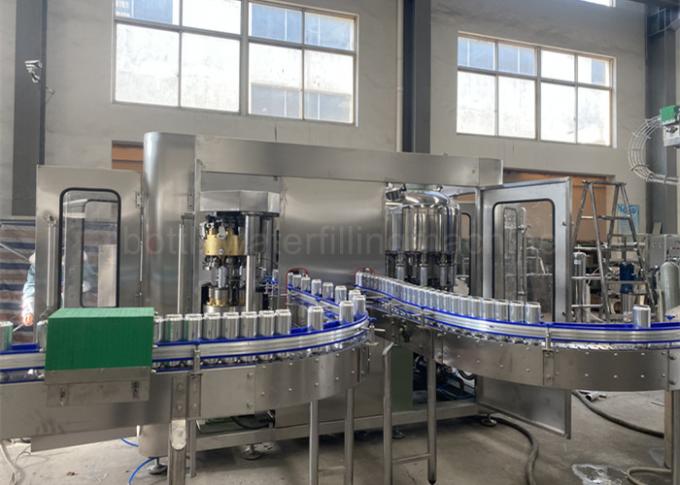

Structure of 2 in 1 monoblock can filling sealing machine

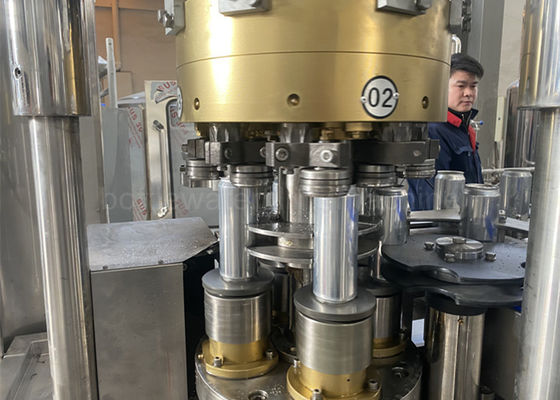

The machine is composed of worktable, hydraulic cylinder and height adjusting mechanism, can feeding conveyor belt, lifting cage, cam bracket, hook chain, lid conveying mechanism, can supporting plate, sealing body, pressure head, sealing wheel, lid capping head, can outlet conveying belt, can pulling wheel, transmission system,CIP cleaning system, electrical system and other parts.

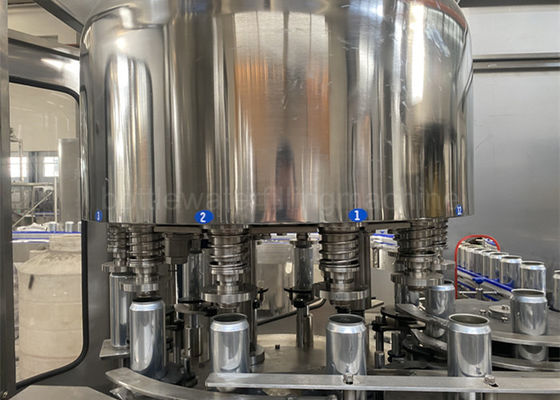

The filling parts are mainly composed of material cylinder, feed pipe, return pipe assembly, filling valve assembly, height adjusting component, tray component and transmission bracket.
When the empty can is input by the can feeding conveyor belt, the can entering dial plate is opened by the dividing screw, and then it is transferred to the lifting tray by the feeding dial. At this time, the tray rises along the cam to seal the empty can and the filling valve, and at the same time, the filling valve is opened for filling process. When the can is full of liquid material, the tray drops under the action of cam, so that the can and the filling valve are disconnected, and the filling valve is closed at the same time. In the process of filling, the filling valve is opened or closed due to the rising or falling of the jar. In this way, the machine can not be filled.
Technical parameter of can filling machine
|
GF12-4 |
|
|
Capacity (can/Hour) |
6000 |
|
Suitable can size ( ml ) |
Can diameter: 54.9mm; 57.5mm Can height:134mm; 168mm
|
|
Can size |
200/202/206/209 |
|
Heads of filling |
12 |
|
Heads of sealing |
4 |
|
Compressed air:
|
0.4-0.8mpa, flow rate: 0.16m3/min |
|
Filling temperature(℃ ) |
Normal temp |
|
Power source specification |
AC380V/50HZ |
|
Power (kw) |
10 |
|
Overall dimension(mm) |
3450*1600*2150 |
|
Weight(kg) |
3450 |

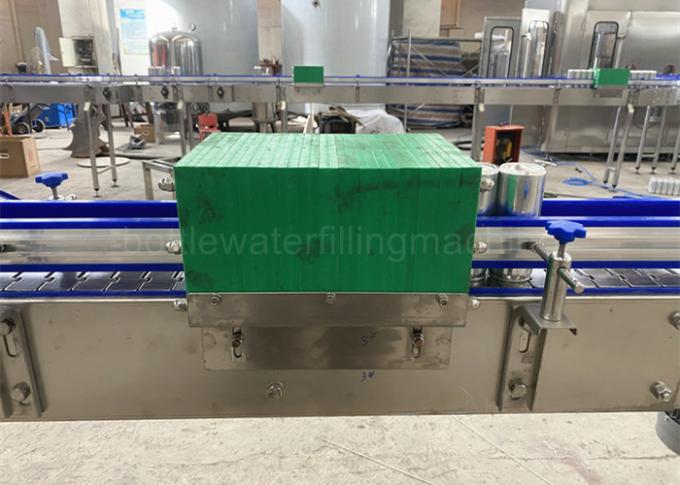

Can tipper----It is used for turning over the can from top to bottom,so it can be printed by the inkjet code printer.
