500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH

500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH

    • 500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH
    • 500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH
    • 500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH
    • 500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH
    • 500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH
  • 500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: jiayuan
    Certification: CE,ISO,SGS
    Model Number: RCGF32-32-10

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: US $15,000 - 800,000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 work days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Voltage: 380V 50Hz Dimension(L*W*H): 3600*2800*3150mm
    Weight: 5000KG After-sales Service Provided: Engineers Available To Service Overseas
    Warranty: One Year For Free Material: Food Grade Stainless Steel 304
    Filling Capacity: 14000BPH(500ml) Bottle Type: PET/Plastic

    500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH

    Features

    a. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

    b. The machine can be connected with UHT, CIP control center and bottle-invert sterilizer

    c. Safe protective devices ensure safety of operator and machine

    d. Magnetic torsion type screw capper ensures the tightness of the cap and avoids bottle damage

    e. The module of screw capper ensures the tightness of the cap and avoids bottle damage

    f. Slight negative-pressure gravity circumfluence filling system increases juice filling accuracy and reduces contamination

    g. Unique control mechanism keeps circumfluence volume below 5%

    h. Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

    i. High efficient clean air filter circulation system ensures high sanitary requirements

    j. Low overall machines noise that is comparable to any internationally known equipments in its class

    k. Self-lubricationg system imported from America provides continuous smooth operation



    Technique parameter

    Model RCGF18-18-6 RCGF24-24-8 RCGF32-32-10
    Productivity 6000BPH 10000BPH 14000BPH
    Rinsing Head 18 24 32
    Filling Head 18 24 32
    Capping Head 6 8 10
    Bottle Volume 350ml~2000ml±10ml
    Bottle Diameter φ50-92mm
    Bottle Height 150-310 mm
    Filling Tolerance ±2%
    Cap Size 28mm and 30mm PE Standard Caps
    Air Pressure 0.6MPa
    Air Consumption 500 L/min
    Filling Water Consumption 3 m3/h 6 m3/h 9m3/h
    Rinsing Water Consumption 1 m3/h 2 m3/h 3m3/h
    Motor Power 6.68kW 7.68kW 9.18kw
    Voltage 380V
    Dimension(L×W×H) 2450*1800*2200mm 2750*2180*2200mm 3600*2800*3150mm
    Weight 3000kg 4000kg 5000kg
    Filling Principle Gravity Filling
    Product introduction
    This machine is my company's introduction of German technology. The machine has excellent mechanical operation reliability, improved rinsing, filling, cover screwing, disinfection sterilization and other functions.

    All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.The automatic 3 in 1 juice filling machine was equipped with suspension type air conveyor and frequency control of motor speed.

    This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special back-flow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.
    This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the

    efficiency a lot.





    Pictures

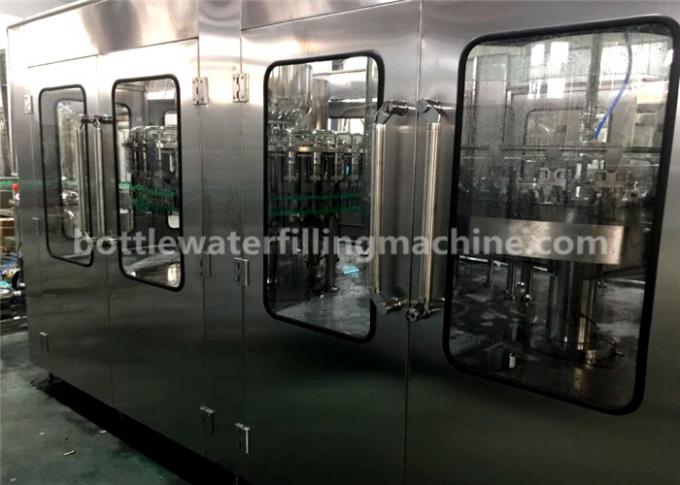

    500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH

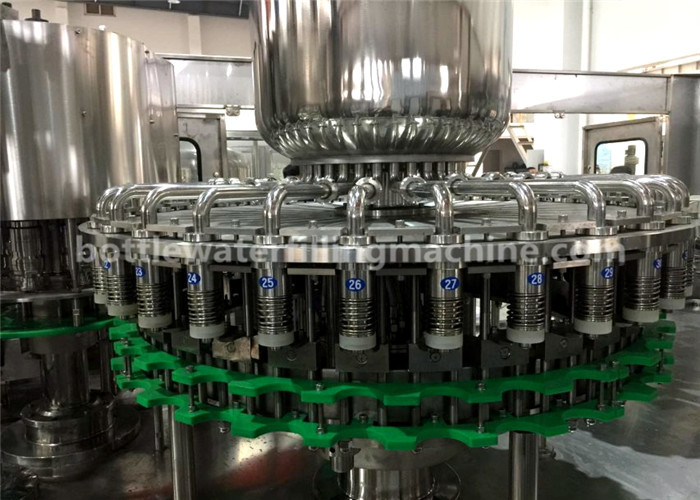

    500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH

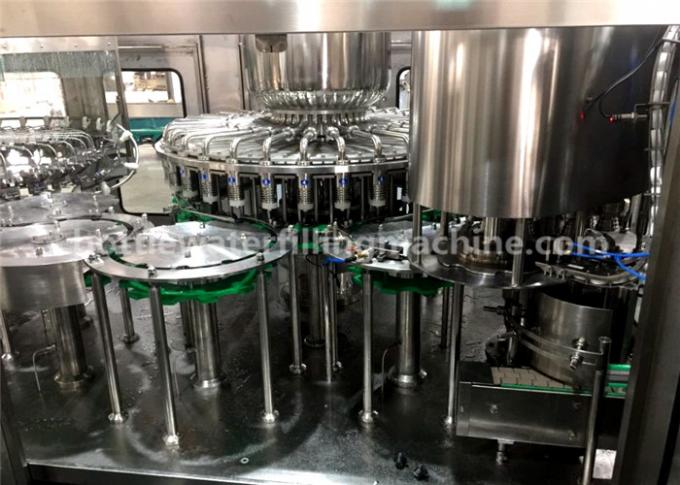

    500ml Juice Bottle Rinsing Filling Capping And Packing Machine 14000BPH
