Automatic Carbonated Water Washing Filling Capping 3 In 1 Filling Machine Customized

rinsing machine

1) The rotary wheel is a fully AISI304 stainless steel welded structure.

2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

4) Covering of bottle clamps and elevator are product of IGUS. The rinse is driven by driving system positioned inside machine frame via gear transmission

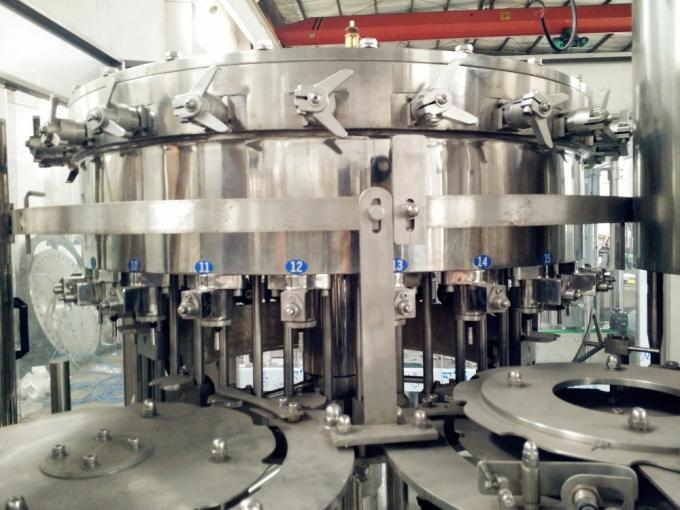

filling machine

1) The filler is designed and manufactured with application of Italy technology, providing hardware guarantee for securing product quality and reducing loss. Rotary wheel are fully made of stainless steel AISI304.

2) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.

3) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.

4) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free

bearing. Hydraulic pump is float-ball controlled.The filler is driven by driving system positioned inside machine frame via gear transmission

capping machine

1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.

2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.

3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.

4) Highly effective acentric way for cap sorting to reduce the abrasion. It has the check-up device to control the cover lift.

Company Information

Jiayuan company was established in 1997, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have such as CE,ISO etc certification.
We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs, imported facilities of concentration distill series, automatic CIP series, PLC control etc.

Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported over 20 countries, and gained favorable feedback from users. Our major engineering projects include complete dairy products production line, beverage production line, biochemical engineering production line.
