Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jiayuan |
| Certification: | CE SGS ISO |
| Model Number: | CGF16-16-5 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $15,000 - 800,000 / Set |
| Packaging Details: | wooden box |
| Delivery Time: | 30 work days |
| Supply Ability: | 10 Set/Sets per Month |
| Application: | Beverage, Chemical, Food | Driven Type: | Electric |
|---|---|---|---|
| Voltage: | 380V 50Hz,three Phase | Control System: | PLC Control+Touch Screen |
| Bottle Type: | Plastic Bottle | Capacity: | 3000BPH |
| Bottle Volume: | 5L | Warranty: | One Year For Free |
| High Light: | automatic bottling machine,automatic water bottle filling machine |
||
Video show https://www.youtube.com/watch?v=Lr1YHsi1D5A&feature=share
Usage: washing, filling and capping 3 in 1 monoblock is used for filling liquid into PET bottle. Full automatically; it can finish washing (bottle), filling and capping three jobs in the one machine.
Detailed pictures

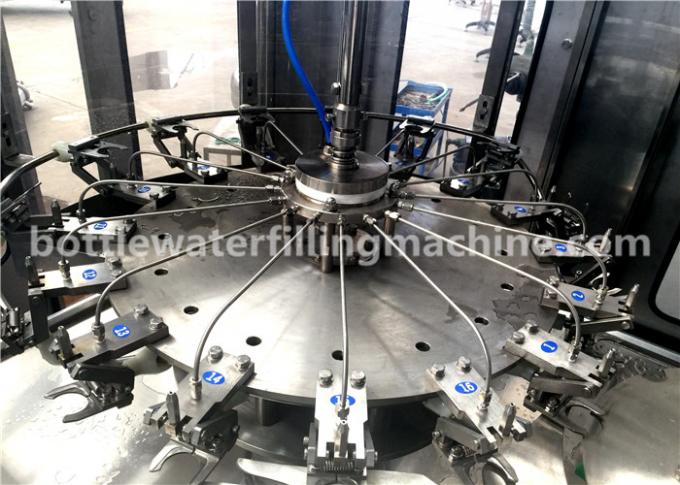

Washing part
All 304 stainless steel washing heads, water spray style inject design, more save water consumption & more clean
304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
304 stainless steel washing pumps

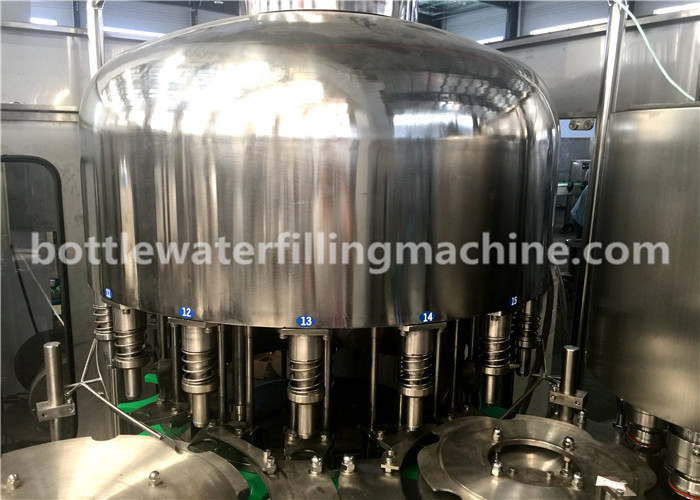

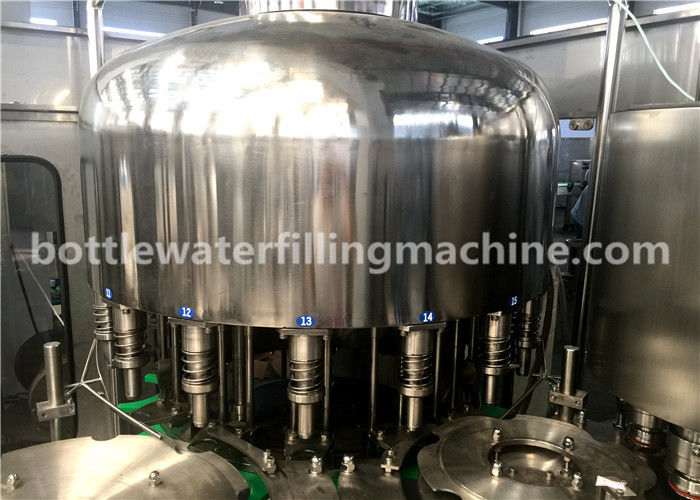

Filling part
The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitate system, to ensure the high filling precision, ensure same filling level
Filling temperature is adjustable.
Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
No bottles no fill
Bottle struck no run

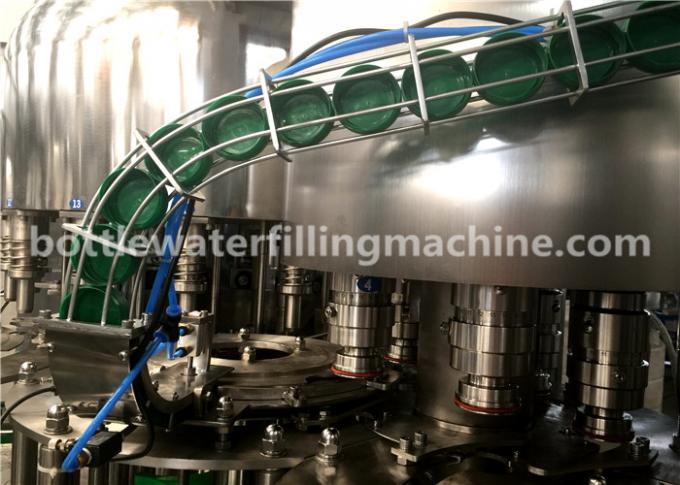

Capping part
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304stainless steel construction
No bottle no capping,
Automatic stop when lack of caps
Main configuration
Main motor ---- Zhejiang
Speed reducer ---- Hangzhou company
Liquid feedback pump and spraying pump ---- domestic brand
Touch screen ----Taiwan Weinview company
PLC control ---- Mitsubishi, Japan
Inverter Mitsubishi ---- Japan
Contact switch, photoelectric switch ----DELIXI
Optoelectronic switch ---- DELIXI
Cylinder, the electromagnetic valve ect ----Taiwan Weinview Company
Mineshaft bearing ---- Harbin bearing company
Capper bearings ---- Harbin bearing company
The part that contact with liquid material will all 304SS.
Technical parameter
| Model | CGF16-16-5 |
| Production capacity(5L)(b/h) | 3000 |
| Washing heads | 16 |
| Filling heads | 16 |
| Capping heads | 5 |
| Filling precision | ≤±5MM(Liquid Level) |
| Suitable cap shape | Plastic Screw Cap |
| Gas source pressure(Mpa) | normal pressure |
| Compressed air(Mpa) | 0.5-0.6Mpa |
| Main motor power(kw) | 2.2 |
|
Spraying pump power(kw) |
0.55 |
|
Liquid feedback pump(kw) |
0.55 |
|
Water consumption |
1.5T/h |
|
Weight(kg) |
3600 |
| Dimension(L*W*H) |
3500*2200*2250mm |
Features
1. Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.
2. Only exchanging “star wheel”, ”feeding screw” and “arc guide plate” while exchanging model of bottle to be need.
3. The all parts directly contacted with media are all adopted with food stage stainless steel without dead angle, so they can be cleaned easily.
4. Adopting advanced valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
5. Closing feeding valve automatically while no bottle on machine avoiding the loss of aqueous feet. Filling automatically with a high speed and the control of liquids level is accurate.
6. High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
7. The “capping head” is adopted magnetic-constant-torque device to ensure the high capping quality and without damages.
