Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jiayuan |
Certification: | CE SGS |
Model Number: | RCGF |
Minimum Order Quantity: | 1 set |
---|---|
Price: | US $1,000 - 58,000 / Set |
Packaging Details: | Wooden case is our usual practice, we can also pack as our customer's requirement |
Delivery Time: | 25 work days |
Supply Ability: | 5 Set/Sets per Month |
Type: | Filling Machine | Driven Type: | Electric |
---|---|---|---|
Filling Material: | Flowing Liquid | Material: | Stainless Steel |
Condition: | New | Control: | Touch Screen |
Packing: | Wooden | Feature: | Easy Operate |
Service: | Engineer Oversea | Color: | Silvery White |
High Light: | PET Bottle Filler Machine,Beverage Filling Line |
Stainless Steel engineer guided juice production line machine with low consumption
JUICE MACHINE PROFILE

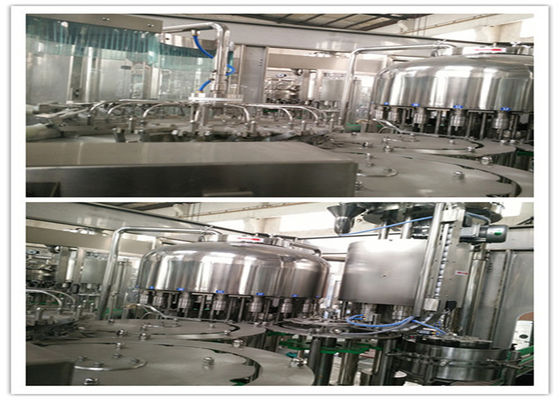

Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
FEATURES
1) Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.
2) Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3) Automatic checking: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
4) Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5) Horizontal conveyor style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6) The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7) Use the plastic bearing; don't need put on oil, less pollution.
8) Use no oil vacuum pump; avoid polluting the environment in the production.
9) The open zipper framework is special in the feature of zipper bag, it can avoid distortion or destroy when open zipper.
10) The packing materials loss low, what this machine is used the reformed bag, the bag pattern is prefect and has a high quality of the sealing part, this improved the product specification.
Parameter:
Model | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 |
Production capacity(500ml)(b/h) | 3000 | 6000 | 10000 | 14000 |
Filling precision | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) | ≤±5MM(Liquid Level) |
Feedback consumption | ≤10% | ≤10% | ≤10% | ≤10% |
Polyester bottle standard(mm) | (BottleDiameter)50-92;(Height):150-310 | (BottleDiameter)50-92;(Height):150-310 | (BottleDiameter)50-92;(Height):150-310 | BottleDiameter)50-92;(Height):150-310 |
Suitable cap shape | (Plastic Screw Cap) | (Plastic Screw Cap) | (Plastic Screw Cap) | (Plastic Screw Cap) |
Water pressure of washing bottle(Mpa) | 0.18 | 0.18 | 0.18 | 0.18 |
Wash pressure of washing bottle(kg/h) | 800 | 1600 | 2500 | 3500 |
Gas sourse pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
Gas consumption(m3/min | / | 0.3 | 0.4 | 0.5 |
Total power | 5.88 | 6.68 | 7.68 | 9.18 |
Total weight | 2500 | 3000 | 4000 | 5000 |
Dimensions(L*W*H)(mm) | 2100×1500×2200 | 2450×1800×2200 | 2750×2180×2200 | 3600×2800×315 |
Zhangjiagang Jiayuan Machinery Co., Ltd. is located in Zhangjiagang city, which is near to Shanghai. We professionally research, develop and manufacture beverage packaging machines. We are a high technology enterprise of Jiangsu Province, and the best supplier of China beverage packaging machinery area. We are dedicated to the most advancement technology of beverage packaging machinery, and have always been conducting good up-to-date technical communication and exchange with leading Italy, Germany, France packaging companies. We have a strong technology team for beverage packaging machines’ manufacture. We provide marketing analysis, project budget, equipment technical configuration, and training for operator etc.
1.Installation
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
