Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jiayuan |
| Certification: | CE ISO SGS |
| Model Number: | GF12-4 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | US $8,700-500,000 / Set |
| Packaging Details: | Plastic film wrapping,wooden boxes packaging |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 Set/Sets per Month |
| Capacity: | 6000 Cans Per Hour | Filling Material: | Juice,Wine,Vodka,Water |
|---|---|---|---|
| Function: | Can Filling Sealing | Filling Pressure: | Normal Pressure |
| Warranty: | One Year For Free | Driven Type: | Electric |
| High Light: | 54.9mm can Beverage Filling Machine,54.9mm can Vodka Filling Machine,10kw Vodka Beverage Filling Machine |
||
Production Description of can filling machine
This can filling machine is developed by our company on the basis of reference to the foreign filling and sealing machine for non gassy beverage and combining with China's national conditions.It is mainly used for filling and sealing all kinds of iron and aluminum cans.It has the characteristics of fast filling and sealing speed, consistent height between the liquid level in the tank and the opening after filling, stable operation of the whole machine, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, frequency conversion speed regulation and so on. It is the most ideal filling and sealing equipment for canning factories.This product conforms to the national standards and enterprise standards, and is allowed to leave the factory after passing the strict inspection and test.
Technical parameter of can filling machine
|
GF12-4 |
|
|
Capacity (can/Hour) |
6000 |
|
Suitable can size ( ml ) |
Can diameter: 54.9mm; 57.5mm Can height:134mm; 168mm
|
|
Can size |
200/202/206/209 |
|
Heads of filling |
12 |
|
Heads of sealing |
4 |
|
Compressed air:
|
0.4-0.8mpa, flow rate: 0.16m3/min |
|
Filling temperature(℃ ) |
Normal temp |
|
Power source specification |
AC380V/50HZ |
|
Power (kw) |
10 |
|
Overall dimension(mm) |
3450*1600*2150 |
|
Weight(kg) |
3450 |

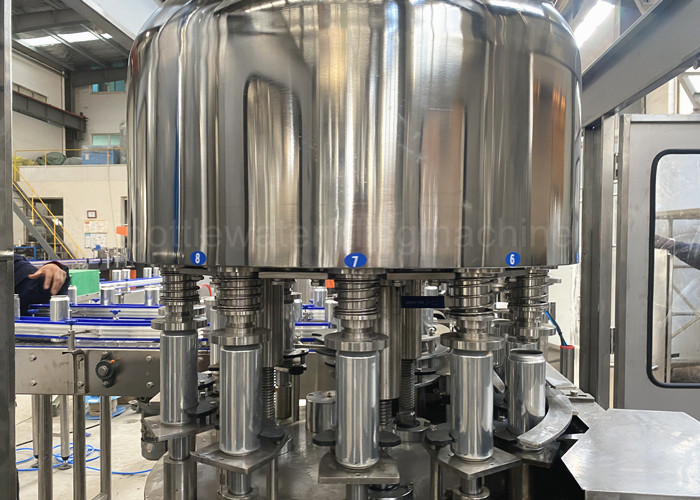

Main image show of can filling machine
Can feeding part
The feeding and conveying parts are mainly composed of conveying support, conveying chain plate, feeding dial assembly and dividing screw assembly. The can is driven into the conveyor belt by the chain plate, and evenly enters into the can feeding dial through the can dividing screw, and then is sent to the filling valve of the filling cylinder for filling
Lid dropping part
The lid dropping parts are mainly composed of fixed plate, cover shifting plate, inner and outer guide plate, transmission gear box, cover splitter, cover cutter, casting box and cover dropping seat.
We can supply you with complete aluminum can filling production line for juice or water ot carbonated drink,just give us your requirements,you can inquiry me freely,I will contact you in time.
