PET Bottle Orange Juice Filling Machine / Pineapple Mango Juice 14000BPH 2000ml

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE SGS
Model Number:	RCGF32-32-10

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	please inquirey
Packaging Details:	standard exporting packing
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Product Name:	Juice Filling Machine	Filling Material:	Juice, Flavor Drink, Water
Filling Heads:	32	Bottle Size:	200-2000ml
Capacity:	10000-14000BPH	Material:	Stainless Steel SUS304
High Light:	PET Bottle Mango Juice Filling Machine , 14000BPH PET Juice Filling Machine , 2000ml PET Juice Filling Machine

PET Bottle Orange Jucie/ Pineapple Juice, Mango Juice Filling Packing Machine

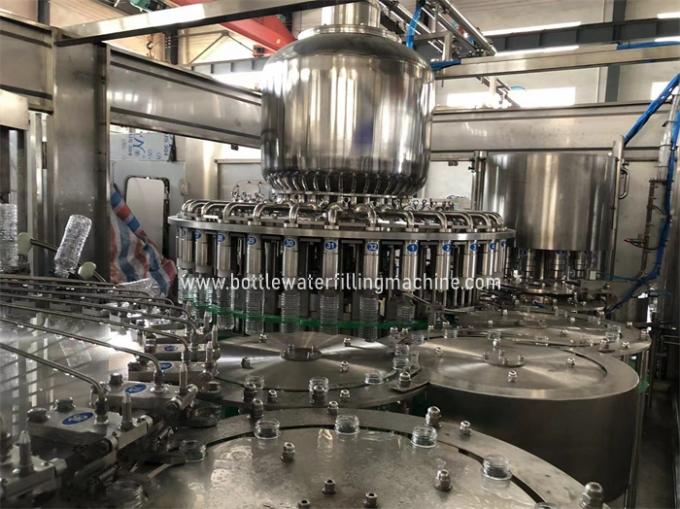

This is washing filling capping 3 in 1 machine, it can produce all kinds of fruit juice, flavor beverage, dairy drink, tea drink, water and other still beverage.

The bottle is from 200ml to 2000ml.

This machine has 32 washing nozzles, 32 filling nozzles, 10 capping heads, capacity can be 13000 bottles per hour (based on 500ml).

It can fill of hot filling.

PET Bottle Orange Juice Filling Machine / Pineapple Mango Juice 14000BPH 2000ml 0

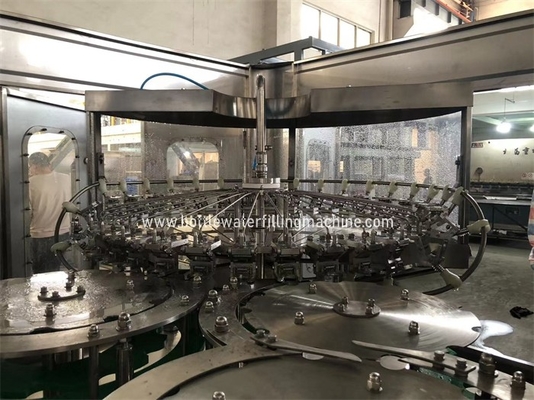

washing parts:

Into bottle way is air conveyor direct connection with bottle dial.
- All 304 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304 stainless steel washing pump make the machine more durable.

PET Bottle Orange Juice Filling Machine / Pineapple Mango Juice 14000BPH 2000ml 1

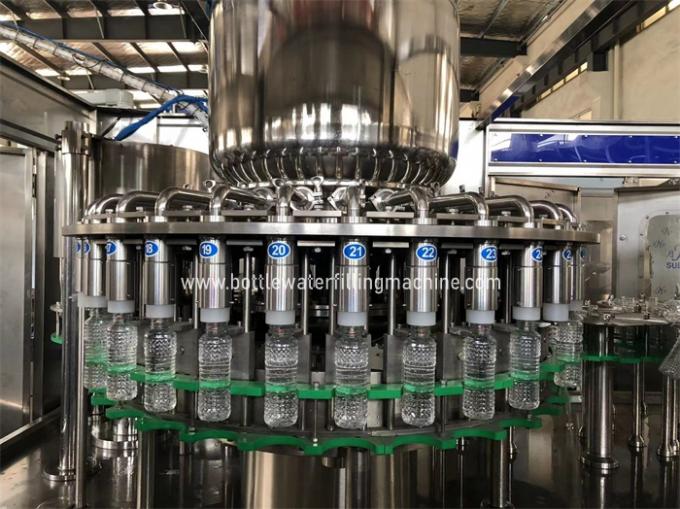

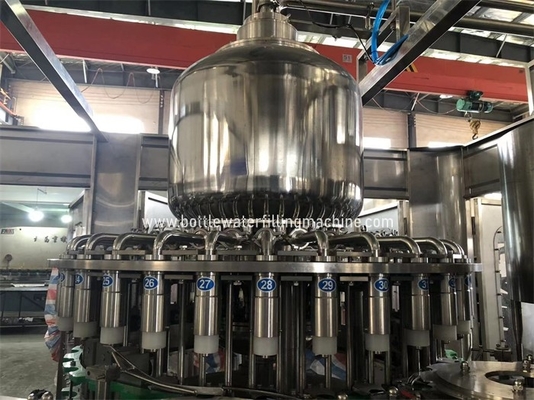

filling parts:

- 304 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing

PET Bottle Orange Juice Filling Machine / Pineapple Mango Juice 14000BPH 2000ml 2

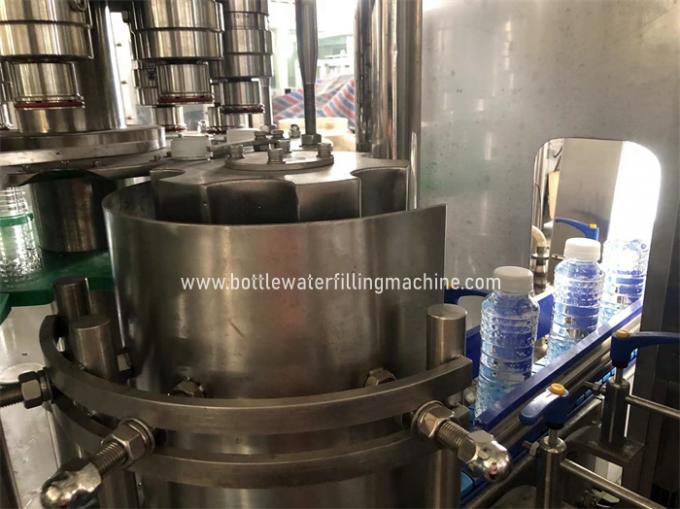

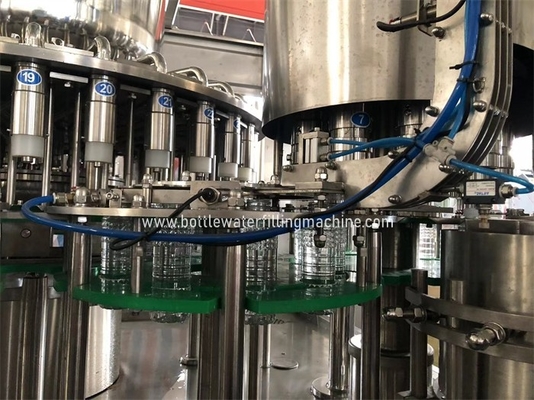

capping parts:

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.15%


			Model
			RCGF16-12-6
			RCGF18-18-6
			RCGF24-24-8
			RCGF32-32-10
			RCGF40-40-12
			RCGF50-50-15


			rising heads
			16
			18
			24
			32
			40
			50


			filling heads
			12
			18
			24
			32
			40
			50


			capping heads
			6
			6
			8
			10
			12
			15


			Bottle standard(mm)
			Diameter:Φ50-Φ108
Height:150-320



			Rated production capacity(B/H for 500ml)
			4000
			6000
			10000
			15000
			20000
			24000


			Installed capacity(KW)
			3.8
			4.3
			6.5
			8.7
			9.5
			12


			Overall size L*W*H(mm)
			3050*2000*2400
			3170*2070*2400
			4070*2350*2400
			5100*2600*2400
			6250*3050*2400
			7500*3900*2400

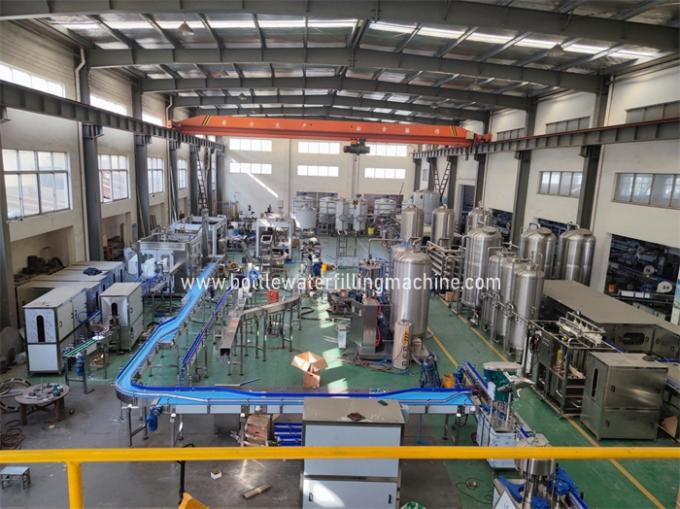

OUR FACTORY
