Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
|Place of Origin:||China Mainland|
|Model Number:||QS-12; CYG-12; FXZ-1|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case for shipment|
|Delivery Time:||20 days|
|Payment Terms:||T/T; L/C|
|Supply Ability:||10 sets/month|
|Bottle Type:||PET|Glass Bottle|Barrel||Capacity:||2000bph|500ml|
|Feature:||Aseptic||Product Name:||Beverage Filling Line|
Liquid Barrel Filling Equipment,
Beverage Filling Line

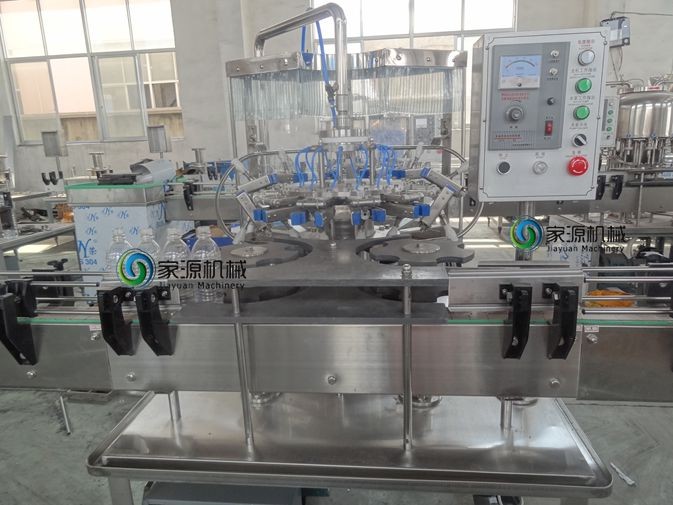

CE , SGS Auto Beer Cans Filling Euqipment 2000BPH With Capping Machine
Zhangjiagang pure water filling system
Zhangjiagang pure water filling system
1) The machine can carry out the three functions of bottle washing, filling, capping.
2)The advanced programmed controller (PLC) is adopted to control the machine running automatically.
3) The bottle entry section adopts air conveyor system.
4) The bottle exit section adopts belt conveyor system, which can adjust the speed.
5) The machine are high quality, the key spare-parts are made buy famous producer.
Small capacity mineral water bottling machine fills all kind of NON-carbonated beverage and low thickness beverage and fruit powder mixing drinks. All parts of this machine is made of stainless steel materials, it cannot cause rust to influence the filling beverage, it not only reach the standard of sanitation, but also prolong its using life
L. The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Transfer starwheel
7. Made of stainless steel of superior quality.
8. Equipped with bottle jam protection device.
L. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
6. Level of cylinder is controlled with float-ball.
7. Filler is driven through gears inside the machine frame.
8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.
L. The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai Jiao Tong University, and uses the technology of Arol from Italy, most advance technology in the world, developed with the experience of asepsis filling machine. For example, I) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic design of the wheel by experts improves the stability and credibility of the equipment. II) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.
2. Cap distributing chute is equipped with reverse cap stop and reverse cap pick-out mechanism.
3. Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
4. The capper is equipped with inlet bottle detection switch.
5. Centrifugal way of cap arranging is adopted to reduce damage of caps.
6. A cap inspecting system is applied to control on-off of elevator.
1).It is ideal equipment for producing mineral water, super-pure water, space water and distilled water.
2).Advanced PLC control system (famous brand)
3).The key parts are imported and their quality is reliable.
4).The whole machine is made of stainless steel (304/316)
5).Its structure is reasonable and its operation is convenient.
6).Easy cleaning and corrosion.
