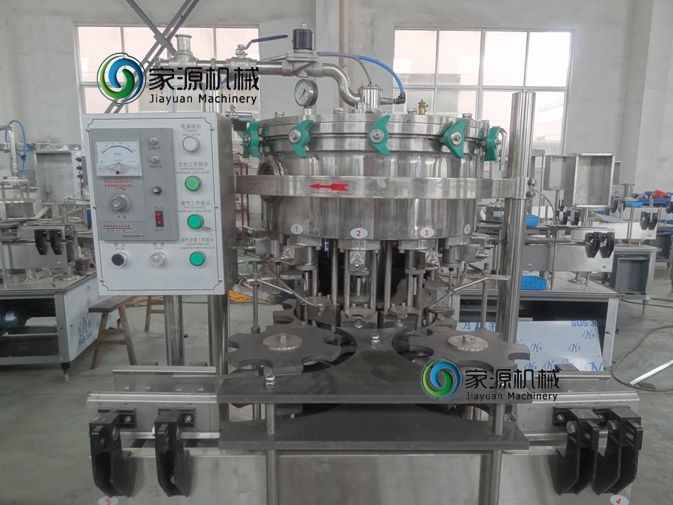

SS 304 Mini Beverage Filling Machine 3 in 1 For Carbonated Drinks PET Bottle

SS 304 Mini Beverage Filling Machine 3 in 1 For Carbonated Drinks PET Bottle

    • SS 304 Mini Beverage Filling Machine 3 in 1 For Carbonated Drinks PET Bottle
    • SS 304 Mini Beverage Filling Machine 3 in 1 For Carbonated Drinks PET Bottle
  • SS 304 Mini Beverage Filling Machine 3 in 1 For Carbonated Drinks PET Bottle

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: QS-12; CGF-12; FXZ-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD10500
    Packaging Details: Wooden case for shipment
    Delivery Time: 20 days
    Payment Terms: T/T; L/C
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Application: CSD|Juice|Beer|carbonated Drinks Automatic Grade: Auto
    Bottle Type: PET|Glass Bottle Function: 3 In 1
    Power: 5Kw Product Name: Beverage Filling Line
    High Light:

    PET Bottle Filler Machine


    Beverage Filling Line

    SS 304 Mini Beverage Filling Machine 3 in 1 For Carbonated Drinks PET Bottle
    Quick Detail:

    1. Products: Small carbonated drinks filling machine
    2. Production capacity: 2000bph PET bottle
    3. Bottle size: 250-1250ml
    4. Main material: SS304
    5. Certificate: CE&SGS

    Small carbonated drinks filling machine
    Small carbonated drinks filling machine
    1. This 3 in 1 carbonated soft drink filling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space.
    2. It is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 1200BPH to 12000BPH.
    3. It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.
    4. Adopting suspensory transmission gear can easily upkeep and be repaired.
    5. The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.


    This model special for carbonated beverage filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.






    Model: QS-12

    Production capacity: 2000bph

    PET bottle size: 250-12500ml

    Diameter of bottle: 62-100mm

    Height of bottle: 160-320mm

    Power: 0.75kw

    Dimension: 1170*1120*1800mm

    Weight: 800kg






    Model: DY-12

    Production capacity: 2000bph

    PET bottle inner diameter of inlet: 15-18mm

    Power: 0.75kw

    Dimension: 1000*800*2000mm

    Weight: 500kg






    Model: FXZ-1

    Production capacity: 2000bph

    Diameter of bottle: 50-100mm

    Height of bottle: 150-320mm

    Power: 0.75kw

    Dimension: 900*700*1900mm

    Weight: 350kg


    Competitive Advantage:
    Zhangjiagang Jiayuan machinery co., ltd was established in 1999, and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry. We have passed ISO9001, National GMP Technology Standard Evaluation, and inspections by National Pharmaceutical Equipment Inspection Center, and all products are designed and manufactured strictly according to standards such as ISO, SMS, IDF, DIN, QB/T2003, 2004, 3A as well as our internal standards.
    We are a company integrating scientific research, production and service, and have the best manufacturing facilities and production process, professional staffs; imported facilities of concentration distill series, automatic CIP series, PLC control etc. Now we have been a market leader in the Chinese food machinery industry. The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies. It has comprehensive development capacity and sound quality assurance system, and has made R&D achievement and obtained invention patents. Our machinery are widely sold in China, and exported through our sister company in group to Asia, Europe, America, Africa, over 50 countries, and gained  favorable feedback from users. Our major engineering projects include complete dairy products production line, beverage production line, and biochemical engineering production line. We have provided products to the following companies: Wahaha, Sanlu, Bright, Danone, Mengniu, Coca Cola, and Pepsi Cola etc.
