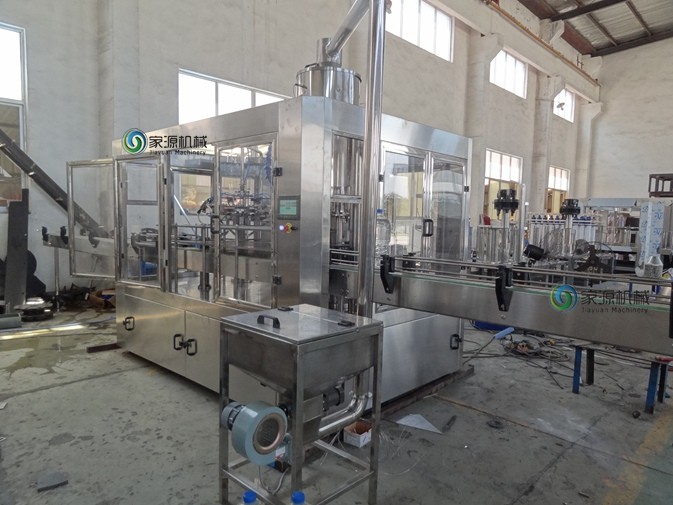

3 in 1 Monoblock Beverage Filling Machine 1000BPH For Plastic Barrel

3 in 1 Monoblock Beverage Filling Machine 1000BPH For Plastic Barrel

3 in 1 Monoblock Beverage Filling Machine 1000BPH For Plastic Barrel

Product Details:

Place of Origin: China Mainland
Brand Name: Jiayuan
Certification: CE,SGS
Model Number: BXGF9-9-4

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 25000USD
Packaging Details: Seaworthy Wooden Case
Delivery Time: 40 working days after down payment.
Payment Terms: T/T; L/C
Supply Ability: 20 sets/month
Contact Now
Detailed Product Description
Application: Liquid|CSD|Juice Automatic Grade: Auto
Capacity: 1000BPH Feature: Aseptic
Function: 3 In 1 Product Name: Beverage Filling Line
High Light:

PET Bottle Filler Machine


Beverage Filling Line

3 in 1 Monoblock Beverage Filling Machine 1000BPH For Plastic Barrel



Quick Detail:


  1. Capacity: 1000BPH
  2. Model: 3-in-1 type, BXGF9-9-4
  3. Applicable bottle type: 5-10L bottle
  4. Designed power supply: 380V/50HZ/3Phase/AC
  5. Customizable
  6. CE,ISO,SGS,3-A certificate

Automatic 1000BPH SUS304/316 BXGF9-9-4 3-in-1 5L-10L pure water filling machine




Brief Introduction:


5L Pure Water Filling Machine: BXGF9-9-4 washing, filling, capping 3 in 1 unit is new type equipment, which base on years’ usual practice and adopt the advanced technology, and absorb many clients’ views .It meets the client’s requirement about filling different bottle size via one set. The suspension card bottleneck is adopted to make changing the bottle size more convenient.  5L Pure Water Filling Machine is mainly used to non-carbonated beverage (pure water, mineral water or even oil filling).


Characteristic of 5L Pure Water Filling Machine:


(1) The 5L Pure Water Filling Machine has suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.


(2) The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.


(3) The advanced gravity filling technology used in 5L Pure Water Filling Machine makes the filling quick, steady and accurate.


(4) Magnetic torque is used for screw capping, and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.


(5) Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this 5L Pure Water Filling Machine.


(6) All parts that have direct contact with the water are made of high quality stainless steel. The critical electrical components are from famous international companies, such as Mitsubishi, Omron to name a few.





This 5L-10L pure water filling machine is used for making the following 5L bottles packed beverage:

  1. 5L bottled pure water
  2. 5L bottled mineral water
  3. 5L bottle oil
  4. 5L bottled juice, etc non-carbonated liquid beverage.





Number of heads

9 Rinsing heads,9 Filling heads,4 Capping heads

Applicable bottle size

PET bottle


150-195 mm

Bottle height


Rated Capacity


Cap Type

Plastic Screw Cap 46mm Neck for PET Bottles



Timing Type


Washing Drop dryer time


Filling temperature


Compress air wastage




Competitive Advantage:


  1. This machine has three steps, first is washing, second is filling, third is sealing the bottle.
  2. Low power consumption, better material SUS 304, SUS 316.
  3. Simple structure, low investment
  4. Auto complete line, need less worker.
  5. The three functions of bottle washing, filing and capping are composed in one body of the machine.
  6. The whole process is automatic, no bottle no filling, no cap, machine will stop.
