4 in 1 Carbonated Beverage Filler Machine , Water Filling Equipment

4 in 1 Carbonated Beverage Filler Machine , Water Filling Equipment

    • 4 in 1 Carbonated Beverage Filler Machine , Water Filling Equipment
    • 4 in 1 Carbonated Beverage Filler Machine , Water Filling Equipment
    • 4 in 1 Carbonated Beverage Filler Machine , Water Filling Equipment
    • 4 in 1 Carbonated Beverage Filler Machine , Water Filling Equipment
  • 4 in 1 Carbonated Beverage Filler Machine , Water Filling Equipment

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: RCGF16-16-12-6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 40 days
    Payment Terms: T/T; L/C
    Supply Ability: 3 sets/month
    Contact Now
    Detailed Product Description
    Application: Juice|Tea|Beverage|Hot Filling Automatic Grade: Fully Automatic|Semi Automatic|Auto
    Bottle Type: PET|Plastic Bottle|Can Driven Type: Ectric|PLC
    Product Name: Juice Filling Machine Type: 4 In 1
    High Light:

    juice bottling equipment


    pet bottle filling line

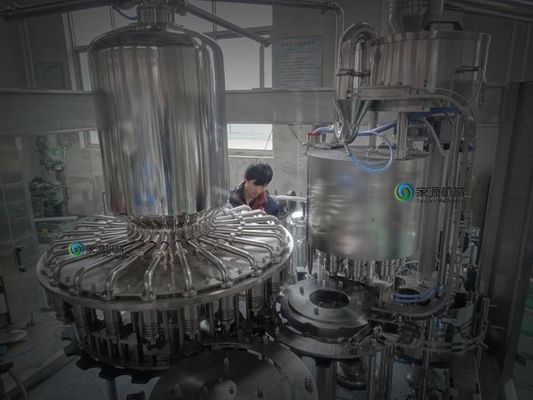

    4 in 1 Carbonated Beverage Filler Machine , Water Filling Equipment



    Quick Detail:


    1. 4-1 juice filler machine
    2. Production capacity: 4000-20000bph
    3. Bottle size: 250-2000ml
    4. Rinsing, washing, filling, capping machine 4-1
    5. Material: SS304
    6. Warranty: 1year free





    Main features:

    1. Bottles are delivered by suspension type clip bottle mouth conveying structure (except bottle out star wheel), bottle in adopts air conveying device, in the bottle washing station with flexible bottleneck clamp clamping, so that machine is more stable during operation , reliable, high-speed operation to adapt to the requirements of the machine. Simply adjust the conveyor of different bottle height and a small amount of change attachment, so for bottle faster, and effort.

    2. Dimidiate-type washing hand tongs, empty bottles with the guide rail automatically turn 180 º on to wash in and out of the bottles.

    3. Juice filling machine uses normal pressure filling technology is filling fast, reliable, non-drip, level accuracy. The machine has no bottle no filling characteristics

    4. The juice filling machine uses magnetic torque cover, to achieve grasping cover, screw caps, screw cap stepless torque, constant torque of the screw cap, without damage cover, seal tight and reliable.

    5. Cap arranging device ensure the cover arrange speed, no damage to the cover surface. Comprehensive testing device can guarantee no bottle no cover, lack of cover down, full cover without cover conveying of functions.

    6. The whole juice filling machine adopts advanced man-machine interface operation, PLC control, variable frequency stepless speed regulation, such as automatic control technology, so that the whole of the high degree of automation, more reliable performance, production capacity can be adjusted continuously.

    7. The main electrical, pneumatic components are imported components.




    This Juice filling machine adopts German technology, combined with years of experience in the Company after the development of new products. RXG series hot juice filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage’s characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.4 in 1 Washing, Filling (Pulp), Filling (juice), capping machine. Or Washing (disinfectant), Washing (pure water), Filling, Capping machine. Custom machines according to different requirements for the user.





    4-1 juice filler machine



    Washing machine


    l. The rotary wheel is a fully stainless steel welded structure.

    2.  The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

    3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

    4.  All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

    5.  The rinser is driven by driving system positioned inside machine frame via gear transmission.

    6.  Transfer starwheel

    7.  Made of stainless steel of superior quality.



    Filling machine


    l.  Rotary wheel fully made of stainless steel SUS 304.

    2.  Gravity filling method.

    3.  Filling valves are made of SUS316L.

    4.  Filling valves are reasonably structured with accurate filling.

    5.  Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

    6.  Level of cylinder is controlled with float-ball.

    7.  Filler is driven through gears inside the machine frame.

    8.  Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.



    Capping machine


    Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock. Our capper features as follows:

    l. The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai Jiao Tong University, and uses the technology of Arol from Italy, most advance technology in the world, developed with the experience of asepsis filling machine. For example,

    I) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic design of the wheel by experts improves the stability and credibility of the equipment.

    II) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.
