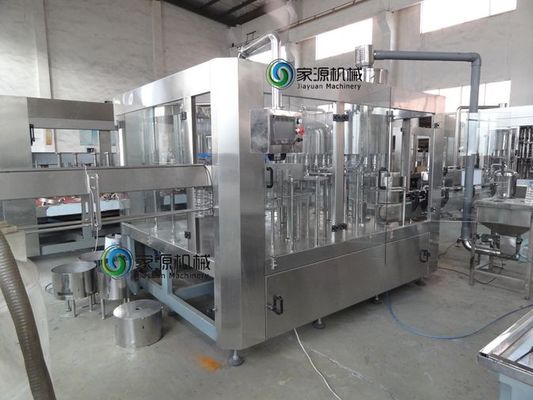

CGF24-24-8 Water Bottle Filling Machine 8000-10000 bph Liquid Filling Machine

CGF24-24-8 Water Bottle Filling Machine 8000-10000 bph Liquid Filling Machine

    • CGF24-24-8 Water Bottle Filling Machine 8000-10000 bph Liquid Filling Machine
    • CGF24-24-8 Water Bottle Filling Machine 8000-10000 bph Liquid Filling Machine
    • CGF24-24-8 Water Bottle Filling Machine 8000-10000 bph Liquid Filling Machine
    • CGF24-24-8 Water Bottle Filling Machine 8000-10000 bph Liquid Filling Machine
  • CGF24-24-8 Water Bottle Filling Machine 8000-10000 bph Liquid Filling Machine

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: CGF24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 23000
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Application: Liquid|Soda|Beverage|Juice Automatic Grade: Full Automatic|Auto
    Bottle Type: PET|Can Capacity: 8000-10000bph
    Driven Type: PLC|Ectric Material: SS304
    Product Name: Water Filling Machine
    High Light:

    liquid bottle filling machine

    ,

    water bottling machine

    CGF24-24-8 Water Bottle Filling Machine 8000-10000 bph Liquid Filling Machine



    Quick Detail:



    1. Product: Full automatic table water filling machine packing machine

    2. Model:CGF24-24-8

    3. Main Material: SS304

    4. Production capacity: 8000-10000bph(500ml)

    5. Usage: Fill pure/mineral/distilled water and so on

    6. Dimension: 2750*2180*2200mm

    7. Warranty: 1year free

    Automatic Water Bottle Filling Machine 500ml For Juice PET Bottle





    Description:



    Full automatic table water filling machine packing machine is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The mineral water filling machine is consisted of rinsing-filling-capping all together. It can fill mineral water, pure water and distill water etc. Full automatic table water filling machine packing machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as mineral water filling machine. However, full automatic table water filling machine packing machine can also be used for fill PET bottle with fruit juice and tea at normal temperature by simply add the juice mixing machine part. It can be connected with our others machines to form the mineral water filling production line.





    Application:


    This machine is designed for bottling non-air drinks, such as pure water, mineral water etc, it
    integrates bottle washing, filling and capping into one monobloc unit.





    Specifications:



    1) Feature

    1)Washing,filling ,capping three in one equipment.

    (2) The suspending bottle-neck clamping design make the bottle be stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production and different types of bottles easily.
    (3) The new generation of stainless steel grab is adopted and the grabs have no contact with the area above the bottle’s screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle. The special filling valve makes the filling speed fast and the filling liquid level control correct
    (4) Magnetic torque is used for screw capping, and the power of screw capping can be adjusted step. Capping is reliable and do no harm to the caps.
    (5) Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine. The advanced gravity filling technology used in this machine makes the filling quick, steady and accurate.
    (6) All parts that have direct contact with the water are made of high quality stainless steel. The critical electrical components are from famous international companies, such as Mitsubishi, Omron

    (7) The machine adopts filling in normal temperature and normal pressure.

    (8) It is convenient to operation and maintenance.

    (9) It is also suitable for thinner PET bottles.



    2) Technical parameter



    Model

    CGF24-24-8

    Material

    SS304

    Pump

    Nanfang(China famous brand)

    PLC

    Mitsubishi

    Frequency converter

    MITSUBI

    Washing head

    24pcs

    Filling head

    24pcs

    Capping head

    8pcs

    Water consumption for bottle

    2500kg/h

    Total power

    6.57kw

    Total weight

    5500kg













    Competitive Advantage:



    Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

    1. The company around 110 KM away from Shanghai, has convenient traffic.

    2. The company was established in 1999, has rich experience.

    3. We are an CE&SGS certified company.

    4. We can produce kind of filling&packing machine, such as

    1. Bottled water production line
    2. Carbonated soft drinks production line
    3. Hot-fill juice and tea production line
    4. 5 Gallon bottled water production line
    5. Water treatment machine and packing machine

    5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
