Pomegranate Sugarcane Juice Packing Machine Flavour Drink Bottling Filler

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE ISO
Model Number:	RCGF24-24-8

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	40 working days
Supply Ability:	300 sets per year

Contact Now

Detailed Product Description

Name:	Rinsing Filling Capping Machine	Capaicty:	2000-30000BPH(500ml)
Filling Material:	Water, Juice, Flavor Beverage	Control:	PLC+HIM+Frequency Inverter
Power:	380V
High Light:	Pomegranate Juice Packing Machine , Sugarcane Juice Packing Machine , Pomegranate Juice Bottling Filler

Pomegranate Juice, Sugarcane Juice Packing Machine, Flavour Drink Bottling Filler

This is rinsing filling capping tribloc machine, can produce still water, juice, flavor drink, sauce, vinegar and other still beverage.
It adopt back-flow system, can hot filling, filling temperature can be 85 centigrade.

Description

RCGF series juice filling line is used to produce PET bottled juice within the volume from 200ml to 2000ml.different models can satisfy various requirement of output from 1500B/H to 25000B/H.this machine incorporates ringsing,filling and capping into one kind of full-automatic equipment.It is suitable for producing PET and Plastic bottled juice and tea.The method of filling adopts hot filling .The equipment is fitted with advanced Mitshbishi PLC to control the operation and cooperated by frequency converter of the main motor.it makes the operation more stable and reliable.the photoelectric sensor is used to detect operating confitions of each section,which makes the operation of this equipment highly automatic and convenient.

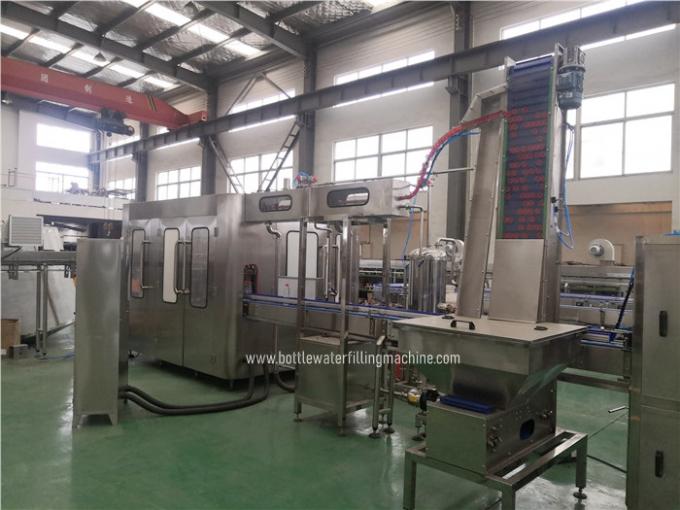

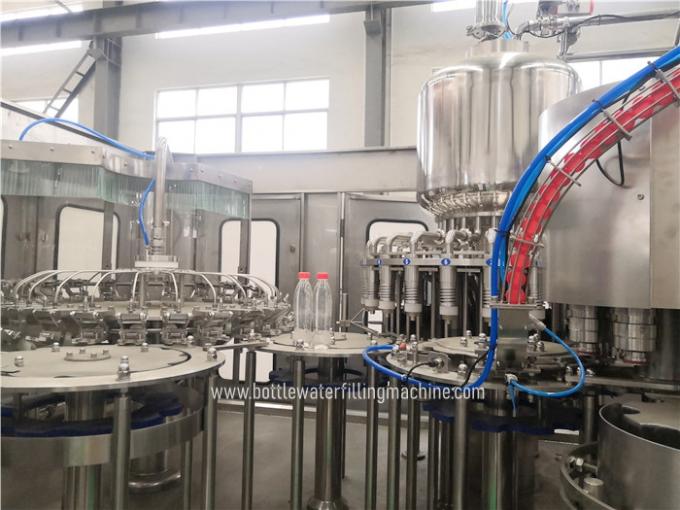

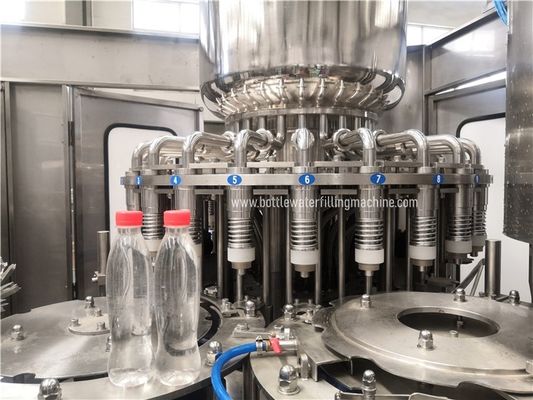

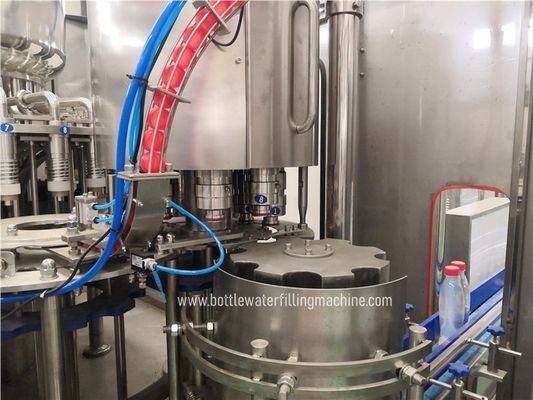

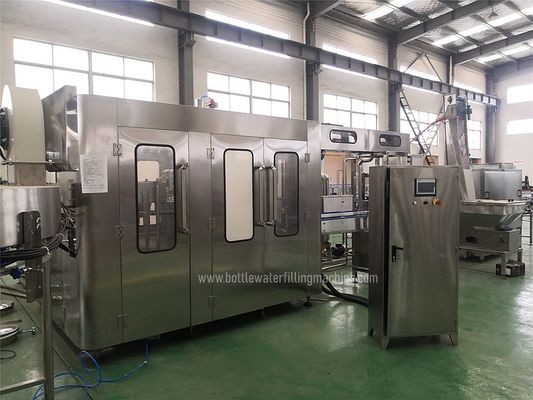

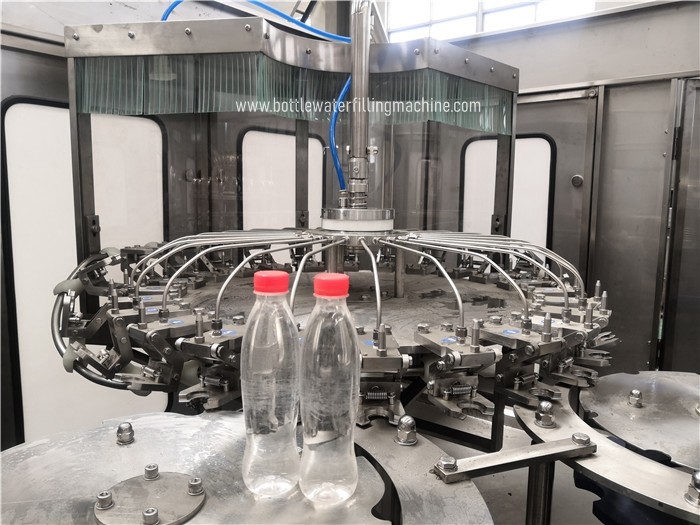

This is rinsing-filling-capping machine RCGF24-24-8
Pomegranate Sugarcane Juice Packing Machine Flavour Drink Bottling Filler 0

Pomegranate Sugarcane Juice Packing Machine Flavour Drink Bottling Filler 1

Technical parameter

Model	RCGF8-8-3	RCGF16-12-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10	RCGF40-40-12
capacity(BPH)	1500 (500ML)	4000 (500ML)	5500 (500ML)	8000 (500ML)	10000 (500ML)	14000 (500ML)
washing heads	8	14	16	24	32	40
filling heads	8	12	16	24	32	40
capping heads	3	5	5	6	8	10
suitable bottle	PET bottle plastic bottle
diameter of bottle	55-100mm
height of bottle	150-300mm
suitable cap	plastic screw cap
weight(kg)	1500	2000	3000	5000	7000	7800
main motor power(kw)	1.2	1.5	2.2	2.2	3	5.5

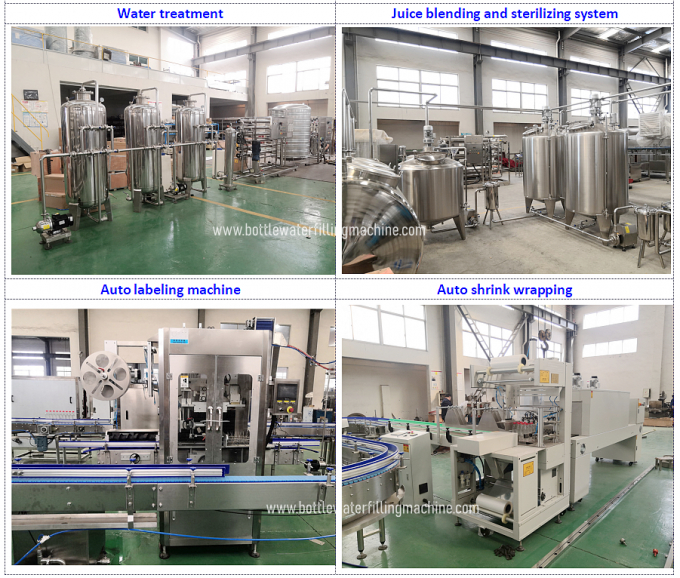

Other plants for juice line
Pomegranate Sugarcane Juice Packing Machine Flavour Drink Bottling Filler 2

Control System

S/N	Name	Brand	Country
1	Main motor	ABB	Switzerland
2	Inverter	MITSUBISHI	Japan
3	PLC	OMRON	Japan
4	Touch screen	MITSUBISHI	Japan
5	Contactor	SCHNEIDER	France
6	Thermo- relay	SCHNEIDER	France
7	Air-break switch	SCHNEIDER	France
8	Proximity switch	TURCK	USA
9	Photoelectric switch	BANNER	USA
10	Air circuit system	SMC	Japan
11	Water pump	Southern	China
