4.03KW Monoblock Juice Filling And Capping Machine , Orange Juice Production Line With PLC

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jiayuan
Certification:	CE SGS ISO
Model Number:	RCGF12-12-12-4

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set/Sets
Price:	US $15,000 - 800,000 / Set
Packaging Details:	wooden box
Delivery Time:	30 work days
Supply Ability:	10 Set/Sets per Month

Contact Now

Detailed Product Description

Condition:	New	After-sales Service Provided:	Engineers Available To Service Overseas
Material:	Food Grade Stainless Steel 304	Capacity:	3000BPH(500ml)
Application:	Non-gas Beverage	Filling Temperature:	85 Degree
High Light:	SS304 monoblock juice filler , 3000BPH Monoblock Juice Filling Machine , PLC Juice Filling And Capping Machine

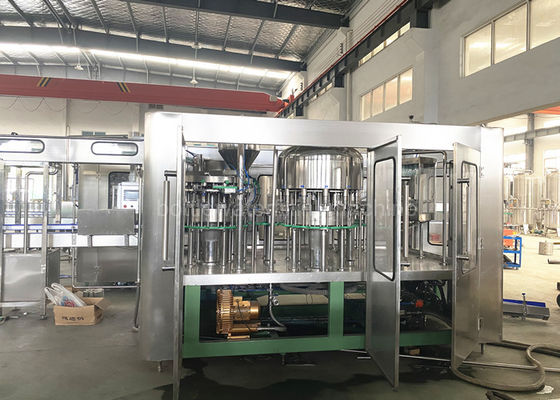

4.03KW Monoblock Juice Filling And Capping Machine , Orange Juice Production Line With PLC

Quick information:

This machine is customized by customer's special requirements.It can fill juice,tea drink,flavored water,milk drink etc into plastic/PET bottle.It integrates washing,juice filling,pulp filling, capping four functions into one machine.It is suitable for 200-2000ml bottle.It is widely used for beverage factory.

Characteristic:
1. intelligent contact screen, human design, easy operation.
2. High speed filling valve, avoiding drop leaking, accurate filling quantity.
3. Program logic controller(PLC), easy for changing size or modifying parameters.
4. Pneumatic elements are all famous brand, stability and reliability.
5. Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8. Pneumatic executive control valve, high efficiency and safety.
9. Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10. machine is designed according to requirements of buyer's.

Technique parameter

Model	RCGF12-12-12-4
Productivity	3000BPH
Rinsing Head	12
Filling Head	12
Filling head(Pulp)	12
Capping Head	4
Bottle Volume	200ml~2000ml±10ml
Bottle Diameter	φ50-92mm
Bottle Height	150-310 mm
Filling Tolerance	±2%
Cap Size	28mm and 30mm PE Standard Caps
Air Pressure	0.6MPa
Air Consumption	500 L/min
Gas Consumption	0.3 m3/min
Motor Power	4.03kW
Voltage	380V/50HZ,3 phase
Dimension(L×W×H)	245018002200mm
Weight	3000kg
Filling Principle	Gravity Filling

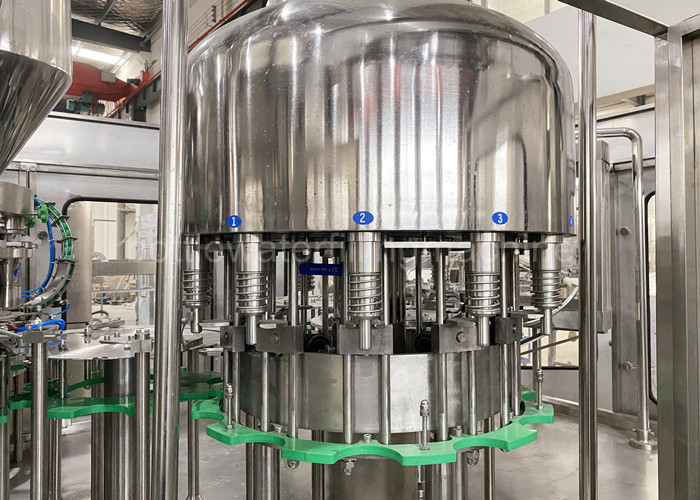

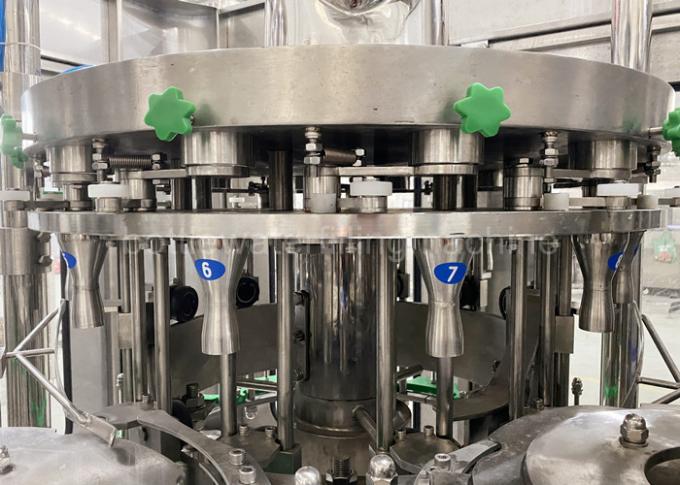

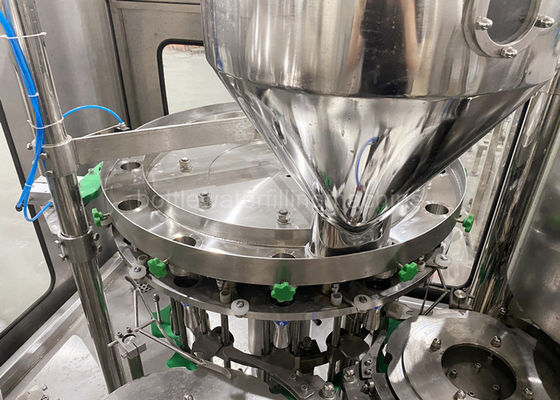

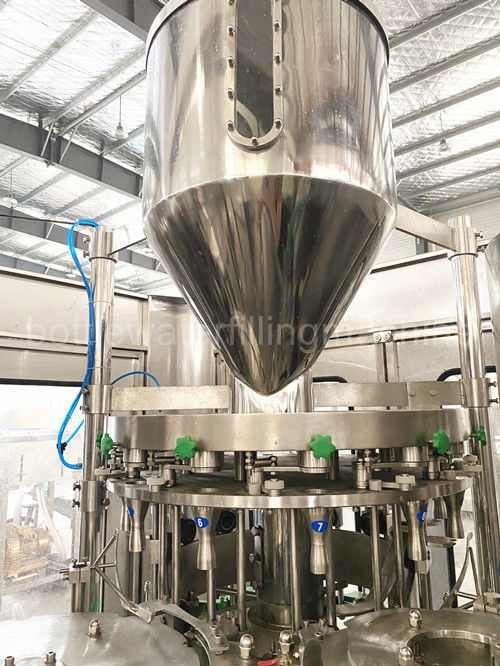

Pulp Filler

4.03KW Monoblock Juice Filling And Capping Machine , Orange Juice Production Line With PLC 0

4.03KW Monoblock Juice Filling And Capping Machine , Orange Juice Production Line With PLC 1

Product Features

1. The whole machine adopts the design of stuck bottleneck suspension operation mode so that the bottle is stable and reliable under high-speed operation, and at the same time, the number of changed parts is greatly reduced, making it more convenient and fast when changing the bottle type.

2. A new generation of stainless steel flip bottle clamp is adopted so that the clamp does not contact the upper part of the thread of the bottle mouth, and a spray head is provided so that the inner wall of the bottle can be rinsed fully without dead corners.

3. Adopting advanced gravity filling principle, the filling is fast, stable, and accurate.

4. Adopt magnetic torque type capping head to realize capping and capping. The capping torque is infinitely adjustable, the sealing is tight and reliable, and the cap is not hurt.

5. The whole machine adopts man-machine interface touch screen buttons, PLC computer control, and is equipped with a cover missing and overload protection alarm device, which can find and eliminate faults in time and have a high degree of production automation.

6. The parts in contact with water are made of high-quality stainless steel, and the main electrical components are all products of well-known international manufacturers.
