Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JIAYUAN |
| Certification: | CE,ISO,SGS |
| Model Number: | CGF16-12-6 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | US $8,000 - 1,600,000 / Set |
| Packaging Details: | wooden box |
| Delivery Time: | 30 working days |
| Supply Ability: | 10 Set/Sets per Month |
| Material: | Food Grade Stainless Steel 304 | Voltage: | 380V 50HZ |
|---|---|---|---|
| Weight: | 3500kg | Filling Capacity: | 2000BPH(500ml) |
| Control System: | PLC Control | ||
| High Light: | 6000bph Glass Bottle Filling Machine,80mm diameter wine Bottle Filling Machine,6000bph wine Bottle Filling Machine |
||
This machine works harmoniously with conveyor belt, It holds the bottles by the neck, thus, reducing the possibility of bottles falling over during conveying process.
This machine is used to fill water into glass bottle and with crown caps capping function.
This machine integrated threefunction:
1. Rinse the empty glass bottle,
2. filling the rinsed bottles,
3. capping the filled bottles

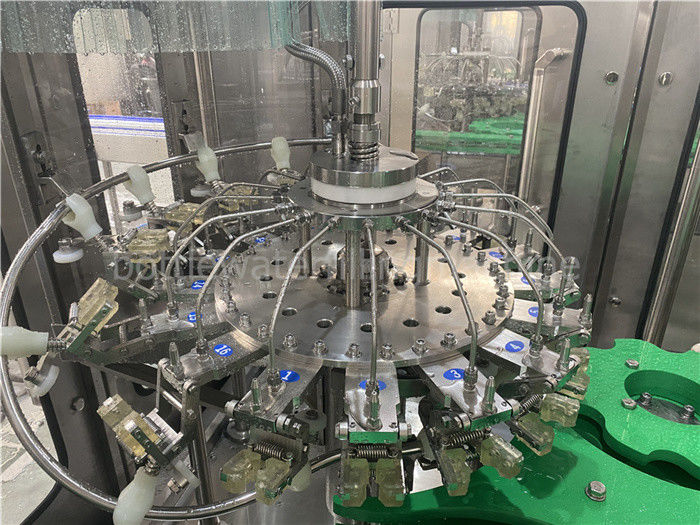

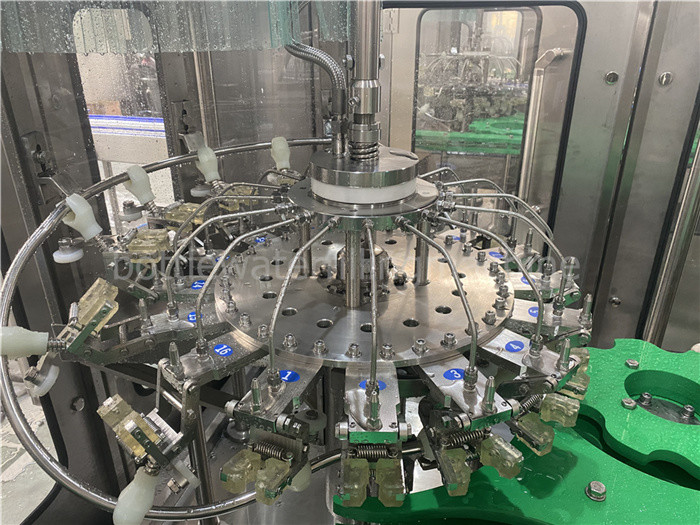

Rinsing part:
Rinsing part is mainly composed of washing pump, bottle clamps, water distributor, up turn-plate, guide rail, protection cover, spraying device, defrosting tray, rinse water take and rinse water refluxing tank.

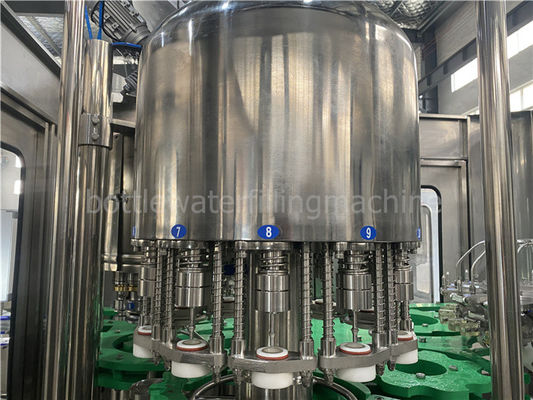

Filling part:
Filling Part is mainly composed of filling barrel, filling valves (normal temperature and normal pressure filling), filling pump, bottle hanging device / bottle pedestals, elevating device, liquid indicator, pressure gauge, vacuum pump, etc.

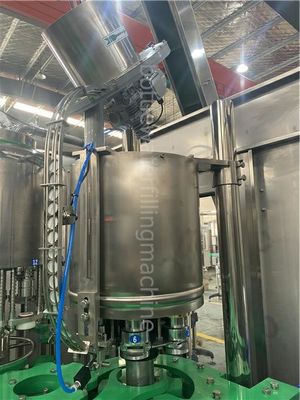

Capping part:
Capping part is mainly composed of capping heads, cap loader (separated), cap unscrambler, cap drop rail, pressure regular, cylinder and also we need an air compressor as the auxiliary external equipment.
Main technical parameters:
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | |
|
Production Capacity (500mm)(b/h) |
2000 | 4000 | 6000 | 8000 | 10000 | |
| Filling Precision | ≤±5mm(Liquid Level) | |||||
| Polyester Bottle Standard(mm) | Bottle DiameterΦ40-Φ80,Height:130-280 | Bottle DiameterΦ50-Φ100,Height:150-320 | ||||
| Suitable Cap Shape | Plastic Screw Cap | |||||
| Water Pressure of Washing Bottle(Mpa) | 0.18 | |||||
| Water Consumption for Water Bottle(kg/h) | 800 | 1600 | 2500 | 3500 | 1000 | |
| Spraying Position | 5 | 5 | 6 | 12 | 5 | |
| Dripping Bottle Position | 3 | 3 | 3.5 | 7 | 8 | |
| Gas Source Pressure(Mpa) | Normal Pressure | |||||
| Gas Consumption(m3/min) | 0.3 | 0.3 | 0.4 | 0.5 | 0.6 | |
| Total Power(kw) | 4.23 | 5.03 | 6.57 | 8.63 | 9.63 | |
| Total Weight | 2000 | 3500 | 5500 | 6000 | 8000 | |
| Dimension(L*W*H)(mm) | 2100*1500*2200 | 2450*1800*2200 | 2750*2180*2200 | 3500*2200*2250 |
3500*2200*2250 |
|
Machine base & Machine construction:
1. 304 stainless steel frame;
2. Tempering glass window which is clear without any odor;
3. Excellent start weel design so it is easy to change parts;
4. All parts are anti-rust and are ensured for permanent antirust;
5. The sealing part where liquid may leak comes with rubber and is also waterproof;
About Jiayuan
ZHANGJIAGANG JIAYUAN MACHINERY CO.,LTD
JIAYUAN supply and manufacture the followings machines for you
1) Water treatment equipment---RO purified equipment, UF purified equipment, Sand filter, Carbon filter, Water softner,raw water pump,storage tank
2) Filling Machine----3 in 1 Washing filling capping---for your water,cabonated drink, juice,wine,vinegar, milk,tea,oil and so on.
----150 to 2000ml bottle, 3.5-10L,11- 20L bottle (3-6gallon bottle)
----PET bottle, Glass bottle, PP bottle and Can
----Screw cap, Aluminum cap, Crown cap and three (four) twist caps etc.
3) Labeling Machine---Stick label, Shrink sleeve label, Hot melt Opp labels. Wet gule label
4) Printer , Inkjet printer , Laser printer
5) Packing Machine----Shrink film, Cartons packing machine
6) Bottle Blowing Machine--- for making plastic bottle
7) Injection Molding Machine---for your cap and proform.
8) Subsidiary products for drink production---Bottle Washer, Bottle Capper, Conveyor, Bottle Dryer, Bottle Warmer, Bottle Loading system, Bottle unscrambler, CIP system, Bottle Cooler, Bottle Sterilizer, Blending tank, Storage Tank, Sugar Melting Pot, Syrup Filter Conveyor and so on.
JIAYUAN will supply you bottle design, label design, workshop design free and make turnkey project equipments for you.
