Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
 |
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jiayuan |
| Certification: | CE ISO SGS |
| Model Number: | CGF16-12-6 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | $6,000-20,000 / Set |
| Packaging Details: | Plastic film wrapping,wooden boxes packaging |
| Delivery Time: | 30 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15 Set/Sets per Month |
| Control System: | PLC Control+Touch Screen | Warranty: | One Year For Free |
|---|---|---|---|
| Bottle Volume: | 200ml-2000ML | Weight: | 2000kg |
| Material: | Stainless Steel 304 | Voltage: | 380V/50Hz |
| High Light: | 2000BPH milk glass bottle packing machine,2000ML glass bottle filling machine,2000BPH glass bottle filling and capping machine |
||
Detailed Description:

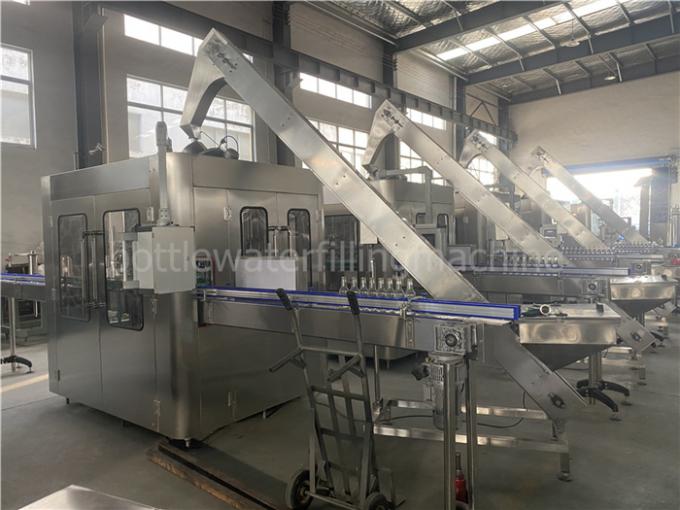

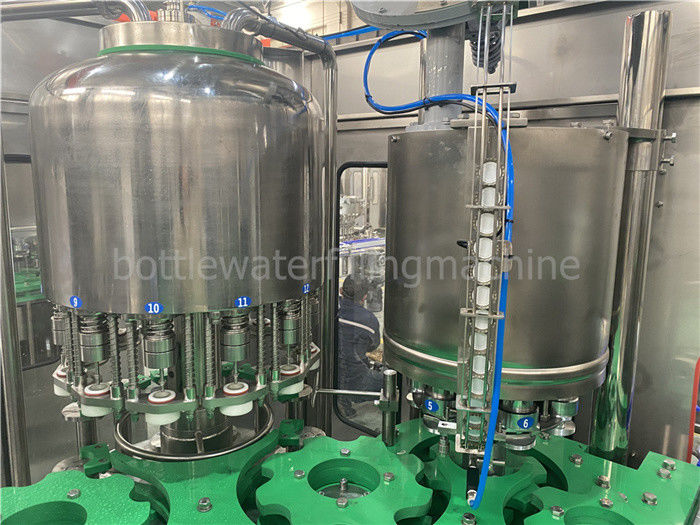

This machine is used in production non-gas containing beverage of glass bottle ,such as water,juice,milk,tea drink etc. It carries out washing bottle ,filling and capping on one machine ,the whole machine designing is reasonable ,the appearance is beautiful and the maintenance is convenient ,it adopts bottle handing technology to make changing bottle more convenient ,faster and easier ,the machine adopts PLC control ,touch screen and no-bottle ,no-cap system The key electric elements are from famous international brand.
Technique parameter
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 |
| Productivity | 4000BPH | 6000BPH | 10000BPH |
| Rinsing Head | 16 | 18 | 24 |
| Filling Head | 12 | 18 | 24 |
| Capping Head | 6 | 6 | 8 |
| Bottle Volume | 350ml~2000ml±10ml | ||
| Bottle Diameter | φ50-92mm | ||
| Bottle Height | 150-310 mm | ||
| Filling Tolerance | ±2% | ||
| Cap Size | 28mm and 30mm PE Standard Caps | ||
| Air Pressure | 0.6MPa | ||
| Air Consumption | 500 L/min | ||
| Filling Water Consumption | 1.5 m3/h | 3 m3/h | 6 m3/h |
| Rinsing Water Consumption | 0.5 m3/h | 1 m3/h | 2 m3/h |
| Motor Power | 5.88kW | 6.68kW | 7.68kW |
| Voltage | 380V | ||
| Dimension |
(L*W*H) 2100*1500*2200mm |
(L×W×H) 2450*1800*2200mm | (L×W×H) 2750*2180*2200mm |
| Weight | 2500kg | 3000kg | 5300kg |
| Filling Principle | Gravity Filling | ||
