Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jiayuan |
Certification: | CE ISO SGS |
Model Number: | CYG-12 FXZ-1 |
Minimum Order Quantity: | 1 Set/Sets |
---|---|
Price: | US $8,700-500,000 / Set |
Packaging Details: | Plastic film wrapping,wooden boxes packaging |
Delivery Time: | 30 working days |
Payment Terms: | L/C, T/T |
Supply Ability: | 15 Set/Sets per Month |
Capacity: | 2000 Cans Per Hour | Can Type: | Tin / Aluminum Can |
---|---|---|---|
Filling Material: | Juice,milk,tea Etc | Function: | Can Filling Sealing |
Color: | Silver Gray | Condition: | New |
Filling Pressure: | Normal Pressure | After-sale Service: | Engineers Available To Service Overseas |
High Light: | PET Bottle Filler Machine,Beverage Filling Line |
Description
The production line inculds QSG16 can rinsing,CYG often pressure filter,FXZ cap turining machine,SSJ carrying machine etc.The key parts for washing,filling and sealing are made of high quality stainless material,with the features of advanced technology,completed system,reliable performance,easy in operation,etc.
Filling part
The filling machine adopts normal pressure quantitative filling. By adopting the frequency conversion speed adjustment, it has such features as stable filling, high flow, rapid speed, accurate filling volume, no fillingin case of no can, automatic control of the liquid level of material cylinder, etc. The steam jetting device can be allocated according to customer requirements to increase the vacuum degree in the can.
Beverage tank with double insulation,and with a beverage mixing device in order to ensure the uniformity of juices and particles

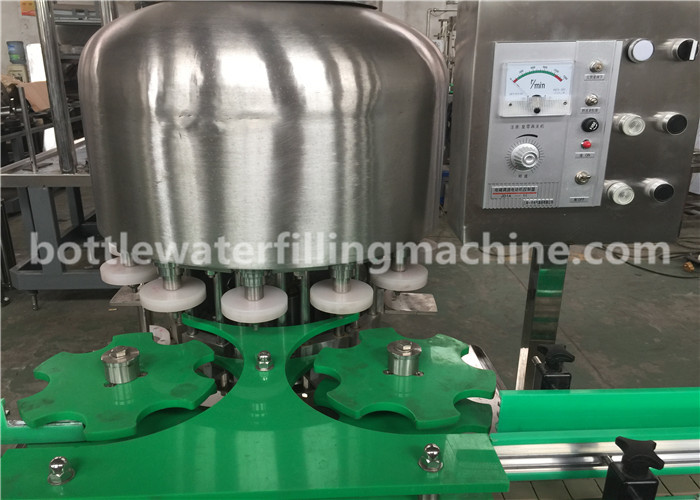

Sealing part
Sealing machine with four rollers double sealing type structure, suitable for small size round cans sealed.
The machine has the advantages of convenient assembly and disassembly of parts, simple maintenance,
convenient operation. The control part adopts advanced electric, gas control technology, convenient speed regulation, high cover dropping accuracy, is canned food factory, beverage factory preferred models. The machine through the steam jet to tank to reach vacuum requirements.
Technical parameter
Model | QSG16 can rinsing machine | CYG-12 | FXZ-1 |
Production capacity | 2000 | 2000 | 2000 |
Bottle/can type | ∅40-80 | ∅40-90 H50-340 | ∅50-67 H90-200 |
Power(kw) | 0.55 | 1.1 | 0.75 |
Overall dimensions(mm) | 1900*530*1100 | 810*1050*2050 | 930*700*1850 |
Weight(kg) | 480 | 500 | 500 |
