Zhangjiagang Jiayuan Machinery CO., LTD
Professional liquid beverage filling and packing machinery manufacturer
Place of Origin: | China(mainland) |
Brand Name: | JIAYUAN |
Certification: | CE SGS |
Model Number: | GF1206 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | pls inquiry |
Packaging Details: | standard wooden cases |
Delivery Time: | 35 working days |
Supply Ability: | 99 sets per year |
Product Name: | Water Bottling Machine | Function: | Bottle Filling Capping |
---|---|---|---|
Model: | GF12-6 | Capactiy: | 4000B/H |
Filling Material: | Water, Juice | Control: | PLC+HMI |
Voltage: | 380 50hz Or Customized | Power: | 3.5kw |
High Light: | water bottling machine,water bottling equipment |
4000BPH Small Bottled Water Production Line, Plastic Bottle Filling Machine Price
Working process
The bottle enters into the rinsing part of two-in-one machine through air conveyor. The gripper installed on the rotary disk catches bottle and transfer them to the filling part through poking bottle starwheel. The bottle that enters into the filler is hold by neck holding plate. The filling valve acted by the cam can realize up and down. It adopts pressure filling way. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave the bottleneck when it finishes filling, the full bottle is transferred to the capping part through hold neck transition poking wheel. The stop screwing knife holds the bottleneck, keeps bottle upright not rotating. The screw capping head keeps in revolution and autorotation. It can finish a whole capping course including catching, pressing, screwing, discharging through the action of the cam. The full bottle is transferred to bottle outlet conveyor to the next process through starwheel. The whole machine is enclosed with windows, the height of enclosed window is higher than the peak of the 3 in 1 machine, in the bottom of the enclosed window has return air outlet.
Description

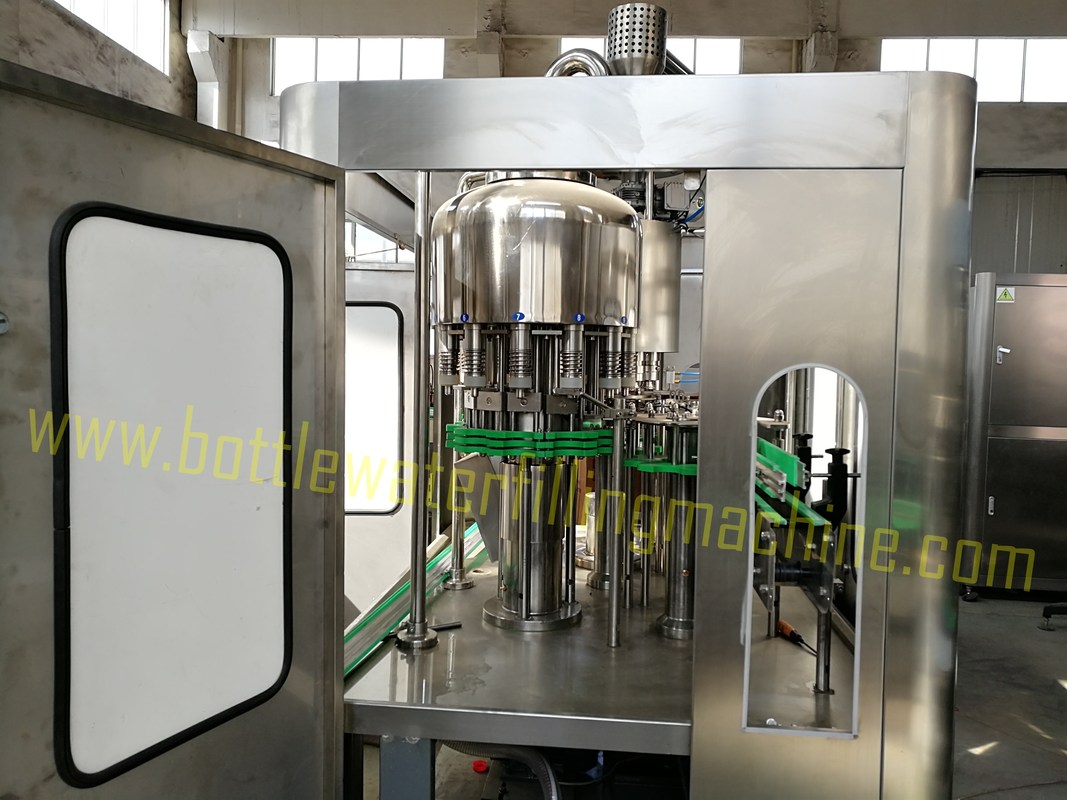

This machine is a filling capping 2-in-1 monblock, it is suitable for mineral water, purified water, spring water, juiced beverage and other non-carbonated beverage production. it's capacity is about 4000 bottles per hour (500ml PET bottle).
Product Details
Our rising filling capping 3-in-1 capacity
Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 |
Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
Bottle standard(mm) |
Diameter:Φ50-Φ108 Height:150-320 |
|||||
Rated production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
Water treatment system
Raw water tank—raw water pump—multi-medium filter--active carbon filter –water softner (Sodium Ion Exchanger)—precision filter—RO mainframe(including chemical cleaning device)—ozone generator—finished product water tank
we can supply all these plants, pls have a furthur learn...
