Medical Industry 5 Gallon Water Bottle Filling And Cap Sealing Machine 3.8kw

Medical Industry 5 Gallon Water Bottle Filling And Cap Sealing Machine 3.8kw

    • Medical Industry 5 Gallon Water Bottle Filling And Cap Sealing Machine 3.8kw
    • Medical Industry 5 Gallon Water Bottle Filling And Cap Sealing Machine 3.8kw
  • Medical Industry 5 Gallon Water Bottle Filling And Cap Sealing Machine 3.8kw

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: QGF-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 50000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Condition: New Application: Beverage, Chemical, Food, Medical
    Packaging Type: Barrel,Bottles, Cartons Automatic Grade: Automatic
    Driven Type: Electric After-sales Service Provided: Overseas Service Center Available
    Warranty: 1 Year For Free Filling Type: Normal Pressure Filling
    Dimension(L*W*H): 3800*1300*1600MM Filling Bottle Size: 1-5gallen/3-19L
    Weight: 1200kg

    5 gallon water bottle filling and cap sealing machine production line



    Product Description
    5 gallon water bottle filling and cap sealing machine production line

    1.5 gallon water filling machine/19liter water barreled filling machine
    2.CE,ISo,SGS
    3.80 type,150 type,300 type,450 type,600 type,900 type.

    Barreled drinking water production line

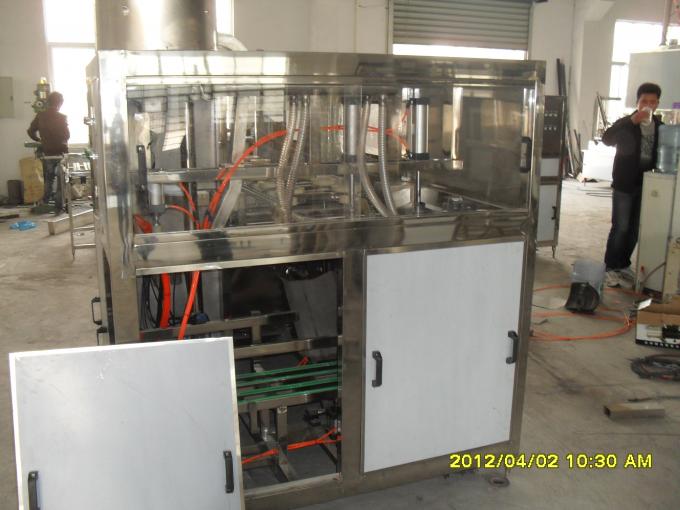

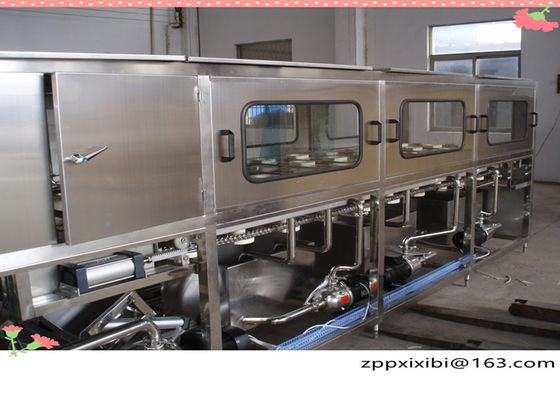

    5 gallon water bottle filling and cap sealing machine production line
    1.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.
    2.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.
    3.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.


    ModelQGF-80QGF-150QGF-300QGF-450QGF-600
    Filling heads11234
    Volume18.918.918.918.918.9
    Barrel size270*490270*490270*490270*490270*490
    Capacity80150300
    Gas pressure0.4 -0.60.4 -0.60.4 -0.60.4 -0.60.4 -0.6
    Gas consumption0.370.370.60.81
    Motor power1.381.753.83.87.5
    Motor voltage380V/50HZ380V/50HZ380V/50HZ380V/50HZ380V/50HZ
    Weight500700120016002000
    Dimension2500*1100*16002800*1100*16003800*1300*16004200*1600*16004800*1800*1600

    Medical Industry 5 Gallon Water Bottle Filling And Cap Sealing Machine 3.8kwMedical Industry 5 Gallon Water Bottle Filling And Cap Sealing Machine 3.8kw

    Medical Industry 5 Gallon Water Bottle Filling And Cap Sealing Machine 3.8kw

    Our Services

    1.One year warranty for the whole system.
    2.Free equipment installation and debugging.
    3.After one year, we can help you to maintain the machine and the accessories are provided only one the cost price.
    4.We can provide internship service and help you train the operator and mechanic.
    5.Free beverage production technology and process configuration.
    6We can help you to design the product line, workshop and provide turn-key project.
