Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven

Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven

    • Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven
    • Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven
    • Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven
    • Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven
  • Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: JIAYUAN
    Certification: CE,ISO,SGS
    Model Number: QGF-300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1piece
    Price: US $30,000 - 50000 / Set
    Packaging Details: wooden box
    Delivery Time: 30 working days
    Supply Ability: 10 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel 304 Application: Beverage, Chemical, Food, Medical
    Packaging Type: Barrel,Bottles, Cartons Packaging Material: Paper, Plastic, Wood
    Power: 3.8kw After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Warranty: One Year Free Power Supply: 380V/50HZ(adjustable)
    Processing Types: Water Dimension(L*W*H): 3800*1300*1600MM
    Weight: 1200kg

    5 gallon water filling machine with low water and electricity consumption



    Product Description

    Keyword: Filling Machine/Barreled Production Line/5gallons Washer Filler Capper Monoblock/120barreled Production Line/5gallons production line/5gallons barreled production line



     5 gallon water filling machine with low water and electricity consumption

    1.It has the following types:80 type,150 type,300 type,450 type,600 type,900 type.

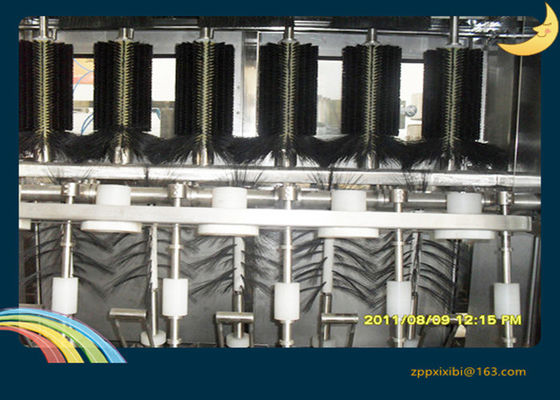

    2.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.

    3.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling, capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.



    Model QGF-80 QGF-150 QGF-300 QGF-450 QGF-600
    Filling heads 1 1 2 3 4
    Volume 18.9 18.9 18.9 18.9 18.9
    Barrel size 270*490 270*490 270*490 270*490 270*490
    Capacity 80 150 300
    Gas pressure 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6 0.4 -0.6
    Gas consumption 0.37 0.37 0.6 0.8 1
    Motor power 1.38 1.75 3.8 3.8 7.5
    Motor voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
    Weight 500 700 1200 1600 2000
    Dimension 2500*1100*1600 2800*1100*1600 3800*1300*1600 4200*1600*1600 4800*1800*1600

    Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven



    Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven



    Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven

    Our Services

    Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven

    Low Electricity Consumption 5 Gallon Water Filling Machine Electric Driven

    Company Information

    Jiayuan company was established in1997,and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry.we have such as CE,ISO etc certification.we are a company integrating scientific research,production and service,and have the best manufacturing facilities and production process,professional staffs,imported facilities of concentration distill series,automatic CIP series,PLC control etc.Now we have been a market leader in the Chinese food machinery industry.The company keeps in mind the tenet of "serving users" and focus on research and development of new technologies.It has comprehensive development capacity and sound quality assurance system,and has made R&D achievement and obtained invention patents.Our machinery are widely sold in China,and exported over 20 countries,adn gained favorable feedback from users.Our major engineering projects include complete dairy products production line,beverage production line,biochemical engineering production line.
