Automatic Bottle Carbonated Drink Filling Machine Electric Driven Plastic Screw Cap

Automatic Bottle Carbonated Drink Filling Machine Electric Driven Plastic Screw Cap

    • Automatic Bottle Carbonated Drink Filling Machine Electric Driven Plastic Screw Cap
    • Automatic Bottle Carbonated Drink Filling Machine Electric Driven Plastic Screw Cap
    • Automatic Bottle Carbonated Drink Filling Machine Electric Driven Plastic Screw Cap
    • Automatic Bottle Carbonated Drink Filling Machine Electric Driven Plastic Screw Cap
  • Automatic Bottle Carbonated Drink Filling Machine Electric Driven Plastic Screw Cap

    Product Details:

    Place of Origin: CHINA, MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: DGCF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 20000-60000 set
    Packaging Details: wooden
    Delivery Time: 30work days
    Payment Terms: T/T
    Supply Ability: 15 sets per month
    Contact Now
    Detailed Product Description
    Condition: New Driven Type: Electric
    Feature: Easy Operation Filling Volume: Adjustable
    Usage: Food And Beverage Packing: Wooden Cases
    Service: Top Service Color: Silvery White
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    CSD Filling Machine

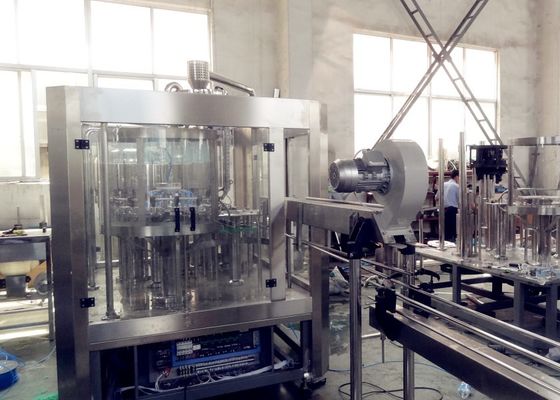

    electric driven auto bottle carbonated drinks filling machine with mature technology







    Products Introduction



    The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.



    Characteristics
    1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier. 2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.. 3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution. 4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose. 5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains. 6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.



    Features



    1. The suspending bottle-neck clamping design make the bottle stable during the high speed moving conditions. By changing a few parts, it can meet the need of different types of bottles easily.

    2. The new generation of stainless steel grab is adopted and the grabs have no contact with the arew above the bottle's screw thread. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.

    3. The advanced gravity filling technology used in this machine makes the filler quick,steady and accurate.

    4. Magnetic torque is used for screw capping,and the power of screw capping can be adjusted steplessly. Capping is reliable and do no harm to the caps.

    5. Advanced technologies,such as human-machine interface touch-screen and PLC program control are adopted in this machine.









    Main technical parameters:

    Model CGF16-12-6 CGF18-18-6 CGF32-32-10 CGF40-40-12

    Production Capacity

    (500mm)(b/h)

    2000-4000 4000-6000 12000-15000 16000-18000
    Filling Precision ≤±5mm(Liquid Level)s
    Polyester Bottle Standard(mm) Bottle DiameterΦ40-Φ80,Height:130-280 Bottle DiameterΦ50-Φ100,Height:150-320
    Suitable Cap Shape Plastic Screw Cap
    Water Pressure of Washing Bottle(Mpa) 0.18
    Water Consumption for Water Bottle(kg/h) 800 1600 3500 1000
    Spraying Position 5 5 12 5
    Dripping Bottle Position 3 3 7 8
    Gas Source Pressure(Mpa) Normal Pressure
    Gas Consumption(m3/min) 0.3 0.3 0.5 0.6
    Total Power(kw) 4.23 5.03 8.63 9.63
    Total Weight 2000 3500 6000 8000
    Dimension(L*W*H)(mm) 2100*1500*2200 2450*1800*2200 3500*2200*2250 3500*2200*2250





    Packaging & Shipping



    auto bottle carbonated drinks filling machine with mature technology

    Company Information



    Professional filling machine manufacturer---Zhangjiagang Jiayuan Machinery Co.,Ltd. is a professional beverage machinery manufacturer to produce beverage machine and water treatment equipment.
    Our business philosophy is market-oriented, technology-guided, quality-based and customers-first. We now have passed ISO9001 international quality management system certification and own a perfect quality guarantee system.
    The main products of our company contain: carbonated and non-carbonated beverage production line, pure water production line, juice, tea and alcohol and other liquids packed in bottle, barrel, can, glass, and others production lines.
