3 In 1 Monoblock 8kw Water Bottle Filling Machine For Glass Bottle Stainless Steel

3 In 1 Monoblock 8kw Water Bottle Filling Machine For Glass Bottle Stainless Steel

    • 3 In 1 Monoblock 8kw Water Bottle Filling Machine For Glass Bottle Stainless Steel
    • 3 In 1 Monoblock 8kw Water Bottle Filling Machine For Glass Bottle Stainless Steel
    • 3 In 1 Monoblock 8kw Water Bottle Filling Machine For Glass Bottle Stainless Steel
    • 3 In 1 Monoblock 8kw Water Bottle Filling Machine For Glass Bottle Stainless Steel
  • 3 In 1 Monoblock 8kw Water Bottle Filling Machine For Glass Bottle Stainless Steel

    Product Details:

    Place of Origin: China,Jiangsu
    Brand Name: Jia Yuan
    Certification: CE,SGS
    Model Number: CGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD 25000 per set
    Packaging Details: Export Wooden Case
    Delivery Time: 30 working days
    Contact Now
    Detailed Product Description
    Dimension(L*W*H): 2200X2100X2200MM Production Capacity: 2000~40000BPH
    Bottle Type: Round Bottle Keywords: Glass Bottle Filling Machine
    Filling Precision: Less Than 5 Mm Suitable Cap: Plastic Screw Cap
    High Light:

    liquid bottle filling machine

    ,

    water bottling equipment

    3 - in - 1 monobloc 8kw water bottle filling machine for glass bottle stainless steel



    Description:



        The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed conveyor.A star wheel then transfers the bottle to neck holding gripper of the rinsing station.The rinsing robot indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.In the filling station the bottles are picked up by the neck and are allocated individual filling values.The state-of-art filling valve is so precise and accurate it gives even filling in all bottles.The filled bottles are then transferred to the capping station via a star wheel.The bottles automatically move for the capping stage where the caps release from the sorter on to the bottles.The caps are sealed automatically using special capping hands. The entire system is enclosed in a stainless steel/glass outer casing.After the capping stage the bottle are automatically ejected out to the out feed conveyor. The whole equipment is sleek and is capable of bottling various sizes of PET bottles ranging from 250 ml to 2 ltrs.





    Features:





    1.Integrate Bottling Rinsing, Filling and Capping into one.

    2.Including bottle infeed air conveyor,tri-bloc Rinser-Filler-Capper and outfeed conveyor and cap elevator.

    3.All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material

    4.Infeed timing screw, indexing star wheel and guider are made from noise-reducing and low-wear plastic.

    5.The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the

    tubular frame.

    6.All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.

    7.Bottles are rinsed internally and externally, No bottle, No Rinsing.

    8.Precise and Accurate GRAVITY filling valves give even filling in all bottles at the same level, No bottle, No filling.

    9.Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.

    10.PLC control and friendly touch screen HMI interface.

    11.Adjustable speed by inverter.

    12.Fast and easy changeover to various bottle sizes.

    13.Unique design bottle neck suspend system makes bottle move smoothly.

    14.Easy to operate,clean and maintain.





    Parameter:



    Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
    Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000 12000-15000(0.5L)
    Filling precision ≤±5MM(Liquid Level) ≤±5MM(Liquid Level) ≤±5MMLiquid Level ≤±5MM(Liquid Level)
    Polyester bottle standard(mm) Bottle diameter40-80; ≤±5MM(Liquid Level) ≤±5MM(Liquid Level) ≤±5MM(Liquid Level)
    Height Height:130-280 (Height):150-320 (Height):150-320 (Height):150-320
    Suitable cap shape Plastic Screw Cap (Plastic Screw Cap) Plastic Screw Cap) (Plastic Screw Cap)
    Water pressure of Washing bottle(MPa) 0.18 0.18 0.18 0.18
    Water consumption for Water bottle (kg/h) 800 1600 2500 3500
    Spraying position 5 5 6 12
    Dripping bottle position 3 3 3.5 7
    Gas source pressure(Mpa) normal pressure normal pressure normal pressure normal pressure
    Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
    Total power 4.23 5.03 6.57 8.63
    Total weight 2000 3500 5500 8000
    Dimension(L*W*H) 2100×1500×2200 2450×1800×2200 2750×2180×2200 3500×2200×2250

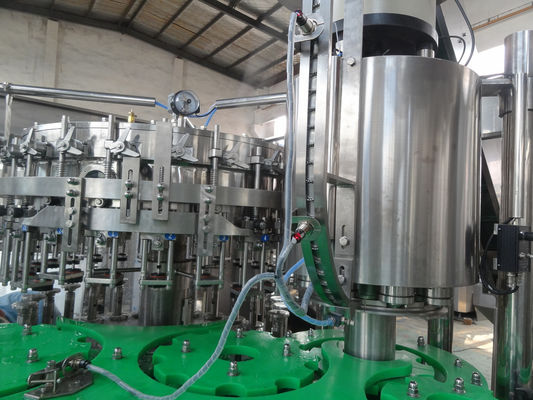

    Machine in our factory:



    3 In 1 Monoblock 8kw Water Bottle Filling Machine For Glass Bottle Stainless Steel 0

    3 In 1 Monoblock 8kw Water Bottle Filling Machine For Glass Bottle Stainless Steel 1


    Our Advantage:


    Flexibility

    Change-over to other products or filling temperatures is done quickly, easily, and it is reproducible.



    Short change-over times

    Very short change-over times made possible via neck-handling parts and changes of the filling volume via touch-screen selection or easy filling programme selection.



    Hygienic bottling conditions

    Minimised surfaces on the filler’s exterior thanks to freestanding transfer starwheels. Mechanical drive units such as gears and joint shafts have been replaced by closed servo drives.



    Easy maintenance

    This machine is well accessible so that all maintenance and service jobs can be performed easily.



    Future viability

    The design of the filler enables retrofitting of another capper or the creation of a Bloc with rinser, blow moulder, or labeller.
