High Running Stability Carbonated Drink Filling Machine For Small Beverage Making

High Running Stability Carbonated Drink Filling Machine For Small Beverage Making

    • High Running Stability Carbonated Drink Filling Machine For Small Beverage Making
    • High Running Stability Carbonated Drink Filling Machine For Small Beverage Making
    • High Running Stability Carbonated Drink Filling Machine For Small Beverage Making
    • High Running Stability Carbonated Drink Filling Machine For Small Beverage Making
  • High Running Stability Carbonated Drink Filling Machine For Small Beverage Making

    Product Details:

    Place of Origin: CHINA, MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: DGCF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 1000-22000 SET
    Packaging Details: WOODEN
    Delivery Time: 20WORK DAYS
    Payment Terms: T/T
    Supply Ability: 15 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Control: Touch Screen Color: Silvery White
    Volatge: Customized Service: Oversea Service
    Driven Type: Electric Feature: High Running Stability
    Warranty: 1year
    High Light:

    Carbonated Soft Drink Filling Machine

    ,

    carbonated beverage filling machine



    automatic high quality carbonated drinks making machine for small beverage facotry



    Description



    Carbonated pulp filling equipment adopts bottle neck hoiding transmission technology to realize fully automatic rinsing, pulp filling, carbonated filling and cap screwing.It employs single cavity plunger type. It is equiped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production.





    Characteristics




    • Multiple Usage: The filler provide a comprehensive range of different bottle sizes (height 150-320mm, Dia. 50-100mm)
    • Easy adjustment: An automatic height adjust device is available which offers you very easy operation only by pressing a button. For filling different size of bottles, relative parts can be easily and quickly changed without tools.
    • The filler carousel is mounted on a huge heavy duty combined bearing, which guarantees optimum smooth running of the filling bowl. The design of suspended and cantilevered bottle lift cylinders and bottle platforms allows easy, unrestricted remove of broken glass following bottle explosion which, with the addition of well protective of piston rods, minimizes the risk of damage of sliding surface of cylinders.
    • High efficiency and low beverage loss: Owing to the special constructions features the machinery can run at high speed with low rate of glass broken. In the event of bottle breakage a burst flushing system can remove any fragments from the bottle platform, filling valve and centering bell assembly, filling valve automatically be closed in very short time avoiding beverage and gas loss.
    • Sanitation: All parts which contact with beverage are made with high quality polished stainless steel. The CIP system offers automatically cleaning and sterilization of the filler. Using PLC control the machine monitors, the filling liquid level automatically. Made up of high quality stainless steel, it is sanitation. Operation and maintenance is convenient.

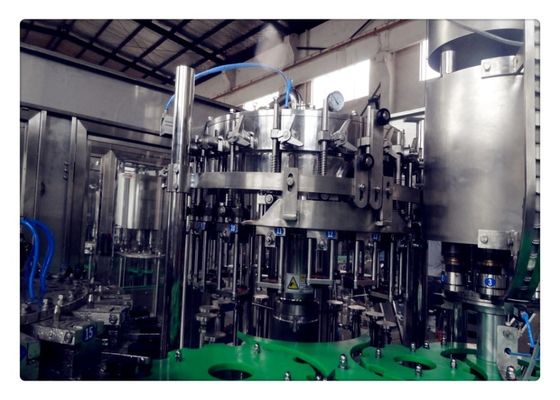

    High Running Stability Carbonated Drink Filling Machine For Small Beverage Making 0



    Technical parameters



    Item DCGF18-18-6 DCGF24-24-8 DCGF32-32-10
    Capacity 5000bph(500ml) 8000bph(500ml) 15000bph(500ml)
    Rising heads 18 24 32
    Filling heads 18 24 2
    Capping heads 6 8 10
    Bottle Diameter Commonly 50-110mm (can adjustable)
    Bottle Height Commonly 150-340mm(can adjustable)
    Filling pressure 0.15-0.35Mpa
    Rising pressure 0.2-0.25Mpa
    Overall size 2450*1800*2350 2780*2200*2350 3600*2650*2350
    Weight 3.5t 4.5t 5.5t





    Rinser :



    Adopting advanced international technology , we design the QS series rotary bottle rinsing machine by ourselves . With theindependent innovative design, this series machine has been the advanced bottle rinsing machine in China.



    Professional cleaning machine for empty plastic bottle or glass bottles .Fixed structure, impeccable controlling system and easily for operating and maintain.Reliable cleaning theory and spraying method to rinse the inside and outside of the bottles.





    Filler :



    This machine has speed regulating motor so that the production capacity can be adjusted according to customer requirement easily.Our filling valve is adopting German advanced technology, even with running speed 32000 bottles per hour, our machine can fill stably and exactly;



    All our filling accessory have been well polished, and have nice appearance , fast filling speed, without any leakage; Our machine is equipped with anti-reverse rotation unidirectional clutch device. When it overload, the clutch will slip to stop the machine, so that the machine can work normally.





    Capper :

    Our capping machine is suitable for plastic screw cap , aluminum screw cap, theft deterrent cap, etc which is mainly used in the PET bottled no-gas drinking ; Our capping machine have the stable transmission system, great sealing performance, easy operation, convenient maintance character.



    High Running Stability Carbonated Drink Filling Machine For Small Beverage Making 1

    High Running Stability Carbonated Drink Filling Machine For Small Beverage Making 2


    Company Information
    • Zhangjiagang Jiayuan Machinery Co., Ltd. is located in Zhangjiagang city, which is near to Shanghai. We professionally research, develop and manufacture beverage packaging machines. We are a high technology enterprise of Jiangsu Province, and the best supplier of China beverage packaging machinery area.
    • Since its founded 20 years ago. We are dedicated to the most advancement technology of beverage packaging machinery, and have always been conducting good up-to-date technical communication and exchange with leading Italy, Germany, France packaging companies.

    • We have a strong technology team for beverage packaging machines’ manufacture. There are many beverage experts in our company. We provide marketing analysis, project budget, equipment technical configuration, and training for operator etc.

    High Running Stability Carbonated Drink Filling Machine For Small Beverage Making 3
