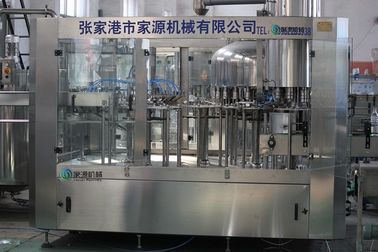

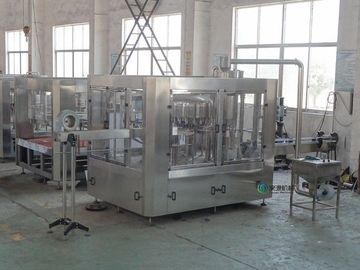

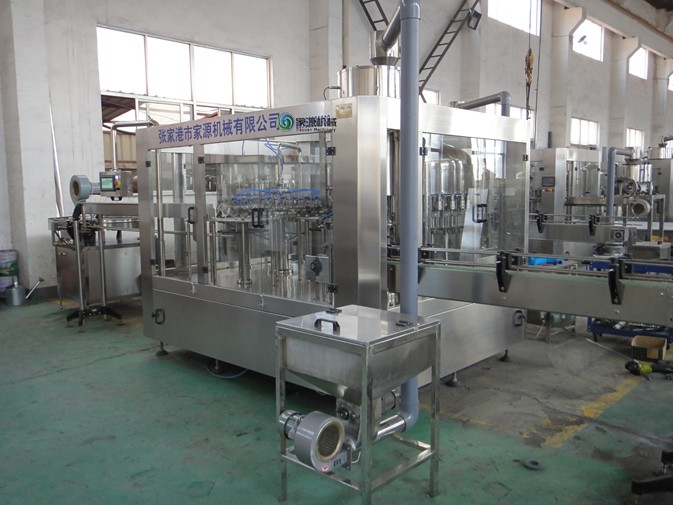

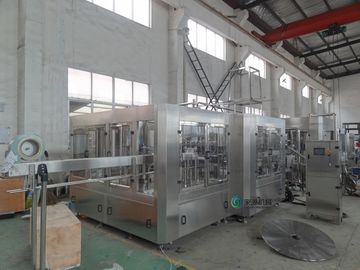

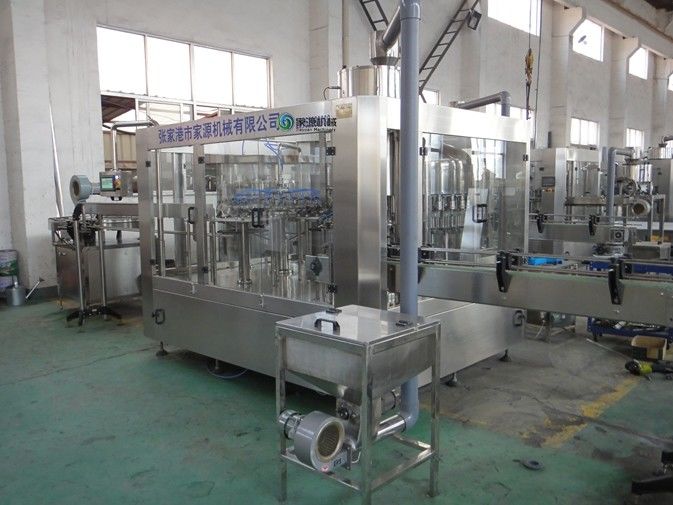

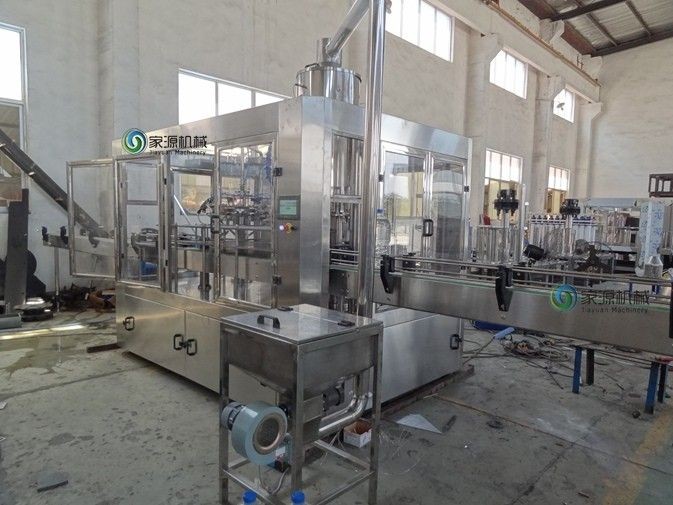

Water Bottle Filling Machine, Mineral Water Production Line, Bottling Plant

Water Bottle Filling Machine, Mineral Water Production Line, Bottling Plant

    • Water Bottle Filling Machine, Mineral Water Production Line, Bottling Plant
    • Water Bottle Filling Machine, Mineral Water Production Line, Bottling Plant
    • Water Bottle Filling Machine, Mineral Water Production Line, Bottling Plant
    • Water Bottle Filling Machine, Mineral Water Production Line, Bottling Plant
  • Water Bottle Filling Machine, Mineral Water Production Line, Bottling Plant

    Product Details:

    Place of Origin: CHINA, MAINLAND
    Brand Name: jiayuan
    Certification: CE,SGS
    Model Number: CGF 24-24-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD 23000 SET
    Packaging Details: wooden case
    Delivery Time: 30WORK DAYS
    Payment Terms: T/T
    Supply Ability: 15set per month
    Contact Now
    Detailed Product Description
    Material: SUS304 Capacity: 8000-10000
    Color: Silvery White Packing: Wooden Case
    Voltage: Customized Driven Type: Electric
    Warranty: 1year Control: PCL Touch Screen



    Water Bottle Filling Machine 6.57kw 5500kg , Water sachet filling machine







    Introduction:

    JIAYUAN CGF series mineral water filling machine and packaging machinery is a self-developed new product by our R&D department to meet the requirement of multi-usage demands for our customers. The mineral water filling machine is consisted of ringsing-filling-caping all together. It can fill mineral water, pure water and distill water etc. JIAYUAN CGF mineral water filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as mineral water filling machine. However, it can also be used for fill PET bottle with fruit juice and tea at high temperature by simply change tha valve. It can be connected with our others machines to form the mineral water filling production line.



    Feature

    • The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
    • Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine
    • Spring type rinsing catcher can wash both inside and outside of the bottle
    • High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling
    • Magnetic powered cap device ensures tightness and prevents damage of the caps
    • Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
    • Built-in safeguard mechanism ensures the safety of operator and machine.
    • High efficient air clean filter system ensures high sanitary requirements
    • Low overall machine noise
    • Self-lubricating system imported from America provides continuous smooth operation



    Water Bottle Filling Machine, Mineral Water Production Line, Bottling PlantWater Bottle Filling Machine, Mineral Water Production Line, Bottling Plant

    Technical Parameter

      CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12
    Productivity 2000-4000 BPH 4000-6000 BPH 8000-10000 BPH 12000-15000 BPH 16000-18000 BPH
    Rinsing Head 16 18 24 32 40
    Liquid Filling Head 12 18 24 32 40
    Capping Head 6 6 8 10 12
    Bottle Volume 350ml~2000ml±10ml 350ml~2000ml±10ml 350ml~2000ml±10ml 350ml~2000ml±10ml 350ml~2000ml±10ml
    Bottle Diameter φ50-90 mm φ50-90 mm φ50-90 mm φ50-90 mm φ50-90 mm
    Bottle Height 150-310 mm 150-310 mm 150-310 mm 150-310 mm 150-310 mm
    Filling Tolerance ±2% ±2% ±2% ±2% ±2%
    Cap Size 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps 28mm and 30mm PE Standard Caps
    Air Pressure 0.5 MPa 0.5 MPa 0.5 MPa 0.5 MPa 0.6 MPa
    Air Consumption 500 L/min 500 L/min 500 L/min 500 L/min 500 L/min
    Filling Water Consumption 1.5 m3/h 3 m3/h 6 m3/h 7.5 m3/h 9 m3/h
    Rinsing Water Consumption 0.5 m3/h 1 m3/h 2 m3/h 2.5 m3/h 3 m3/h
    Motor Power 3.5kW 3.5kW 4kW 7.5kW 7.5kW
    Voltage 380V 380V 380V 380V 380V
    Dimension (L×W×H) 2640×1520×2340mm (L×W×H) 2816×1883×2340mm (L×W×H) 3194×2054×2560mm (L×W×H) 3937×2846×2560mm (L×W×H) 4940×3755×3200mm
    Weight 2500kg 3000kg 5300kg 8000kg 12000kg
    Filling Principle Gravity Filling Gravity Filling Gravity Filling Gravity Filling Gravity Filling





    Rinsing part



    1) The rotary wheel is a fully AISI304 stainless steel welded structure.

    2) The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of AISI304 stainless steel, this bottle clamp is hygienic and durable.

    3) The high efficiency atomizing spray nozzle installed on bottle clamp incorporating technology from Spaying Systems Co. Ltd., is capable of cleaning any part of bottle inner wall, and also saves rinsing water

    4) Covering of bottle clamps and elevator are product of IGUS

    5) The rinse is driven by driving system positioned inside machine frame via gear transmission

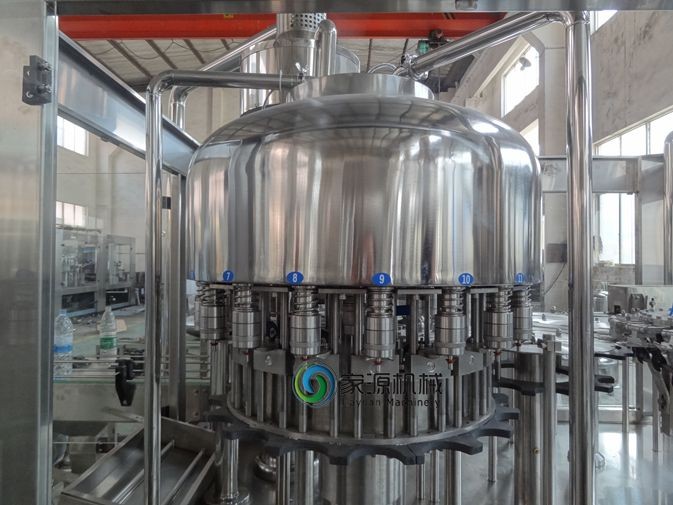

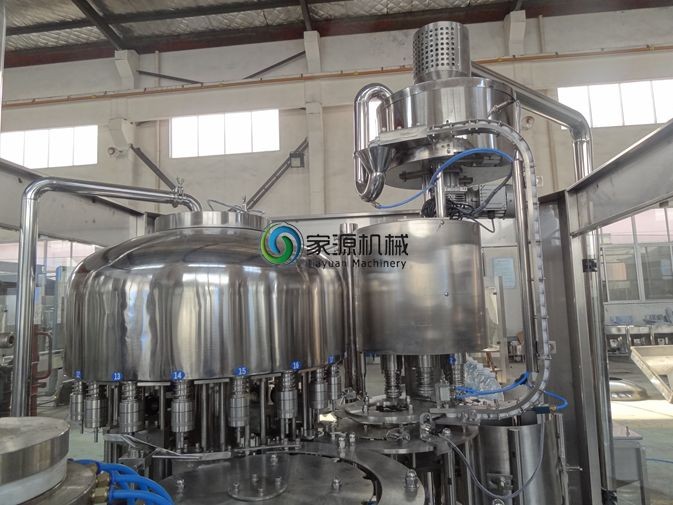

    Filling part



    1) The filler is designed and manufactured with application of Italy technology, providing

    hardware guarantee for securing product quality and reducing loss.

    2) Rotary wheel are fully made of stainless steel AISI304.

    3) Filling valves are designed and manufactured with German technology, made of AISI316L, featuring high filling accuracy and high filling speed.

    4) Bottles are raised and lowered by cam controlled lifting cylinder. Valve opening mechanism is actuated by air cylinder.

    5) All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free

    bearing.

    6) Hydraulic pump is float-ball controlled.

    7) The filler is driven by driving system positioned inside machine frame via gear transmission.

    Capping part





    1) The capper is most precise part in 3 in 1 filling machine, because the quality of machine ism important to running credibility and product quality.

    2) The cover track has the device to prevent the reversal cover from passing and pick out the reversal cover. Meanwhile the photoelectric switch can stop the machine automatically when there is no cover on the track, by which it can avoid bottle without cover effectively.

    3) It also has the bottle check-up switch. Together with cylinder on the joint of the cover track and cover lift, they can control the cover flow and stop it in case no bottle to reduce the quantity of cover.

    4) Highly effective acentric way for cap sorting to reduce the abrasion.

    5) It has the check-up device to control the cover lift.



    Water Bottle Filling Machine, Mineral Water Production Line, Bottling PlantWater Bottle Filling Machine, Mineral Water Production Line, Bottling Plant
