Automatic Lemon Pineapple Fruit Juice Bottle Filling Production Line

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE
Model Number:	RCGF

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	please inquiry
Packaging Details:	standard wooden case
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	100 sets per year

Contact Now

Detailed Product Description

Product Name:	Rinser Filler Capper	Filling Nozzle:	50
Max Capacity:	24000BPH	Suitable Bottle:	Plastic Bottle
Suitable Cap:	Plastic Thread Cap	Machine Material:	Stainless Steel SUS304
High Light:	Pineapple Juice bottle filling production line , Fruit Juice bottle filling production line , 50 nozzle Fruit Juice Filling Line

Complete Automatic Lemon Pineapple Fruit Juice Bottle Filling Production Line

Hot Fill Lines

We supply complete solution for the juice filling line.We provide different solutions for different products.

Every one of your products will have its optional solution.

With over 20 years of hot-filling experience, we continue to lead the industry with proven XINMAO Hot Fill

solutions worldwide.

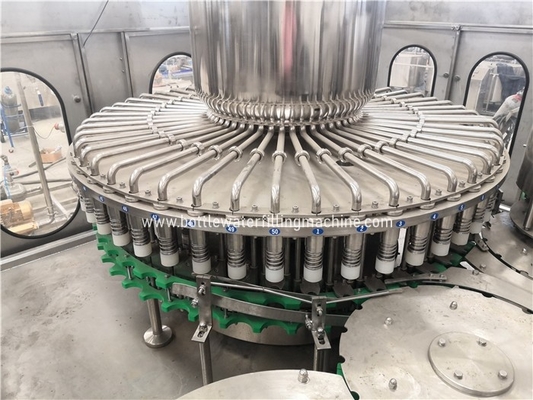

Automatic Lemon Pineapple Fruit Juice Bottle Filling Production Line 0

PET Bottle Beverage Filling Lines

This series of equipment is used for hot filling production of tea drinks, fruit juice drinks and other products.

This series is a combination of sterilization, filling and sealing. The design is scientific and reasonable, so

operate is simple. It is the preferred equipment for hot-filling drinks.

The filling temperature of this machine is 55-95ºC hot filling, It adopts suspension air conveyor. When change

the bottle, It only needs to adjust the conveying width, which is more efficient and labor-saving. Filling action is

smooth, fast, high precision,reliable sealing, low material loss and other functions, avoid secondary pollution of

materials effectively.

We can provide the folling complete line plants:

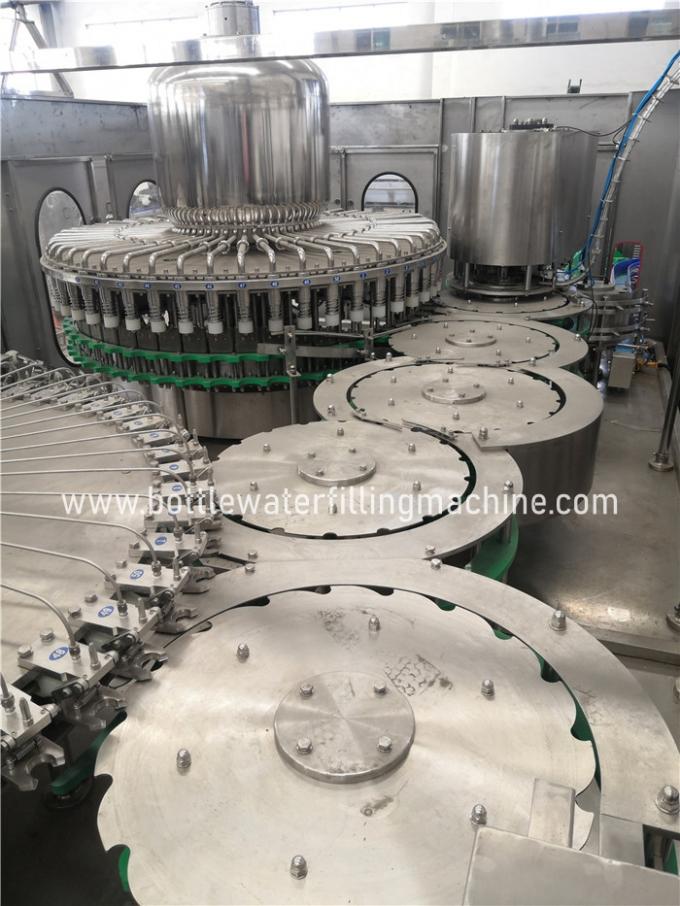

Automatic Lemon Pineapple Fruit Juice Bottle Filling Production Line 1

What can be produced?

Applicable products: Tea,fruit juice, etc.

Applicable container: PET bottles of various capacities and shapes

Filling system: gravity filling

Production capacity: 1000 bottles/hour-30000 bottles/hour

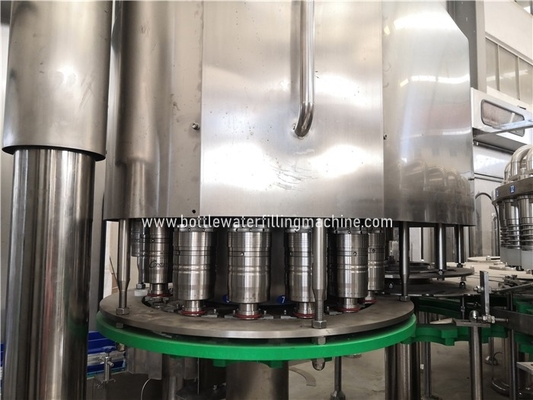

Automatic Lemon Pineapple Fruit Juice Bottle Filling Production Line 2

Product Paramenters

Model	Output	Power	Size	Weight
CGF8-8-3	2000 to 3000bph	3 Kw	1800X1500X2300MM	2500Kg
CGF16-12-6	3000 to 4000 bph	5 Kw	2200X1560X2300MM	3000 Kg
CGF18-18-6	5000 to 6000 bph	5 Kw	2250X1670X2300MM	3500 Kg
CGF24-24-8	8000 to 10000 bph	6 Kw	2800X1800X2300MM	5000 Kg
CGF32-32-10	12000 to 15000 bph	8 Kw	4300X3500X2300MM	7000 Kg
CGF40-40-12	15000 to 18000 bph	12 Kw	4600X3800X2300MM	10000 Kg
CGF50-50-12	18000 to 24000 bph	15 Kw	5000X4200X2300MM	12000 Kg
CGF60-60-15	25000 to 30000 bph	18 Kw	5500X4500X2300MM	15000 Kg

1. HOW TO ENSURE THE QUALITY?

● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have

accumulated professional processing methods over the past years.

● Each component before assembly needs strictly control by inspecting personnel.

● Each assembly is in charged by a master who has working experience for more than 5 years

●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory

2.THE AFTER-SALE SERVICE OF PAIMA MACHINE?

● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools

● After the commissioning, we will package the equipment by standard export package for shipment.

● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.

● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
