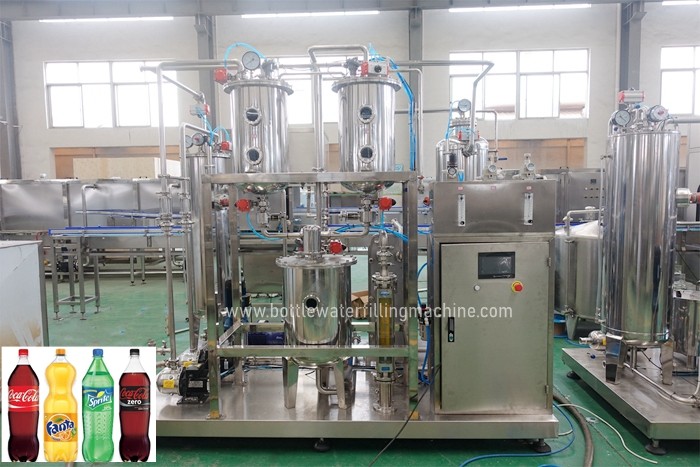

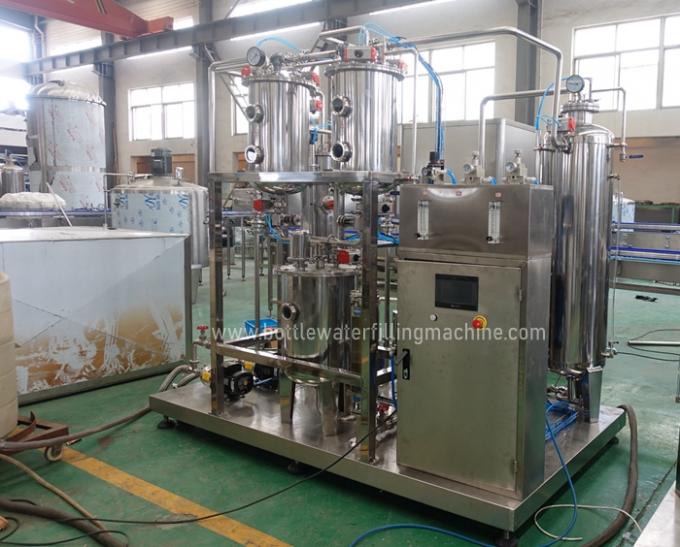

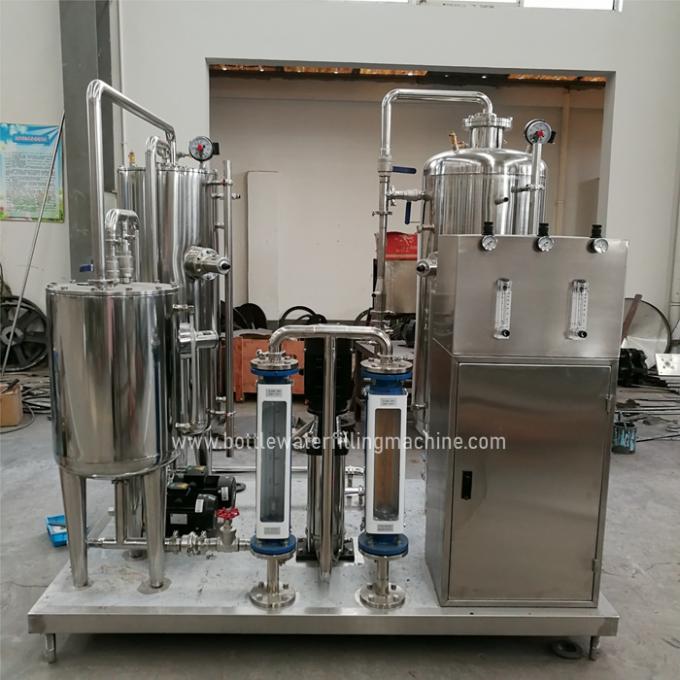

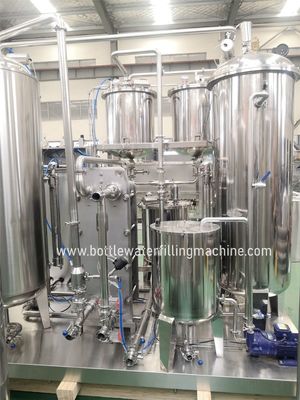

Carbonated Soft Drink Mixer / Mixing Machine

Home Products Carbonated Drink Filling Machine

Carbonated Soft Drink Mixer / Mixing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	JIAYUAN
Certification:	CE ISO
Model Number:	QHS

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	please inquire
Packaging Details:	standard wooden case
Delivery Time:	45 working days
Supply Ability:	50 sets

Contact Now

Detailed Product Description

Product Name:	Carbonated Drink Mixer	Function:	Mix CO2
Capacity:	1000-30000L	Material:	Stainless Steel SUS304
Power:	380V 50HZ 3PHASE	Final Products:	Cola, Soda, Sparkling Water
High Light:	SUS304 Carbonated Soft Drink Mixer , 380V Carbonated Soft Drink Mixer , Sparkling Water Carbonated Soft Drink Mixer

High quality carbonated soft drink mixer / mixing machine

This mixer is used to mix CO2 with water sugar, to produce all carboated drink,
like cola, energy drink, soda, sparkling water and so on.

Characteristics

QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology-static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and SEIMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for

mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.

Mixer machine is using injecting gas-water mixer is specially designed for soda and non-soda drinks such as lemonade, cola and juice, as well as for other soft drinks such as mineral water, grape juice, juice wine and apple juice.

In comparison with other domestic equipment of the same kind, it achieves functional completeness, great adaptability, a new structure, nice appearance, and high automation, action coordination, continuing production, good mixing and excellent electric control.

There are one tank type, three tanks, five tanks:

one tank
Carbonated Soft Drink Mixer / Mixing Machine 0
three tanks

five tanks

Automatic Carbonated Drink Mixer / Mixing Tank Benifits

(1) Be designed and made for improving the proportion of the water, syrup and carbon dioxide

(2) It adopts foreign advanced technology-static mixer to lighted water layer, increase carbonizing time, ensure the mixing

efficiency

(3) Adopting carbon dioxide backflow deoxidization, which can save carbon dioxide and deoxidize

(4) High quality water pump and SIEMENS electrical equipment and other parts make up a complete automatic control system

(5) It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages

(6) It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola and other soft and hard drinks


			MODEL
			QHS-1500
			QHS-3000
			QHS-6000
			QHS-8000
			QHS-10000


			Production capacity (KG/H)
			1500
			1500-3000
			4000-6000
			6000-8000
			8000-10000


			Regulation range of sugar&water mxing ratio
			1:3-1:10


			Gas content (CO2:H2O volume ratio)
			2.8
			3


			Mixing accuracy
			≤2%


			Chilled water entrance temperature
			0～5℃
			0～4℃


			Chilled water entrance pressure
			0.01～0.08MPa


			Syrup entrance temperature
			2～8℃


			Syrup entrance pressure
			0.01～0.08MPa


			Carbon Dioxide purity
			>99.9%


			Syrup tank working pressure
			0.01～0.09MPa


			Storage tank working pressure
			0.2～0.5MPa


			Motor total power (KW)
			1.1
			3.5
			5.1
			8.5
			11


			Dimension(mm)
			1030*1180*1930
			1650*1300*2000
			1900*1300*2250
			3200*2100*2500
			3800*2200*2750


			Weight(KG)
			600
			1300
			2000
			2800
			4800
