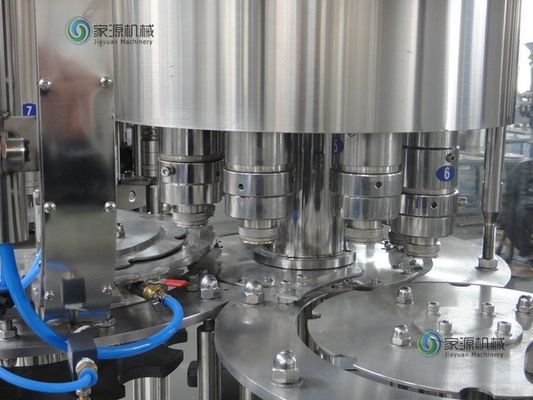

4 in 1 Aseptic 500ml PET Bottle Filling Machine With 40 Filling Head
Capacity: 15000 BPH@500ml bottle
Sterilizing water rinser, pure water rinser, filler, capper 4-in-1 monoblock
Fully automatic, no bottle no filling, no cap machine will stop.
CE, ISO certificate
Designed power supply: AC/380V/50HZ/3 PHASE
Automatic 15000BPH SUS304/316 4-in-1 DCGF40-40-40-12 Carbonated water bottling machine
This Carbonated Water Bottling Machine is used to fill PET bottle carbonated beverage such as Coca-Cola, Pepsi-Cola, Sprite, Seven-Up, gas containing alcohol/juice and so on.
This Carbonated Water Bottling Machine has the functions of bottle washing, carbonated beverage filling, and bottle capping. This design reduces the time of liquid contact with outside. It improves the sanitation condition, increase the production capacity and economic efficiency.
It adopts hanging type conveying bottle structure to make changing different bottle sizes with less time and more convenient.
This Carbonated Water Bottling Machine use high quality food grade stainless steel material. All the material contact with liquid is Stainless Steel 304 (& stainless steel 316L according to customer's demands).
The whole machine is equipped with advanced PLC controlling system. Key electric elements are from international well-known brand such as MITSUBISHI, OMRON, and SCHNEIDER.
This Carbonated Water Bottling Machine series can fill carbonated beverage from 2000bph to 20000bph.
This DCGF Carbonated beverage wash-filling-sealing 4-in-1 filling machine used to produce PET bottled carbonated beverages (soda) production, such as
Soda water, carbonated juice etc.
Sterilizing water washing No.
Pure water washing No.
Production Capacity(500ml) BPH=Bottles Per Hour
New designing filling valve, return gas and filling liquid are separate to ensure the filling materials is clean.
The beverage filling machine adopt advanced magnetic clutch screw lid and the torsion torque is adjustable, so screwing is safe and reliable.
High filling speed and mass flow rate, high precision of filling valve and control of liquids level is accurate and without loss.
Double washing machine can make the bottle be well cleaned.
Equipped with perfect CIP control loop and program and cleaning devices on the spot.
Adopt the bottle neck clamping technology, do not need to change the height of the bottle, just change the parts which are relevant to the bottle diameter, such as arc guide plate, poking wheel etc.
Adopting diaphragm adjust valve to control the inlet flow rate of liquids. It can keep the slight turbulence of liquids level in the solution barrel and ensure the accuracy in filling.
It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel.
It is not necessary to adjust the input height for exchanging bottle model.
Perfect protection system to overload.
Air control components are all adopted with SMC products made in Japan.
