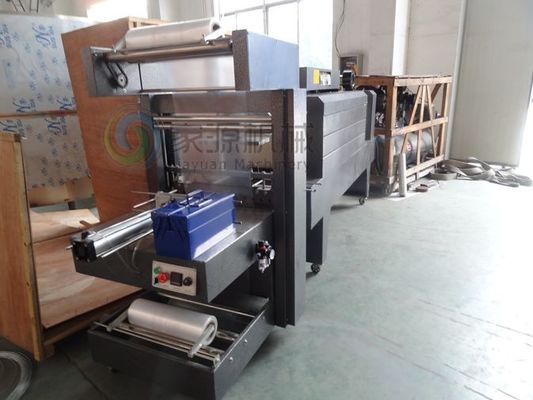

Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle

Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle

    • Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle
    • Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle
    • Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle
    • Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle
  • Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle

    Product Details:

    Place of Origin: China Mainland
    Brand Name: Jiayuan
    Certification: CE,SGS
    Model Number: WD –150

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T; L/C
    Supply Ability: 5 sets/month
    Contact Now
    Detailed Product Description
    Automatic Grade: Semi Automatic Bottle Type: Round Bottle|Flat Bottle
    Capacity: 15000BPH Driven Type: PLC|Electric
    Product Name: Shrink Packing Machine Shrinkage Film Material: PE|PVC|POF

    Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle​



    Quick Detail:



    1. Product: Semi automatic packing machine

    2. Model:WD-150A

    3. Main Material: SS304

    4. Production capacity: 15000bph(500ml)

    5. Usage: Packing machine

    6. Warranty: 1year free

    Semi automatic packing machine





    Description:



    Semi automatic packing machine

    Characteristics:

    1. This Shrink Wrapping Machine adopts imported world famous PLC automatic control. It has stable functions and precise control.

    2. It has automatic functions like conveying materials, unscrambling, shrinking and cooling&design finalizing flow.

    3. The film conveying adopts the famous brand transducer and three-layer heat insulation to save recourses.

    4. It uses the enhanced cooling and design finalizing passage which can make product packing finalize the design more quickly and easy to be stored and transported

    Detail of each machine

    · Frequency control, Secondary bottle transport device.

    · The whole set which are push bottle, heat sealing cutting adopt pneumatic structure.

    · Inductive switch control film length.

    · Touch screen, PLC control system advanced reliability of the equipment function.

    · Circular wind machine, resuare well-proportioned temperature of the shrink furnace.

    · Strong cooling system can reassure finalize the design quickly?

    · Heat-fast Teflon transport net, transport steady, high strength and stand wear and tear.

    · Frequency conversion timing net transportation structure.

    · The height of the conveyer belt can be made according to the user, adustable range±50mm

    ·  Bottle transport machine can satisfy the direction of the user, it can prolong and shorten

    · Pterygoid stainless iron heating system, durability.

    · Satisfy the bear storage rack device of the short duration for the product; assure consecutive work for the production line.

    Canada maintain: 5.7 inch touch screen, PLC control system.(can choose other brand)

    · One set Taiwan Airtac pneumatic element

    · Three sets Taiwan Taida transducer

    · Twelve pieces stainless and iron pterygoid heating pipe

    · Teflon transportation net which are produced by Sino-America cooperation.

    · Electrical machine by Shanghai and Beauty coperation, warm transmission by Zhejiang Taili.

    · Korea Ottonix photoelectric switch, proximity switch.

    · We can make Heat sealing sword cast aluminum heat appliance specially, well proportioned temperature and long lived.

    · Surface of the whole machine are plastic spraying, frame work adopt excellent carbon steel, the mainstay adopt stainless steel.

    · The length of bottle transport machine: 2600mm

    · Packed with wooden case and winded film separately.

    Technical parameter

    Sealing type

    sleeve sealing

    Power supply

    380V/50-60Hz/3phase

    Max product size

    420(L)*300(W)*320(H)mm

    Max Packing capacity

    20 packs per minute

    Film type

    single roll of printed polyethylene(PE) film

    Max film size

    630(width)*280mm(outer diameter)

    Power consumption

    20.5kW

    Tunnel oven size

    1800mm(L), entrance 600(W)*400(H)mm

    Tunnel conveyor speed

    variable,controlled by frequency converter,15m/min

    Tunnel conveyor

    chains with rotating silicon coated rods

    Working height

    800-850mm

    Air pressure

    ≤0.5MPa(5 bar)

    P L C

    SIEMENS S7

    Sealing system

    permanently heated seal bar coated with Teflon

    Operating interface

    Eview displayer

    Machine material

    carbon steel

    Weight

    1050kg



    Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle

    Semi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET BottleSemi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET BottleSemi Automatic PE Film Shrink Wrapping Machine 15000 BPH For PET Bottle





     Competitive Advantage:



    Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

    1. The company around 110 KM away from Shanghai, has convenient traffic.

    2. The company was established in 1999, has rich experience.

    3. We are an CE&SGS certified company.

    4. We can produce kind of filling&packing machine, such as

    1. Bottled water production line
    2. Carbonated soft drinks production line
    3. Hot-fill juice and tea production line
    4. 5 Gallon bottled water production line
    5. Water treatment machine and packing machine

    5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
